OVERVIEW
Think about projection technology in a whole new light! The NEC PX602WL is a powerful installation laser projector with a laser/phosphor light source that makes it perfect for all-new applications. This bundle includes th NP-36ZL zoom lens. With more consistent brightess, improved color fidelity, and tilt-free or portrait modes these projectors will deliver in new verticals such as retail, simulation, and theme park installations. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!
SPECIFICATIONS
Resolution
|
|
| Native |
WXGA 1280 x 800 |
|
| Maximum |
4K 4096 x 2160 |
|
|
| |
|
| Contrast Ratio (up to) |
10,000:1 with auto iris |
|
| Lamp Type |
Laser/Phosphor |
|
| Lamp Life (up to) |
20,000 hours |
|
| Screen Size (diagonal) |
50 to 300 in. / 1.27 to 7.62m |
|
| Projection Distance |
2.8 to 120.8 ft. / 0.9 to 36.8m |
|
| Projector Angle |
3.1 to 17.5° tele / 5.7 to 22.0° wide |
|
Lens
|
|
| Focus |
Power |
|
| Shift |
Mechanical +/-0.5 vertical, +/-0.15 horizontal |
|
|
|
| Keystone Correction |
+/- 40° horizontal, +/- 40° vertical |
|
Synchronization Range
|
|
| Horizontal (Analog/Digital) |
Analog: 15-100kHz, Digital: 15-153kHz |
|
| Vertical (Analog/Digital) |
Analog: 48-120Hz, Digital: 24-120Hz |
|
|
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA |
|
| Macintosh Compatibility |
Yes |
|

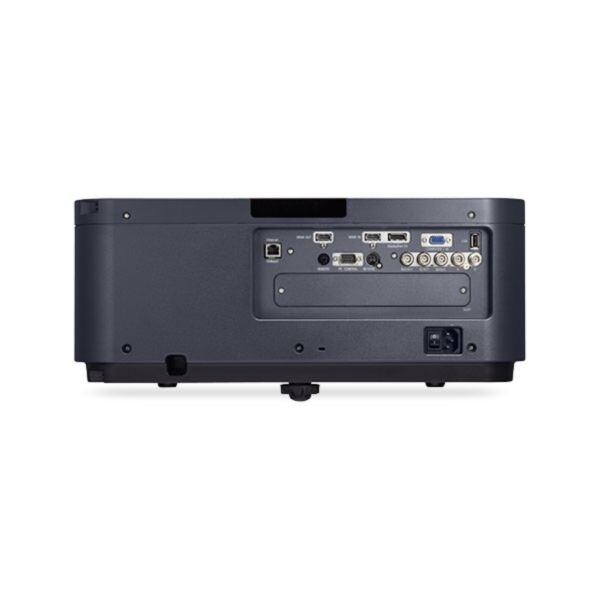

Input/Output Terminals
|
|
| RGB1(analog) |
VGA 15-pin D-sub |
|
| RGB2(analog) |
5-BNC |
|
| RGB3(digital) |
HDMI w/HDCP |
|
| RGB4(digital) |
DisplayPort w/HDCP |
|
| RGB5(digital) |
HDBaseT |
|
| Monitor out |
HDMI |
|
|
|
| External Control |
RS-232, IR, DDC/CI, USB |
|
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
|
| |
| Power Requirements |
100-240V AC, 50/60 Hz |
|
| Input Current |
6.8-2.5A |
|
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
590W / 460W / 4.15W / 0.28W |
|
| |
| Optional Lenses |
NP33ZL, NP34ZL, NP36ZL, NP37ZL, NP38ZL |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
19.1 x 22.6 x 8.5 in. / 484 x 575 x 217mm |
|
| Net Weight |
40.8 lbs. / 18.5 kg |
|
| Fan Noise |
39 dB normal / 34 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM |
|
| |
| Operating Temperature |
41-104°F / 5-40°C |
|
| Humidity |
20-80% non-condensing |
|
| Storage |
-14-122°F / -10-50°C |
|
| |
| 3 years (excluding consumables). First year Instacare Service. |
| |
- Automatic keystone correction
- Cornerstone
- Geometric Correction
- Auto power on
- ECO Mode technology
- Closed captioning
- Carbon savings meter
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
|
| |
- Remote control
- Batteries
- Power cord
- Built-in Lens cover
- User manual
- Quick Start Guide
- Product registration card
- Lens anti-theft screw
|
