OVERVIEW
The NEC P502HL-2 is the smallest footprint 5000 lumen installation projector with a laser/phosphor light source that makes it ideal for higher education classrooms, corporate boardrooms and government training rooms. With more consistent brightness, improved color fidelity, and tilt-free or portrait modes these projectors will deliver in new verticals such as retail, simulation, and theme park installations. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!
SPECIFICATIONS
| Display Technology |
DLP (0.66" DMD) |
|
| Light Output(Lumens) |
5000 normal |
|
Resolution
|
|
| Native |
1080p 1920 x 1080 |
|
| Maximum |
WUXGA 1920 x 1200 |
|
|
|
| Contrast Ratio (up to) |
15,000:1 with auto iris |
|
| Lamp Type |
Laser/Phosphor |
|
| Lamp Life (up to) |
20,000 hours |
|
| Screen Size (diagonal) |
30 to 300 in. / 0.76 to 7.6m |
|
| Throw Ratio |
1.24 to 2.1 |
|
| Projection Distance |
2.6 to 47.6 ft. / 0.8 to 14.5m |
|
| Projector Angle |
13.2 to 13.5° tele / 21.9 to 22.9° wide |
|
Lens
|
|
| Zoom |
1 to 1.7 |
|
| Focus |
Manual |
|
| F number, fnumber |
F=2.0, f=18.2 to 31.1mm |
|
| Shift |
Mechanical +0.62 vertical, +/-0.28 horizontal |
|
|
|
| Keystone Correction |
+/- 25° horizontal, +/- 30° vertical |
|
| |
Synchronization Range
|
|
| Horizontal (Analog/Digital) |
15-100 kHz |
|
| Vertical (Analog/Digital) |
50-120 Hz |
|
|
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA |
|
| Macintosh Compatibility |
Yes |
|

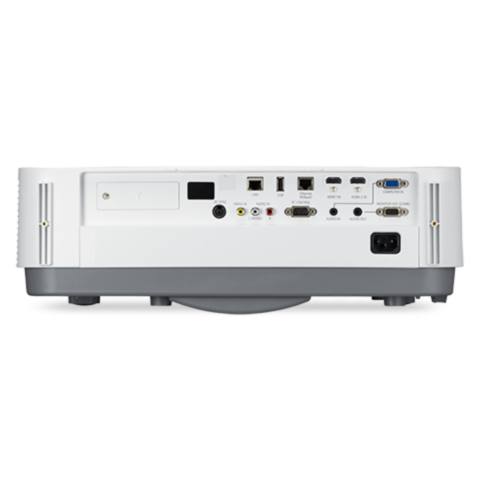

Input/Output Terminals
|
|
| RGB1(analog) |
VGA 15-pin D-sub |
|
| RGB2(digital) |
HDMI w/HDCP |
|
| RGB3(digital) |
HDMI w/HDCP |
|
| RGB5(digital) |
HDBaseT |
|
| Video 1 |
RCA |
|
| Monitor out |
VGA 15-pin D-sub |
|
| Audio out |
1/8 in. stereo (Variable audio out) |
|
|
|
| Audio |
20W speaker |
|
| External Control |
RS-232, IR, DDC/CI, USB |
|
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
|
| Networking |
RJ-45 Monitoring |
|
| |
| |
| Power Requirements |
100-240V AC, 50/60 Hz |
|
| Input Current |
5.7-2.3A |
|
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
464W / 362W / 2.1W / 0.5W |
|
|
| |
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
18.5 x 14.4 x 5.4 in. / 469 x 365 x 137mm |
|
| Net Weight |
19.4 lbs. / 8.8 kg |
|
| Fan Noise |
39 dB normal / 33 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM |
|
| |
| |
| Operating Temperature |
41-104°F / 5-40°C |
|
| Humidity |
20-80% non-condensing |
|
| Storage |
14-122°F / -10-50°C |
|
| |
| |
| Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange. |
| |
- Manual keystone correction
- Wireless LAN
- USB Viewer
- Auto power on
- ECO Mode technology
- Closed captioning
- Variable audio out
- Carbon savings meter
- Virtual Remote
- Sleep timer
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
|
| |
- Remote control
- Batteries
- Power cord
- RGB signal cable
- User manual
- Quick Start Guide
- Important Info
- Product registration card
- Security Stricker
|
