OVERVIEW
NEC’s 2800-lumen VE281X mobile projector is designed to provide high brightness for small-to-medium-sized businesses, education environments, corporate conference rooms and mobility applications where heavy ambient light is present but the space requires a small projector. This lightweight model is affordable with essential features, including 3D Ready technology, 3000:1 contrast ratio and a powerful7W speaker. Its automated technologies—from Auto Power On and quick startup/shutdown to a lamp life up to 6000 hours—make it an eco-friendly choice. The VE281X offers the Intelligent Driving Scheme (IDS2) for increased lamp life and contrast.
SPECIFICATIONS
| |
| Display Technology |
DLP (0.55" DMD) |
| |
| Light Output(Lumens) |
2800 normal / Eco = approx. 70% of normal mode |
| |
Resolution
|
|
|
| Native |
XGA 1024 x 768 |
| |
| Maximum |
UXGA 1600 x 1200 |
| |
|
| |
|
| Contrast Ratio (up to) |
3000:1 |
| |
| Lamp Type |
200W AC |
| |
| Lamp Life (up to) |
4000 hours normal / 6000 hours eco |
| |
| Screen Size (diagonal) |
33 to 300 in. / 0.84 to 7.6m |
| |
| Throw Ratio |
1.95 to 2.15 |
| |
| Projection Distance |
3.9 to 39.4 ft. / 1.2 to 12m |
| |
| Projector Angle |
12.7° tele / 14° wide |
| |
Lens
|
|
|
| Zoom |
1 to 1.1 |
| |
| Focus |
Manual |
| |
| F number, fnumber |
F=2.41 to 2.55, f=21.83 to 24mm |
| |
|
| |
|
| Keystone Correction |
+/- 40° |
| |
|
| |
| |
Synchronization Range
|
|
|
| Horizontal (Analog/Digital) |
15-100 kHz |
| |
| Vertical (Analog/Digital) |
50-120 Hz |
| |
|
| |
|
| Supported Video Standards |
NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| |
| SD/HD Video Signal Compatibility |
480p, 576i, 576p, 720p, 1080i |
| |
| PC Signal Compatibility |
SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA |
| |
| Macintosh Compatibility |
Yes |
| |

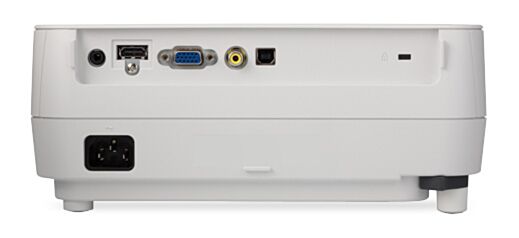

Input/Output Terminals
|
|
|
| RGB1(analog) |
VGA 15-pin D-sub, Component video using ADP-CV 1E |
| |
| RGB3(digital) |
HDMI |
| |
| Video 1 |
RCA |
| |
| Audio 1 |
1/8 in. stereo |
| |
|
| |
|
| Audio |
7W speaker |
| |
| External Control |
RS-232, IR |
| |
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
| |
|
| |
| |
| Power Requirements |
100-240V AC, 50/60 Hz |
| |
| Input Current |
2.7A |
| |
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
261W / 213W / 0.4W |
| |
|
| |
| |
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| |
| Dimensions (WxDxH) |
10.2 x 9.7 x 3.5 in. / 260 x 247 x 89mm |
| |
| Net Weight |
5.1 lbs. / 2.3 kg |
| |
| Fan Noise |
35 dB normal / 33 dB eco |
| |
| Regulations |
USA UL60950-1 FCC Part 15 Class B, Canada CSA60950-1, NOM |
| |
|
| |
| |
| Operating Temperature |
41-104°F / 5-40°C |
| |
| Storage |
-4-122°F / -20-50°C |
| |
|
| |
| |
| 4 years of InstaCare (next business day exchange) including the lamp for 4 years/4000 hours |
| |
- AutoSense
- Built-in wall color correction
- Advanced AccuBlend
- Kensington lock slot
- Image magnification
- Auto Power On
- Sleep timer
- Closed Captioning
- Virtual Remote
- ECO Mode technology
- Discreet source keys
- Direct power-off
- BrilliantColor
- Carbon savings meter
- 3D ready
|
| |
- Remote control
- Batteries
- Power cord
- RGB signal cable
- User manual
- Quick Start Guide
- Product registration card
|
