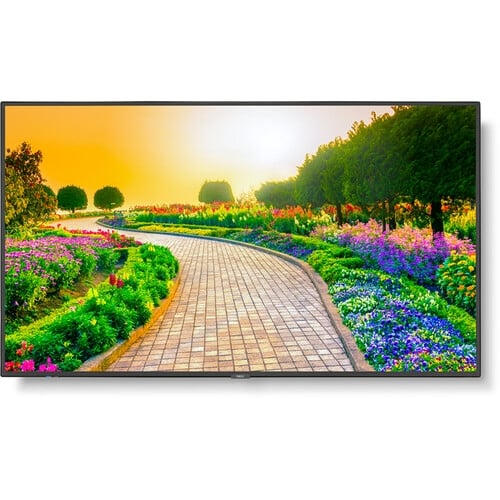

NEC MultiSync 43-inch 4K PCAP Interactive Flat Panel – M431 PCAP
The NEC MultiSync M431 PCAP is a 43-inch 4K UHD interactive flat panel with projected capacitive (PCAP) touch for up to 20 simultaneous touches from a finger or passive stylus. It has an edge-to-edge flush front, 500 nits brightness and 24/7 rated operation. Procure.ae supplies it in the UAE.
The M431 PCAP has a 43-inch IPS panel with edge LED backlighting at a native 3840 x 2160 resolution, 500 nits brightness measured without glass, a default contrast ratio above 8,000:1 and 178° viewing angles. The panel refresh rate is 60 Hz with an 8 ms response time and 10-bit colour depth. PCAP touch supports up to 20 touches with a finger or conductive passive stylus, with ±1.5 mm accuracy and a 6H hardness surface. The flush edge-to-edge front has no bezel and is rated IP5x at the front.
The touch layer works with Android, Linux, Raspberry Pi and Windows over USB-HID. Inputs are two HDMI and one DisplayPort, and the display accepts Intel Smart Display Modules (up to 45 W) and a Raspberry Pi Compute Module 4. PiP and PbP modes include triple-split and quad-split layouts. Control options include PJLink, SNMP, HDMI CEC, Crestron Connected and AMX NetLinx, with NaViSet Administrator 2 for remote management. It mounts on a 300 x 300 mm VESA pattern.
Key features
Specifications
| Compatibility | Android, Linux, Raspberry Pi, Windows. Touch via finger or conductive passive stylus over USB-HID; Windows Ink not supported |
| Key Features | PCAP touch, 20 touches, finger and passive stylus input, 500 nits, 24/7 operation, flush edge-to-edge front, Intel SDM and Raspberry Pi CM4 slots, NaViSet Administrator 2 management |
| Model | M431 PCAP |
| Type | Interactive Flat Panel |
| What's in the Box | Display, HDMI cable, USB cable, power cable, remote control with 2 x AAA batteries, setup manual |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED backlight |
| Bezel Size | Edge-to-edge flush design (no bezel) |
| Brightness | 500 nits (without glass) |
| Color Depth | 10-bit |
| Contrast Ratio | 8,000:1 (default) |
| Orientation | Landscape, portrait, face-up |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 43 inch |
| Touch Accuracy | ±1.5 mm |
| Touch Points | 20-point multi-touch |
| Touch Technology | PCAP |
| Viewing Angle | 178° horizontal / 178° vertical |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH |
| Audio In | Digital audio via HDMI and DisplayPort |
| Audio Out | 3.5 mm jack × 1 |
| DisplayPort | DisplayPort In × 1 (HDCP) |
| Speaker Output | 10 W + 10 W (integrated) |
| Ethernet | LAN 100 Mbit × 1 |
| Expansion | Intel Smart Display Module (SDM) slot, Large and Small, up to 45 W; Raspberry Pi Compute Module 4 slot |
| HDMI Inputs | HDMI In × 2 (HDCP) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Protocols | AMX NetLinx, ASCII commands, Crestron Connected, HDMI CEC, HTTP browser, PJLink, SNMP |
| Serial Port | RS-232C × 1 |
| USB Ports | USB 2.0 (MediaPlayer) × 1 |
| Power Consumption | 80 W (shipment setting) |
| Standby Power | < 0.5 W; < 2 W (networked standby) |
| Dimensions | 1003.4 x 595.1 x 74.42 mm |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| Shipping Dimensions | 1120 x 700 x 203 mm |
| Shipping Weight | 30 kg |
| Surface Protection | 6H surface hardness |
| VESA Mount | 300 x 300 mm (M6, FDMI) |
| Weight | 24.8 kg |
| Certifications | CE, EAC, RoHS, ENERGY STAR 8.0 |
| IP Rating | IP5x (front), IP2x (back) |
| Warranty | 3 years including backlight |
