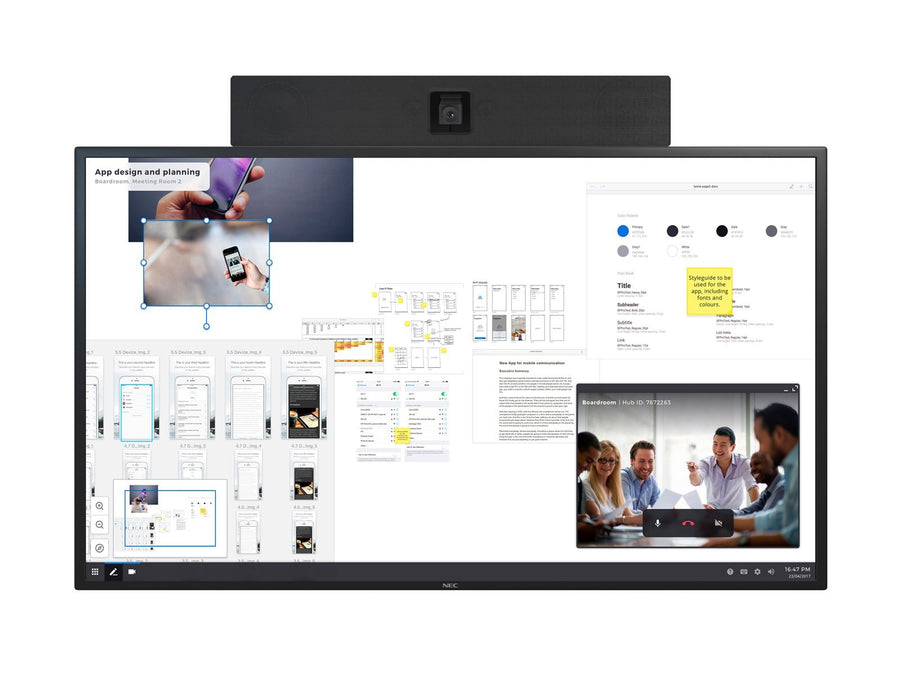

NEC InfinityBoard 55-inch Interactive Flat Panel
The NEC 55-inch InfinityBoard is an interactive flat panel for huddle spaces, with a 3840 x 2160 (4K UHD) InGlass touch display, 20-point multi-touch and an OPS slot-in PC running Windows 10 Professional. The model is discontinued, so Procure.ae can confirm current availability in the UAE or recommend a current model.
The InfinityBoard offers a 4K UHD display with 500 nits typical brightness, a 4,000:1 typical contrast ratio and a 6 ms typical grey-to-grey response time. Its InGlass touch supports real multi-touch of up to 20 touches, with an accuracy of under 1 mm, using finger, glove or stylus input of 2 mm or more. The integrated camera outputs HD 720p at 30 fps with 3x lossless digital zoom, and a four-port USB 3.0 hub connects peripherals. The manufacturer lists a 3-year warranty that includes the backlight.
The manufacturer describes the InfinityBoard as designed for huddle spaces that host smaller groups, easily accommodating up to six people. Its OPS slot-in PC runs Windows 10 Professional on an Intel Core i7 processor with 8 GB RAM and a 128 GB SSD, and the panel supports native multi-touch on Windows 7 to 11, Linux and Android. It is VESA 400 x 400 mm mountable, and the manufacturer lists a trolley among its accessories for moving the unit between rooms.
Key features
Specifications
| Key Features | 20-point multi-touch, InGlass touch, integrated camera and microphone, OPS slot-in PC, four USB 3.0 ports, 10 W + 10 W speakers |
| Model | 55-inch InfinityBoard |
| Type | Interactive Flat Panel |
| What's in the Box | Display, OPS slot-in PC, collaboration soundbar, 2 styluses, remote control, DisplayPort cable, USB cables, cable clamps |
| Aspect Ratio | 16:9 |
| Bezel Size | 18.4 mm |
| Brightness | 500 nits |
| Camera | Huddly ultra-wide camera, HD 720p at 30 fps, 3x digital zoom |
| Contrast Ratio | 4,000:1 |
| Panel Technology | S-PVA |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 6 ms |
| Screen Size | 55 inch |
| Touch Accuracy | < 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | ≤ 15 ms |
| Touch Technology | InGlass |
| Viewing Angle | 178° horizontal / 178° vertical |
| Operating System | Windows 10 Professional (OPS PC); native touch on Windows 7-11, Linux, Android |
| Processor | Intel Core i7-7820EQ, 4 cores, 3 GHz base (3.7 GHz turbo) |
| RAM | 8 GB |
| Storage | 128 GB |
| Speaker Output | 10 W + 10 W (integrated) |
| Bluetooth | Bluetooth 4.2 |
| OPS Slot | Open Pluggable Specification (OPS) slot |
| Ports | HDMI In × 4, DisplayPort In × 1, DVI-D In × 2, USB 3.0 × 4 hub, LAN 100 Mbit, RS232 |
| Wi-Fi | Dual-band 802.11ac |
| Power Consumption | 162 W (Eco setting) |
| Standby Power | < 0.5 W |
| Dimensions | 1284.8 x 877.3 x 86.1 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm |
| Weight | 45.7 kg (without stand) |
| Certifications | CE, EMC Class B, RoHS |
| IP Rating | IP40 (front); IP20 (back) |
| Warranty | 3 years |
