NECInteractive Flat PanelsSKU 86-inch InfinityBoard 2.0

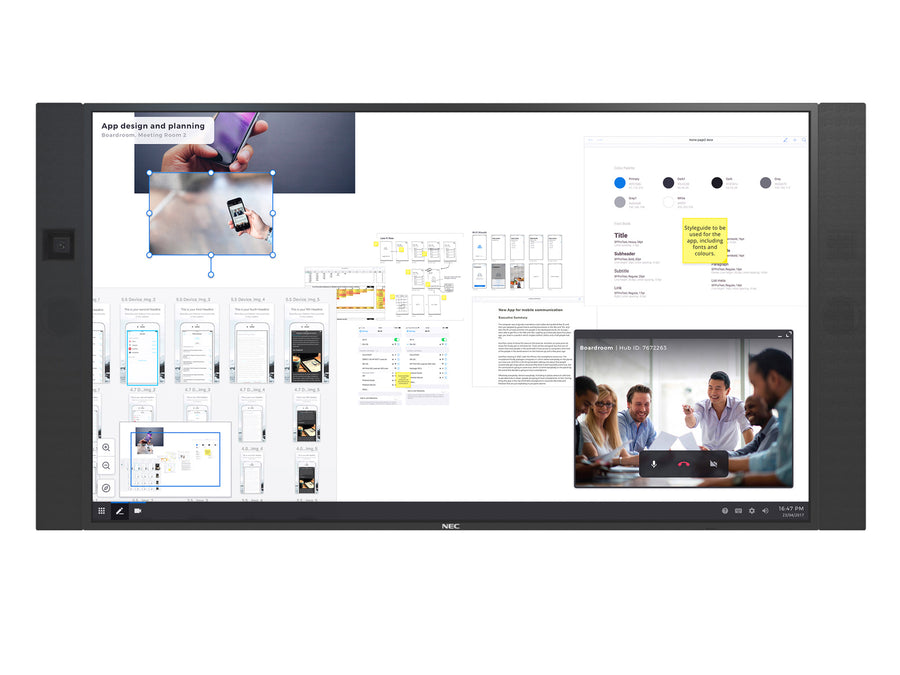

NEC InfinityBoard 2.0 86-inch Interactive Flat Panel
The NEC 86-inch InfinityBoard 2.0 is a large-format interactive collaboration display for think tanks and multi-presenter sessions. It combines a 3840 x 2160 IPS panel, 20-point InGlass touch and a Huddly GO 720p camera, with an OPS slot-in PC running Windows 10 Professional. Procure.ae supplies the NEC 86-inch InfinityBoard 2.0 across the UAE.
The 86-inch InfinityBoard 2.0 uses a 3840 x 2160 (4K UHD) IPS panel with 500 nits brightness (350 nits at the shipment setting) and a 1,200:1 typical contrast ratio. InGlass touch supports real multi-touch up to 20 touches with less than 1 mm accuracy, for finger, glove and stylus input. The slot-in PC uses an Intel Core i7-7820EQ with 8 GB of DDR4 RAM, a 128 GB SSD and Windows 10 Professional. The Huddly GO camera outputs 720p at 30 fps with a 150-degree diagonal viewing angle, and the display draws 242 W in the shipping setting.
The 86-inch model suits large canvases, think tanks and sessions with multiple presenters and remote participants. Native multi-touch works with Windows 7-11, Linux and Android, and the open platform is not restricted to a particular video conferencing app. Wall mounting uses 400 x 400 mm or 600 x 400 mm FDMI patterns with M8 holes. Compared with the 2.1 version, this model uses the 720p Huddly GO camera instead of the 1080p Huddly IQ camera.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (350 nits at shipment sett...
Touch Technology
InGlass
- 4K UHD IPS display
- 20-point InGlass touch
- Huddly GO camera
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS display
3840 x 2160 resolution with 500 nits brightness and 10-bit colour.
02
20-point InGlass touch
Real multi-touch up to 20 touches with under 1 mm accuracy.
03
Huddly GO camera
720p output at 30 fps with a 150-degree diagonal viewing angle and 3x digital zoom.
04
Side-mounted speakers
Rated impedance of 8 ohms with a frequency response of 70 Hz to 15 kHz.
05
OPS slot-in PC
Intel Core i7 with 8 GB RAM, 128 GB storage and Windows 10 Professional.
06
Dual-band Wi-Fi
Intel Wireless-AC 8260 with 802.11ac support.
07
Room connectivity
Three HDMI and two DisplayPort inputs, with RS232 and LAN control.
08
Energy efficiency
ECOMode, local dimming and a carbon savings meter, with Energy Efficiency Class B.
Specifications
38 specificationsGeneral
Key Features20-point InGlass touch, Huddly GO 720p camera, side-mounted speakers, OPS slot-in PC, Windows 10 Professional, dual-band Wi-Fi, Energy Efficiency Class B, RS232 and LAN control
Model86-inch InfinityBoard 2.0
TypeInteractive Flat Panel
What's in the BoxDisplay, OPS slot-in PC, Huddly GO camera, side-mounted speakers, 2 stylus pens, remote control, DisplayPort cable, USB cables, power cable, user manual
Display
Aspect Ratio16:9
Brightness500 nits (350 nits at shipment setting)
CameraHuddly GO, 720p at 30 fps, 150 degrees diagonal viewing angle
Color Depth10-bit (1.073 billion colours)
Contrast Ratio1,200:1 (typical)
OrientationLandscape or portrait
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical, grey-to-grey)
Screen Size86 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time<= 15 ms
Touch TechnologyInGlass
Viewing Angle178 degrees horizontal / 178 degrees vertical
Performance
Operating SystemWindows 10 Professional (slot-in PC)
ProcessorIntel Core i7-7820EQ, 4 x 3 GHz (up to 3.7 GHz turbo)
RAM8 GB DDR4
Storage128 GB
Audio
Speaker TypeSide-mounted speakers
Connectivity
OPS SlotOpen pluggable specification (NEC / Intel OPS)
PortsHDMI In x 3, DisplayPort In x 2, DisplayPort Out x 1, USB 3.0 hub x 4, USB Type-B x 1, RS232 x 1, LAN 100 Mbit x 1, 3.5 mm audio in and out, OPS slot
Wi-Fi802.11ac dual band (Intel Wireless-AC 8260)
Power
Power Consumption242 W (shipping setting)
Standby Power< 0.5 W (power saving); < 2 W (networked standby)
Physical
Dimensions2192 x 1142 x 86 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm and 600 x 400 mm (FDMI), M8
Weight91.7 kg
Compliance
CertificationsCE, EAC, EMC Class B, FCC, RCM, REACH, RoHS, SASO, UL/C-UL
IP RatingIP5x (front), IP2x (back)
Warranty3 years including backlight; optional 4th and 5th year extension
Downloads
Manufacturer documents for the NEC InfinityBoard 2.0 86-inch Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – 86-inch InfinityBoard 2.0
- Brochure – NEC (covers 96 models)
- User manual – InfinityBoard
- Drawing – InfinityBoard
- Drawing – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
Questions
Can’t find your answer? Ask on WhatsApp
What room size suits the NEC 86-inch InfinityBoard 2.0?
The manufacturer describes the 86-inch model as suited to think tanks and anywhere creativity needs a big canvas. Its 16:9 screen measures 2192 x 1142 x 86 mm without stand and weighs 91.7 kg, so confirm the wall or trolley load before installation.
Does the InfinityBoard 2.0 86-inch include a camera?
Yes. It includes a Huddly GO video conferencing camera with 720p output at 30 fps and a 150-degree diagonal viewing angle. The 2.1 model uses the Huddly IQ camera with 1080p output instead.
Is it compatible with my video conferencing software?
Yes. The OPS slot-in PC runs Windows 10 Professional, and the open platform is not restricted to any particular software, video conferencing app or infrastructure. Native multi-touch supports Windows 7-11, Linux and Android.
Can it be wall mounted, and what mounts are available?
Yes. It supports 400 x 400 mm and 600 x 400 mm FDMI patterns with M8 holes. The manufacturer lists BalanceBox650 and PDW T XL-2 wall mounts and PD02MHA and PD03MHA trolleys for this model. Procure.ae delivers and installs across the UAE.
What ports and control connections does it have?
It has three HDMI inputs, two DisplayPort inputs, a DisplayPort output with loop-through, RS232 and LAN 100 Mbit control ports, and a remote control input on a 3.5 mm jack. A Compute Module slot is also fitted.
Can I buy the 86-inch InfinityBoard 2.0 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
