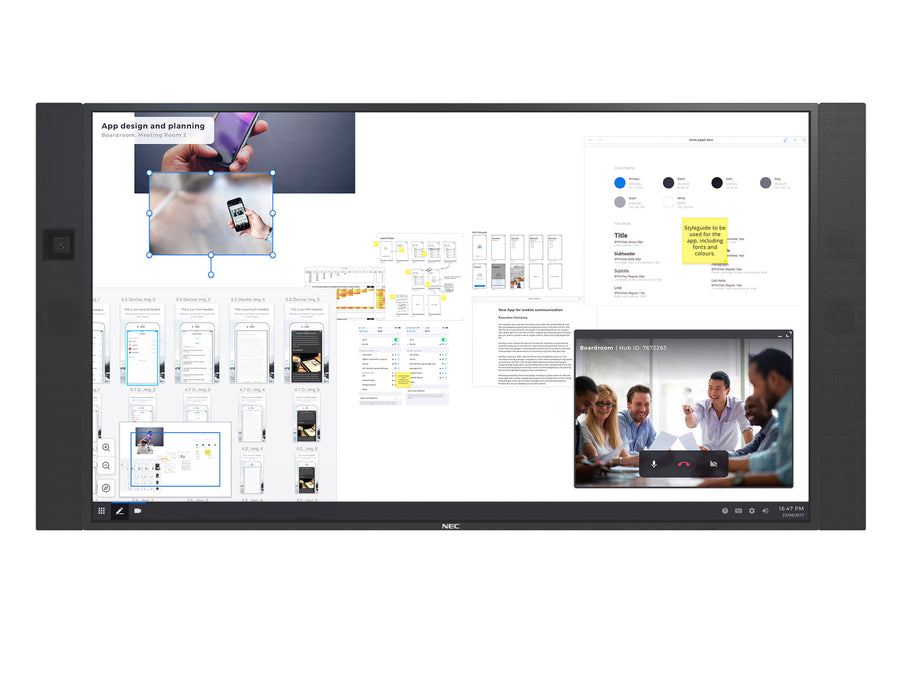

NEC InfinityBoard 2.0 75-inch Interactive Flat Panel
The NEC 75-inch InfinityBoard 2.0 is an interactive collaboration display for meetings with multiple presenters and large groups. It combines a 3840 x 2160 IPS panel, 20-point InGlass touch and a Huddly GO camera, with an OPS slot-in PC running Windows 10 Professional. Procure.ae supplies the NEC 75-inch InfinityBoard 2.0 across the UAE.
The 75-inch InfinityBoard 2.0 uses a 3840 x 2160 (4K UHD) IPS panel with 500 nits brightness (350 nits at the shipment setting) and a 1,200:1 typical contrast ratio. InGlass touch supports real multi-touch up to 20 touches with less than 1 mm accuracy, for finger, glove and stylus input. The slot-in PC uses an Intel Core i7 with 8 MB cache, 8 GB of DDR4 RAM, a 128 GB SSD and Windows 10 Professional. The Huddly GO camera outputs 720p at 30 fps with a 150-degree diagonal viewing angle and 3x lossless digital zoom.
The 75-inch model fits meeting rooms where several presenters share one screen or where remote participants join a large group. Native multi-touch works with Windows 7-11, Linux and Android, and the open platform is not restricted to a particular video conferencing app. Wall mounting uses 400 x 400 mm or 600 x 400 mm FDMI patterns with M8 holes. Compared with the 2.1 version, this model uses the 720p Huddly GO camera instead of the 1080p Huddly IQ camera.
Key features
Specifications
| Key Features | 20-point InGlass touch, Huddly GO 720p camera, side-mounted speakers, OPS slot-in PC, Windows 10 Professional, dual-band Wi-Fi, Bluetooth 4.2, RS232 and LAN control |
| Model | 75-inch InfinityBoard 2.0 |
| Type | Interactive Flat Panel |
| What's in the Box | Display, OPS slot-in PC, Huddly GO camera, side-mounted speakers, 2 stylus pens, remote control, DisplayPort cable, USB cables, power cable, user manual |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits (350 nits at shipment setting) |
| Camera | Huddly GO, 720p at 30 fps, 150 degrees diagonal viewing angle |
| Color Depth | 10-bit (1.073 billion colours) |
| Contrast Ratio | 1,200:1 (typical) |
| Orientation | Landscape or portrait |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (typical, grey-to-grey) |
| Screen Size | 75 inch |
| Touch Accuracy | < 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | <= 15 ms |
| Touch Technology | InGlass |
| Viewing Angle | 178 degrees horizontal / 178 degrees vertical |
| Operating System | Windows 10 Professional (slot-in PC) |
| Processor | Intel Core i7, 8 MB cache, 4 x 3 GHz |
| RAM | 8 GB DDR4 |
| Storage | 128 GB |
| Speaker Type | Side-mounted speakers |
| Bluetooth | Bluetooth 4.2 |
| OPS Slot | Open pluggable specification (NEC / Intel OPS) |
| Ports | HDMI In x 3, DisplayPort In x 2, DisplayPort Out x 1, USB 3.0 hub x 4, USB Type-B x 1, RS232 x 1, LAN 100 Mbit x 1, 3.5 mm audio in and out, OPS slot |
| Wi-Fi | 802.11ac dual band (Intel Wireless-AC 8260) |
| Power Consumption | 167 W (shipping setting) |
| Standby Power | < 0.5 W (power saving); < 2 W (networked standby) |
| Dimensions | 1944.6 x 1003 x 86 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm and 600 x 400 mm (FDMI), M8 |
| Weight | 80.3 kg |
| Certifications | CE, EAC, EMC Class B, FCC, RCM, REACH, RoHS, UL/C-UL |
| IP Rating | IP5x (front), IP2x (back) |
| Warranty | 3 years including backlight; optional 4th and 5th year extension |
