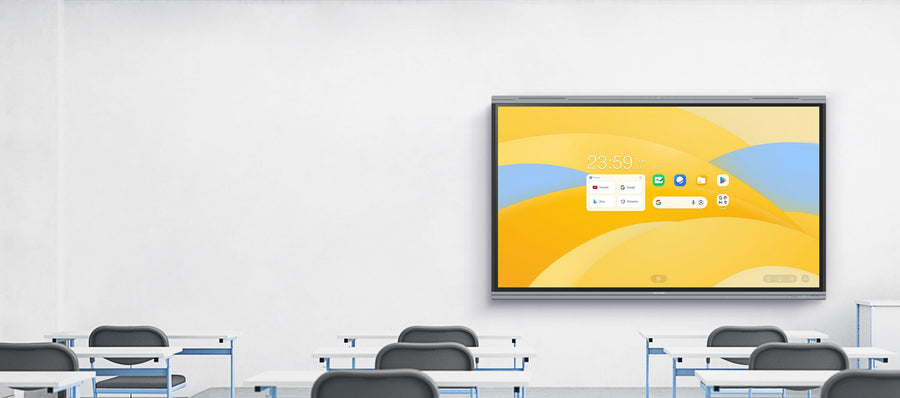

MAXHUB U3 Series 86-inch 4K Interactive Flat Panel – U8630

The MAXHUB U8630 is an 86-inch 4K UHD interactive flat panel for classrooms and collaborative learning. It runs Android 13 with MAXHUB EDU OS V4.0, holds Google EDLA certification, and has a 50-point infrared touch surface and an 8-microphone array. Procure.ae supplies the MAXHUB U8630 across the UAE.

The U8630 has a 3840 x 2160 VA panel with 500 nits brightness, 5,000:1 typical contrast and colour accuracy of ΔE ≤1.5. Its infrared touchscreen supports 50 touch points with ±0.5 mm accuracy, response time of 2.5 ms or less and writing height of 1 mm or less. The octa-core processor has a 6 TOPS NPU, 8 GB RAM and 64 GB storage. The 8-microphone array picks up voices from 0 to 10 m, and the 2.2-channel speakers are rated at 2×8 W + 2×18 W output.

The U8630 suits large classrooms, collaborative learning spaces and meeting rooms that use Google apps and accounts. Four HDMI inputs, a DisplayPort input and two USB Type-C ports connect laptops and other sources, and the front USB-C port supplies up to 100 W PD. Optional OPS modules and the UC W31 camera extend the unit. The 75-inch U7530 draws 320 W typical, while this 86-inch model draws 375 W.
