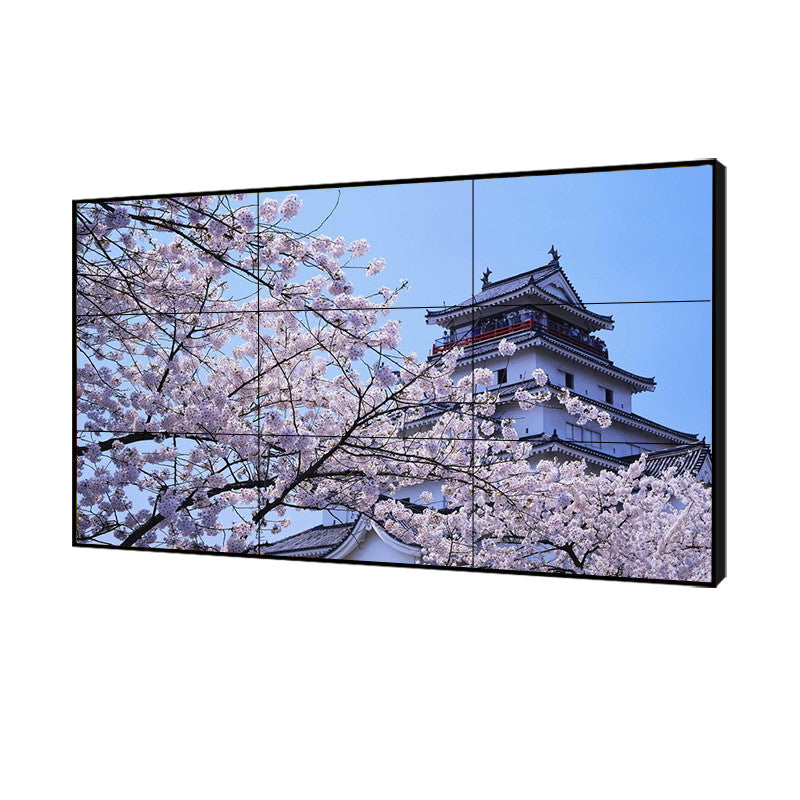

Marvel 55-inch 1.8mm LCD Video Wall Display – MPJ55LHX18

Marvel 55-inch 1.8mm LCD Video Wall Display – MPJ55LHX18

The Marvel MPJ55LHX18 is a 55-inch LCD video wall display with a 1.8mm splice bezel, 1920 x 1080 resolution and 500 nits brightness. It has 178-degree viewing angles for indoor video walls. Procure.ae, an authorised reseller, supplies the MPJ55LHX18 across the UAE, with delivery and installation.

The MPJ55LHX18 uses a 55-inch LG panel with a 1.8mm splice bezel and a 16:9 aspect ratio, so units can be arranged into a larger display wall. Resolution is 1920 x 1080 with 8-bit colour, which gives 16.7 million colours. Brightness is 500 nits with a 1,100:1 contrast ratio, and both horizontal and vertical viewing angles are 178 degrees. Response time is 6 ms, and the manufacturer rates the life at more than 60,000 hours.

It suits indoor installations where people view the wall from wide angles, such as lobbies, meeting areas and showrooms. Its connections include HDMI, DVI and VGA, plus S-video, composite video, an audio input and RS-232 control. Power is 230 W maximum with 3 W standby, and the weight is 3.5–4.0 kg. The manufacturer's specifications do not state VESA mounting, so Procure.ae can confirm the mounting details before a quote is issued.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
Weight
3.5–4.0 kg

Key features

01
1.8mm splice bezel
A narrow bezel for joining units into a video wall.
02
Full HD at 16:9
1920 x 1080 resolution at a 16:9 aspect ratio.
03
500-nit brightness
Rated at 500 nits with a 1,100:1 contrast ratio.
04
178-degree viewing angle
Rated at 178 degrees horizontal and vertical.
05
6 ms response time
Response time is rated at 6 ms.
06
Multiple inputs
HDMI, DVI, VGA, S-video, composite video and audio input.
07
RS-232 control
Control signal input and loop-out on an RJ45 connector.
08
Long rated life
The manufacturer rates the life at more than 60,000 hours.

Specifications

General
ApplicationIndoor
Key Features1.8 mm splice bezel, Full HD 16:9, 500 nits, 178-degree viewing angle, RS-232 control, rated life over 60,000 hours
ModelMPJ55LHX18
TypeVideo Wall Display
Display
Aspect Ratio16:9
Bezel Size1.8 mm
Brightness500 nits
Color Depth8-bit (16.7M colours)
Contrast Ratio1,100:1
Display TypeLCD
Resolution1920 x 1080 (Full HD)
Response Time6 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI × 1, DVI × 1, VGA × 1, S-video × 1, composite video, audio input, RS-232 control
Power
Power Consumption230 W (maximum)
Standby Power3 W or less
Physical
Dimensions1215.3 x 686.1 x 131 mm
Operating Humidity20% to 80% RH
Operating Temperature-30 to 60 °C (with air conditioning)
Weight3.5–4.0 kg
Compliance
CertificationsCE, FCC, RoHS
Country of OriginChina
