Marvel 49-inch 1.8mm LCD Video Wall Display – MPJ49LHX18 — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Marvel · MPJ49LHX18 · Video Wall

Marvel 49-inch 1.8mm LCD Video Wall Display – MPJ49LHX18

Marvel 49-inch 1.8mm LCD Video Wall Display – MPJ49LHX18

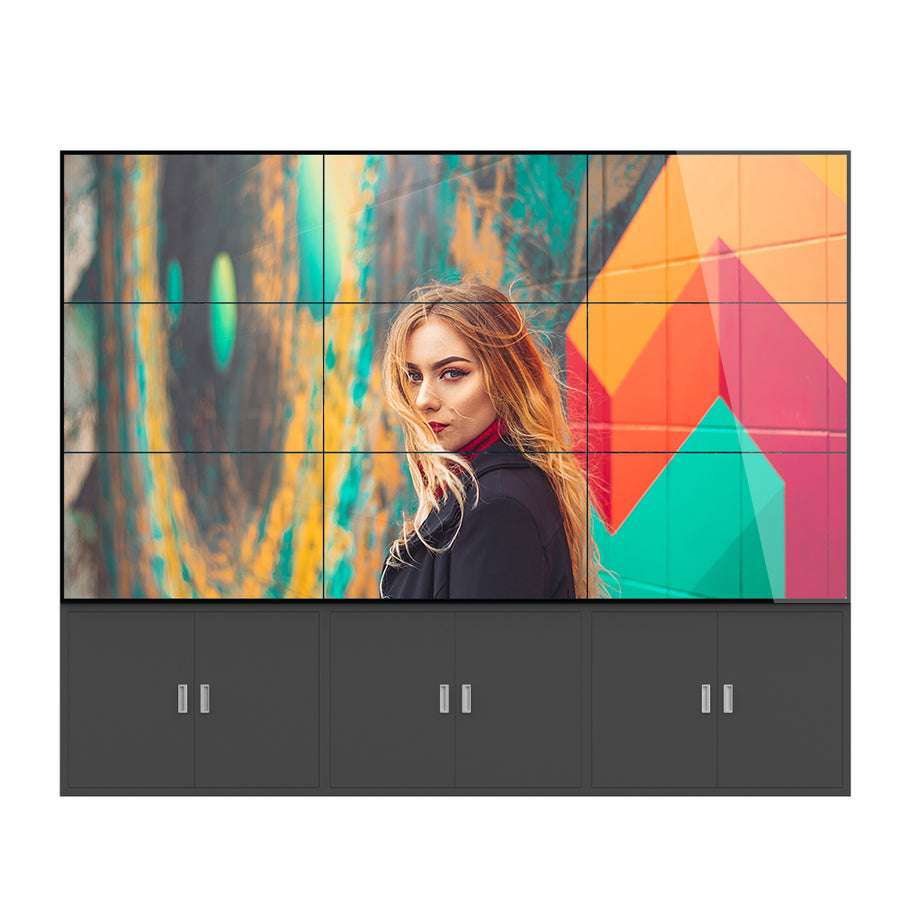

The Marvel MPJ49LHX18 is a 49-inch LCD video wall display with a 1.8mm splice bezel, 1920 x 1080 resolution and 450 nits brightness. It is listed for indoor video wall installations. Procure.ae, an authorised reseller, supplies the MPJ49LHX18 across the UAE, with delivery and installation.

The MPJ49LHX18 uses a 49-inch LG panel with a 1.8mm splice bezel, so several units can be joined into one video wall. Resolution is 1920 x 1080 with 8-bit colour, which gives 16.7 million colours. Brightness is rated at 450 nits with a 1,100:1 contrast ratio, and viewing angles are 89 degrees horizontally and vertically. Response time is 6 ms, and the manufacturer rates the life at more than 60,000 hours.

The display takes HDMI, DVI and VGA inputs, plus S-video and composite video, with an RS-232 control port for management. It supports picture-in-picture, picture-outside-picture and picture-and-picture split-screen modes. Power draw is 230 W maximum with 3 W or less on standby, and the unit weighs 3.5–4.0 kg. The manufacturer's specifications do not state VESA mounting details, so Procure.ae can confirm mounting before a quote is issued.

Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Video Wall Display
Weight
3.5–4.0 kg

Key features

01
1.8mm splice bezel
A narrow bezel for joining units into a video wall.
02
Full HD resolution
1920 x 1080 at a 16:9 aspect ratio.
03
450-nit brightness
Rated at 450 nits with a 1,100:1 contrast ratio.
04
6 ms response time
Response time is rated at 6 ms.
05
Multiple inputs
HDMI, DVI, VGA, S-video and composite video inputs.
06
RS-232 control
Control signal input and loop-out on an RJ45 connector.
07
Split-screen modes
PIP, POP and PAP picture modes are listed.
08
Long rated life
The manufacturer rates the life at more than 60,000 hours.

Specifications

General
ApplicationIndoor
Key Features1.8 mm splice bezel, Full HD 16:9, 450 nits, split-screen (PIP, POP, PAP), RS-232 control, rated life over 60,000 hours
ModelMPJ49LHX18
TypeVideo Wall Display
Display
Aspect Ratio16:9
Bezel Size1.8 mm
Brightness450 nits
Color Depth8-bit (16.7M colours)
Contrast Ratio1,100:1
Display TypeLCD
Resolution1920 x 1080 (Full HD)
Response Time6 ms
Screen Size49 inch
Viewing Angle89° horizontal / 89° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI × 1, DVI × 1, VGA × 1, S-video × 1, composite video, RS-232 control
Power
Power Consumption230 W (maximum)
Standby Power3 W or less
Physical
Operating Humidity20% to 80% RH
Operating Temperature-30 to 60 °C (with air conditioning)
Weight3.5–4.0 kg
Compliance
CertificationsCE, FCC, RoHS
Country of OriginChina
QR code to Marvel 49-inch 1.8mm LCD Video Wall Display – MPJ49LHX18 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
