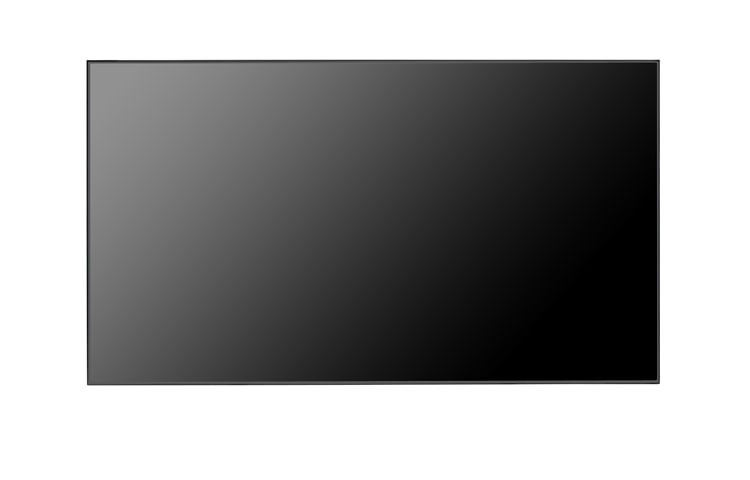

LG WV70M Narrowest Bezel 55-inch Video Wall Display – 55WV70MS

LG WV70M Narrowest Bezel 55-inch Video Wall Display – 55WV70MS

The LG 55WV70MS is a 55-inch Full HD IPS video wall display with a narrowest-bezel design and 800 nits brightness. It suits tiled walls in control rooms and lobbies, and Procure.ae supplies it across the UAE with delivery and installation.

The 55WV70MS uses a 55-inch IPS panel with 1920 x 1080 Full HD resolution, 800 cd/m² brightness, 178 x 178 degree viewing angles and an 8 ms response time. The manufacturer describes it as a narrowest-bezel display for tiled walls. It includes a temperature sensor and a 15 x 15 tile mode for multi-panel layouts.

The display has a 600 x 400 mm VESA mounting interface and supports power consumption of 210 W typical and 120 W in Smart Energy Saving mode. Inputs include DVI-D, HDMI, DisplayPort, RGB, shared component, AV and PC audio, and control uses RS232C, RJ45 and IR. The manufacturer lists SuperSign Elite-w and Elite-w lite compatibility for control. Model code 55WV70MS-B.AEK is also listed.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
800 nits
Type
Video Wall Display

Key features

01
Narrowest bezel
for tiled video wall layouts
02
Full HD IPS
1920 x 1080 resolution with 178 x 178 degree viewing angles
03
Brightness
800 cd/m² on the specification sheet
04
Response time
8 ms
05
Tile mode
15 x 15 tile mode setting
06
Mounting
600 x 400 mm VESA interface
07
Inputs
DVI-D, HDMI, DisplayPort, RGB, component and AV
08
Control
RS232C, RJ45 and IR

Specifications

General
Key FeaturesNarrowest bezel, 800 nits brightness, 15 × 15 tile mode, temperature sensor, SuperSign Elite-w and Elite-w lite compatibility
Model55WV70MS
TypeVideo Wall Display
Display
Aspect Ratio16:9
Brightness800 nits
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178 x 178
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDVI-D In, HDMI In, DisplayPort In, RGB In, Shared Component In, AV In, PC Audio In, RS232C In, RJ45 (LAN) In, IR In, USB
Power
Power Consumption210 W (typical), 120 W (Smart Energy Saving)
Physical
Dimensions1215.2 x 686 x 99 mm
VESA Mount600 x 400 mm
