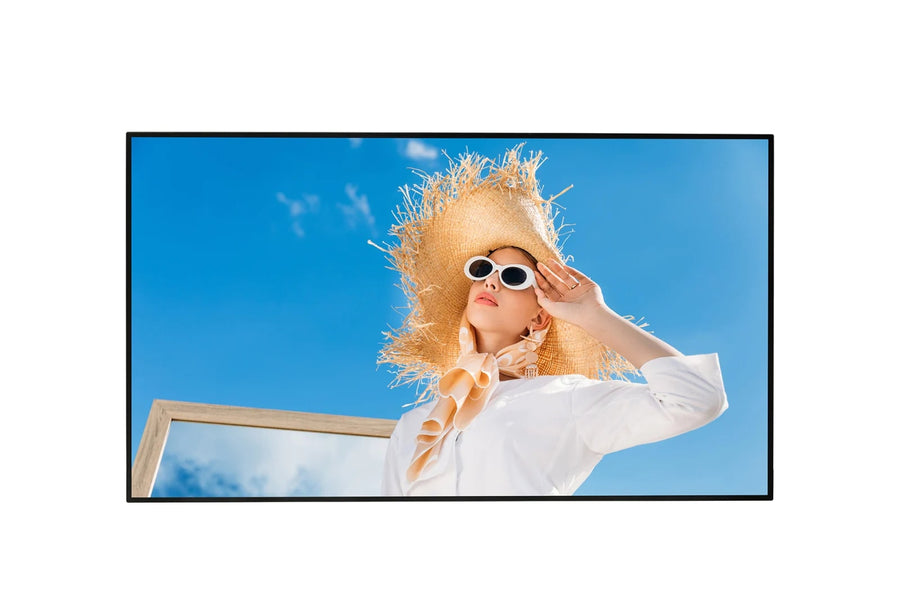

LG Window Facing 75-inch 4K UHD Digital Signage Display – 75XS4G

LG Window Facing 75-inch 4K UHD Digital Signage Display – 75XS4G

The LG 75XS4G is a 75-inch window-facing 4K UHD digital signage display with 4,000 nits typical brightness and built-in Wi-Fi and Bluetooth. It suits storefront glass and bright spaces with network-managed content. Procure.ae supplies the LG 75XS4G across the UAE.

The 75XS4G pairs a 3,840 x 2,160 UHD IPS panel with 4,000 nits typical and 3,200 nits minimum brightness and a 1,200:1 typical contrast ratio. The panel provides 1.07 billion colours, NTSC 68% gamut, 8 ms response and 60 Hz refresh, with 178 x 178 degree viewing angles. Built-in Wi-Fi and Bluetooth, 16 GB of internal memory, a beacon function and local key operation support deployment and management. The 16:9 display is listed for 24/7 operation and supports portrait and landscape orientation.

It fits storefront windows, shop fronts and entrances, and it suits networked estates through Connected Care, SuperSign CMS and SuperSign Control+. Integration options include HDMI In × 2, HDMI Out, DisplayPort In, RS232C In/Out, RJ45 LAN In, IR In and USB 2.0 Type A. Compared with the 75XS2E, it adds built-in Wi-Fi and Bluetooth, a beacon function and 4,000 nits typical brightness against 2,500 nits.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
4000 nits (typical), 3200 nits (minimum)
Type
Digital Signage Display
Weight
39.6 kg

Key features

01
Window-facing brightness
4000 nits typical and 3200 nits minimum brightness.
02
Wi-Fi and Bluetooth
Built-in wireless connectivity for network management.
03
Full 4K UHD
3840 x 2160 resolution on a 75-inch screen.
04
Beacon function
Built-in beacon function is listed.
05
Connected Care
Remote management through LG Connected Care and SuperSign Control+.
06
Multiple inputs
HDMI In × 2, HDMI Out, DisplayPort In and USB 2.0 Type A.
07
PIP and PBP modes
Picture-in-picture and 2PBP modes are listed.
08
Video tags and tiling
Four video tags and Tile Mode Setting for video walls.

Specifications

General
Key FeaturesWindow-facing, 4000 nits typical, IPS 4K UHD, Built-in Wi-Fi and Bluetooth, Beacon, Connected Care, PIP and 2PBP, Video tags and tiling
Model75XS4G
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size13.8 mm (even)
Brightness4000 nits (typical), 3200 nits (minimum)
Color Depth1.07 billion colours
Color GamutNTSC 68%
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) x 178° (V)
Performance
Operating SystemwebOS 4.1
Storage16 GB
Audio
Speaker OutputExternal speaker output
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, HDMI Out, DP In, RS232C In/Out, RJ45 LAN In, IR In, USB 2.0 Type A × 1
Wi-FiBuilt-in
Physical
Dimensions1679.2 x 957.6 x 104 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C (0 to 30 °C in direct sunlight)
VESA Mount600 x 400 mm
Weight39.6 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
