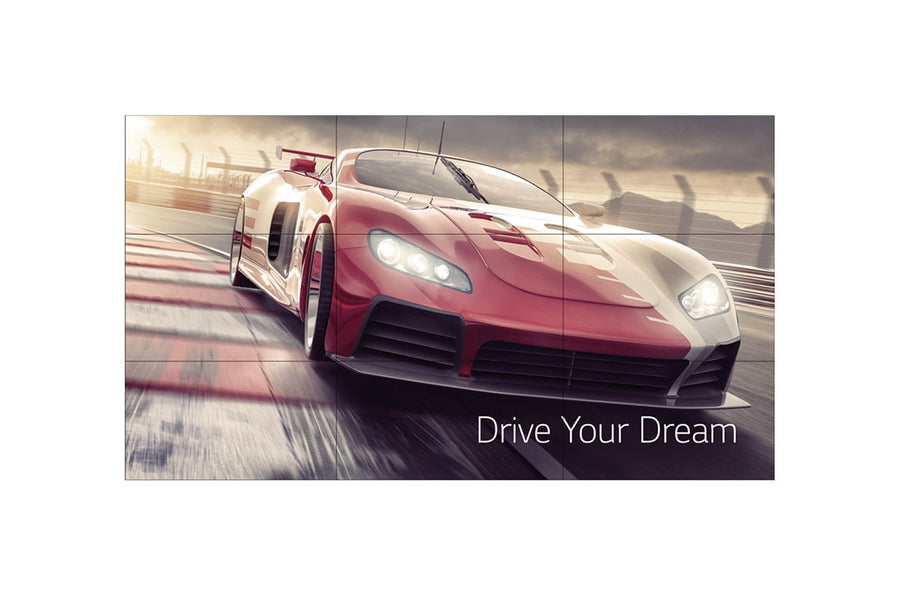

LG VM5E Series 49-inch Video Wall Display – 49VM5E-A

LG VM5E Series 49-inch Video Wall Display – 49VM5E-A

The LG 49VM5E-A is a 49-inch Full HD video wall display with 0.9 mm even bezels and 500 nits brightness. It is OPS piggyback compatible and works with SuperSign CMS for content management. The model is discontinued, and Procure.ae can confirm current availability in the UAE.

The 49VM5E-A has a 49-inch panel with 1920 x 1080 (FHD) resolution, 500 nits typical brightness and a 60 Hz refresh rate. The 0.9 mm even bezel gives a 1.8 mm gap where two panels meet bezel to bezel. The unit is rated for 0 to 40 °C and 10% to 80% humidity, and its smart energy saving mode draws 65 W. The display head measures 1075.6 x 605.8 x 86.2 mm and weighs 17.5 kg.

The model suits video walls and digital signage installations, and it is OPS piggyback compatible. Content is managed with SuperSign CMS, and displays are monitored with SuperSign Control and Control+. Inputs include two HDMI ports, DisplayPort, DVI-D and audio, with DisplayPort and audio outputs. Control is through RS-232C in and out, RJ45 LAN in and out and an IR input. Mounting uses a 600 x 400 mm VESA pattern, and the manufacturer lists Energy Star 8.0.

Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits (typical)
Type
Video Wall Display
Weight
17.5 kg (display head)

Key features

01
Even 0.9 mm bezel
Even 0.9 mm bezel with a 1.8 mm gap between panels.
02
Full HD at 500 nits
1920 x 1080 resolution with 500 nits typical brightness.
03
60 Hz refresh rate
A 60 Hz refresh rate on the 49-inch panel.
04
OPS piggyback
OPS type compatible with piggyback installation.
05
SuperSign CMS
Content management with SuperSign CMS.
06
Monitoring software
SuperSign Control and Control+ for monitoring displays.
07
Control interfaces
RS-232C in and out, RJ45 LAN in and out and IR in.
08
Energy Star 8.0
Energy Star 8.0 listed, with a 65 W smart energy saving mode.

Specifications

General
CompatibilityOPS type (piggyback); SuperSign CMS; SuperSign Control / Control+
ControlsRS-232C in/out, RJ45 LAN in/out, IR in
Key Features0.9 mm even bezel, Full HD 500 nits, 60 Hz, OPS piggyback, SuperSign CMS, SuperSign Control and Control+, RS-232C and LAN control, Energy Star 8.0
Model49VM5E-A
TypeVideo Wall Display
Display
Bezel Size0.9 mm even (1.8 mm bezel to bezel)
Brightness500 nits (typical)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Screen Size49 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsInputs: HDMI × 2, DP × 1, DVI-D × 1, audio, USB 2.0; outputs: DP, audio
Power
Power Consumption65 W (smart energy saving)
Physical
Dimensions1075.6 x 605.8 x 86.2 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions1214 x 775 x 263 mm
Shipping Weight23.2 kg
VESA Mount600 x 400 mm
Weight17.5 kg (display head)
Compliance
CertificationsCB / NRTL; FCC Class A, CE, KC; Energy Star 8.0
