LG VM5B 55-inch Full HD Video Wall Display – 55VM5B-A — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
LG · 55VM5B-A · Video Wall

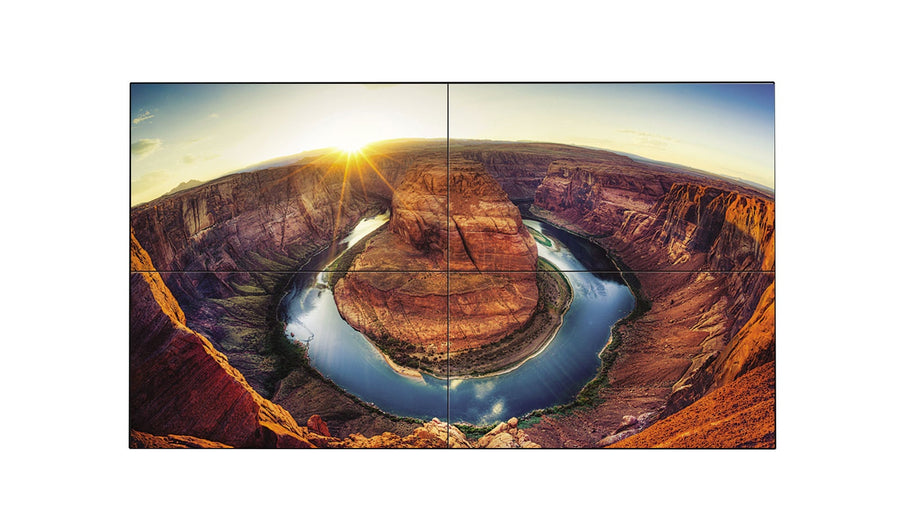

LG VM5B 55-inch Full HD Video Wall Display – 55VM5B-A

LG VM5B 55-inch Full HD Video Wall Display – 55VM5B-A

The LG 55VM5B-A is a 55-inch Full HD video wall display with a 0.9 mm even bezel and 500 nits brightness. It is a discontinued model for tiled walls, and Procure.ae can confirm current availability in the UAE or recommend a successor.

The 55VM5B-A has a 55-inch panel with 1920 x 1080 Full HD resolution and 500 nits module brightness. Its 0.9 mm even bezel gives a 1.8 mm bezel-to-bezel gap when panels are tiled. The manufacturer lists 80 W in Smart Energy Saving mode and operation from 0 to 40 °C with 10% to 80% humidity. The panel is built for continuous video wall use in multi-screen layouts.

The display has built-in power, a 600 x 400 mm VESA mounting interface and OPS compatibility. Its inputs include HDMI, DisplayPort, DVI-D, USB 2.0, USB 3.0 and RGB, and it is controlled over RS232C, RJ45 or IR. The manufacturer also lists an external media player attachment option (MP500/MP700) and SuperSign-w lite and SuperSign-c software. Model code 55VM5B-A.AMA is also listed.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
Weight
18.6 kg

Key features

01
Even bezel
0.9 mm even bezel with 1.8 mm bezel-to-bezel gap
02
Full HD
1920 x 1080 resolution on a 55-inch panel
03
Brightness
500 nits module brightness
04
Mounting
600 x 400 mm VESA interface
05
Inputs
HDMI, DisplayPort, DVI-D, USB 2.0, USB 3.0 and RGB
06
Control
RS232C, RJ45 and IR receiver
07
Media player
external MP500/MP700 attachment option
08
Software
SuperSign-w lite and SuperSign-c support

Specifications

General
Key Features500 nits brightness, 0.9 mm even bezel, OPS-compatible, External media player attachable (MP500/MP700), SuperSign-w lite and SuperSign-c support
Model55VM5B-A
TypeVideo Wall Display
What's in the BoxRemote controller, power cable, DP cable, manual, IR receiver, RS-232C cable, LAN cable, guide bracket, screw
Display
Bezel Size0.9 mm even bezel (B to B 1.8 mm)
Brightness500 nits
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In, DisplayPort In, DVI-D In, USB 2.0, USB 3.0, RGB In, DisplayPort Out × 1, RS232C, RJ45, IR Receiver
Power
Power Consumption80 W (Smart Energy Saving)
Physical
Dimensions1211.4 x 682.2 x 86.5 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight18.6 kg
QR code to LG VM5B 55-inch Full HD Video Wall Display – 55VM5B-A on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
