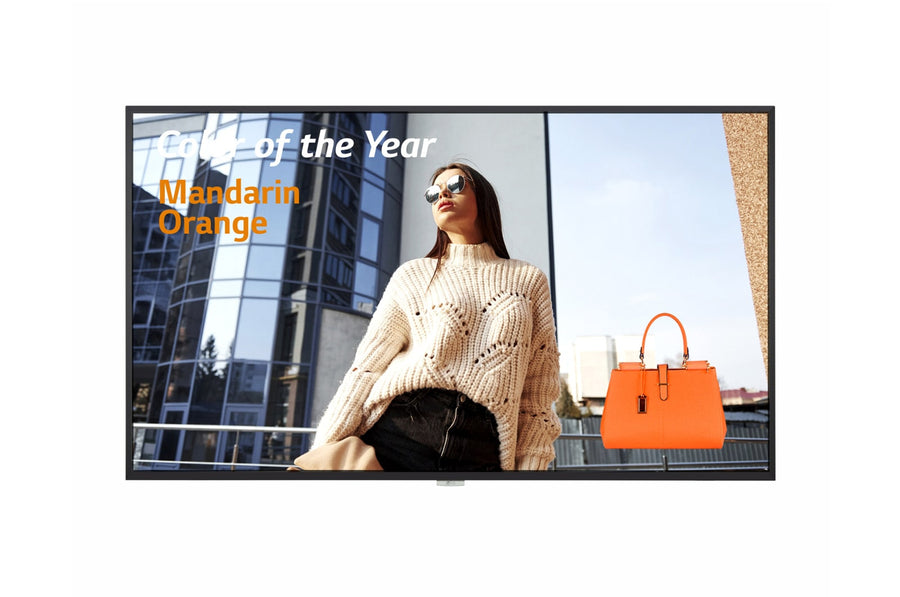

The LG 55UH5F is a discontinued 55-inch 4K UHD IPS digital signage display for lobbies, corporate reception and retail use. It offers 500 nits typical brightness, a 1,100:1 contrast ratio and portrait or landscape orientation. Procure.ae can confirm current availability in the UAE or recommend a current successor model.
The 55UH5F uses a 55-inch IPS panel with 3840 x 2160 (UHD) resolution, 500 nits typical brightness and a 1,100:1 contrast ratio. Its 8 ms response time and 178° x 178° viewing angle suit video and content playback, with a rated panel life of 50,000 hours. The display is rated for 24-hour operation in portrait or landscape orientation. Typical power consumption is 105 W, with 145 W maximum and 73.5 W in smart energy saving mode.
The 55UH5F fits lobbies, corporate reception, retail floors and wayfinding screens across the UAE and the wider GCC. It works with SuperSign CMS and SuperSign Control or Control+ software and accepts OPS modules for plug-in computing. Its RS232C and IR ports allow control from a building system, and Signage365 Care is listed as supported. The model is discontinued, so check the current 55UH5F-H variant in the same series before specifying it for a project.
| Key Features | IPS panel, OPS-compatible, SuperSign CMS, SuperSign Control and Control+, Signage365 Care, RS232C and IR control |
| Model | 55UH5F |
| Type | Digital Signage Display |
| What's in the Box | Remote controller, power cord, quick start guide, HDMI cable, regulation book, phone to RS232C gender |
| Aspect Ratio | 16:9 |
| Bezel Size | 9.9 mm top and sides, 14.4 mm bottom |
| Brightness | 500 nits |
| Contrast Ratio | 1,100:1 |
| Orientation | Portrait and landscape |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 55 inch |
| Viewing Angle | 178° x 178° |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | RS232C In/Out, RJ45 (LAN) In, IR In |
| Power Consumption | 105 W (typical), 145 W (max) |
| Power Source | Built-in power |
| Dimensions | 1234.4 x 720.9 x 39.9 mm |
| Duty Cycle | 24 hours |
| Operating Humidity | 10% to 80% |
| Operating Temperature | 0 to 40 °C |
| Tilt | Up to 30° face down |
| VESA Mount | 300 x 300 mm |
| Weight | 19.0 kg |
| Certifications | CB / NRTL, FCC Class A, CE, KC, Energy Star 8.0 |
| IP Rating | IP5X |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
