LG · 55EW5PG-S · Digital Signage

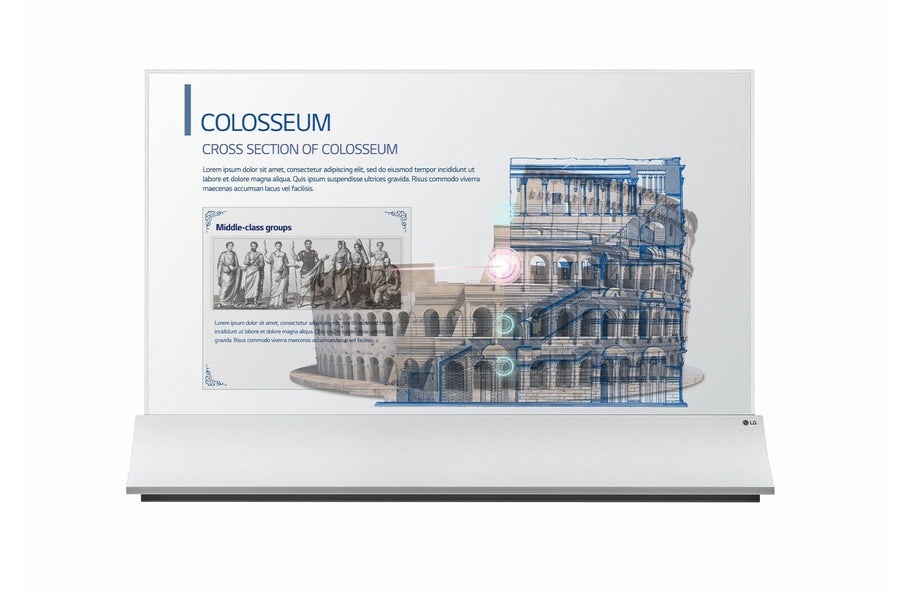

LG Transparent OLED EW5 55-inch Signage Display – 55EW5PG-S

LG Transparent OLED EW5 55-inch Signage Display – 55EW5PG-S

The LG 55EW5PG-S is a 55-inch transparent OLED signage display for retail windows, showrooms and lobbies. Its 1920 x 1080 OLED panel offers 38% transparency, 400 nits at 25% APL without glass, and 120 Hz refresh. This model is discontinued; Procure.ae supplies LG transparent OLED signage across the UAE.

The 55EW5PG-S uses a 55-inch OLED panel with a 150,000:1 contrast ratio and BT.709 120% colour gamut. It has a 1 ms grey-to-grey response time and 8 ms MPRT. The display runs webOS 4.0 with SuperSign CMS, SuperSign Control+, SuperSign WB and Mobile CMS, and holds 16 GB of eMMC storage for local content. Operating temperature is 0 to 40 °C, with 10% to 80% humidity.

The display suits storefront windows and showroom glass where content should appear over the view behind the panel. Local content scheduling, group management, fail-over and wake-on-LAN support managed installations. Inputs include HDMI, DisplayPort and RS232C, with RJ45 LAN for network control. The model is also listed under the codes 55EW5PG-S.AMA and 55EW5PG-S.AMI.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
150 nits (400 nits at 25% APL, without glass)
Type
Transparent OLED Signage Display
Weight
28.3 kg (head)

Key features

01
Transparent OLED panel
55-inch 1920 x 1080 OLED with 38% transparency.
02
Brightness
400 nits at 25% APL and 150 nits at 100% APL, without glass.
03
Fast response
1 ms grey-to-grey and 8 ms MPRT.
04
Colour gamut
BT.709 120% with 1.07 billion colours.
05
webOS signage platform
webOS 4.0 with SuperSign CMS, SuperSign Control+ and Mobile CMS.
06
Managed playback
Local content scheduling, group manager and fail-over.
07
Network control
RJ45 LAN, RS232C, SNMP, wake-on-LAN and HDMI-CEC.
08
Portrait or landscape
Supported in both orientations.

Specifications

General
Key FeaturesTransparency 38%, Portrait/landscape, SuperSign CMS, Crestron Connected, Wake on LAN, HDMI-CEC
Model55EW5PG-S
TypeTransparent OLED Signage Display
Display
Aspect Ratio16:9
Brightness150 nits (400 nits at 25% APL, without glass)
Color Depth1.07 billion colours
Color GamutBT.709 120%
Contrast Ratio150,000:1
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution1920 x 1080 (Full HD)
Response Time1 ms (G to G), 8 ms (MPRT)
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 4.0
Storage16 GB eMMC
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DP In × 1, DP Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 × 2, IR Out, Audio Out × 1
Power
Power Consumption0.5 W (standby)
Physical
Dimensions1256.2 x 856.9 x 242 mm (head)
Duty Cycle18/7 (moving content only)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight28.3 kg (head)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
