LG Stretch Signage 37-inch Digital Signage Display – 37BH7N-H — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
LG · 37BH7N-H · Digital Signage

LG Stretch Signage 37-inch Digital Signage Display – 37BH7N-H

LG Stretch Signage 37-inch Digital Signage Display – 37BH7N-H

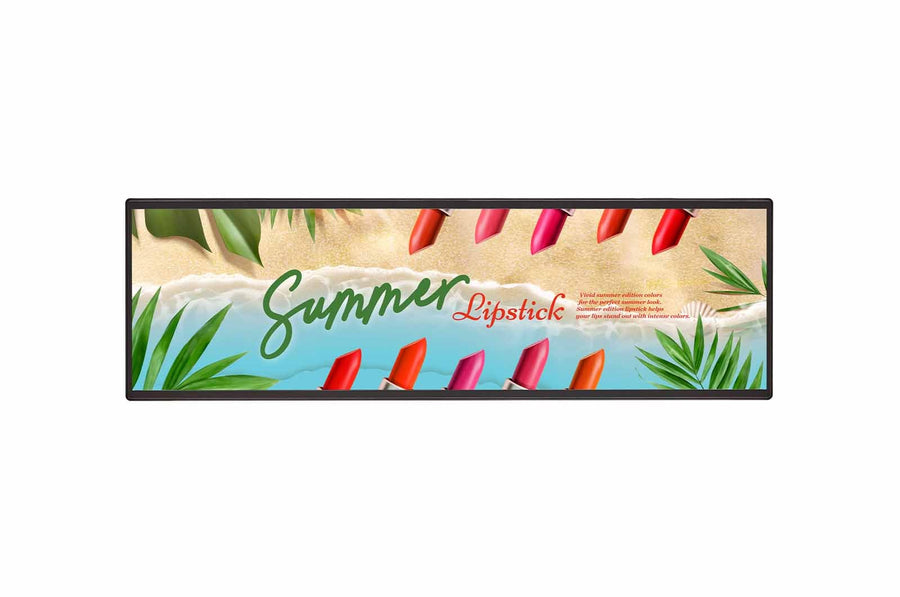

The LG 37BH7N-H is a 37-inch stretched signage display with a 32:9 aspect ratio for long, narrow installations. It offers 1920 x 540 FHD resolution, 700 nits typical brightness and HDMI daisy-chaining for multi-unit runs. Procure.ae supplies the LG 37BH7N-H across the UAE.

The 37BH7N-H uses an edge-lit IPS panel with 1920 x 540 resolution, 700 nits typical brightness and a 1,000:1 contrast ratio. Its 32:9 format, 178° x 178° viewing angle and 60 Hz refresh rate define a wide, horizontal screen. The manufacturer specifies a 14 ms response time and NTSC 72% colour gamut, and the display runs 24/7 in portrait or landscape orientation.

Use the 37BH7N-H in corridors, transit areas, retail shelving, bars and information walls where a wide, short screen fits the space. Inputs include two HDMI ports with daisy-chain support and a DisplayPort input, and the display supports SuperSign CMS, SuperSign Control+, SuperSign WB and Mobile CMS. It tilts up to 30° facedown and mounts with a 400 x 200 mm VESA pattern. The head weighs 7 kg.

Screen Size
37 inch
Resolution
1920 x 540 (FHD)
Brightness
700 nits
Type
Stretched Digital Signage Display
Weight
7 kg

Key features

01
Stretched format
32:9 aspect ratio on a 37-inch IPS (ADS) panel with 1920 x 540 resolution.
02
Bright edge-lit panel
700 nits typical brightness with a 1,000:1 contrast ratio.
03
Daisy-chain inputs
Two HDMI inputs with HDCP 2.2/1.4 support and daisy-chaining, plus DisplayPort.
04
Tilt mounting
Tilts up to 30° facedown for angled mounting.
05
Remote management
RS232C, RJ45 LAN and IR control, with SuperSign CMS, Control+, WB and Mobile CMS.
06
Care coverage
Signage 365 Care (LG ConnectedCare) is listed for this model.

Specifications

General
Key FeaturesHDMI daisy chain, HDCP 2.2/1.4, HDMI ARC on HDMI 2, USB auto playback, Signage 365 Care (LG ConnectedCare), conformal-coated power board
Model37BH7N-H
TypeStretched Digital Signage Display
What's in the BoxRemote controller (2 batteries), power cord (1.55 m), quick setup guide, regulation book, phone to RS232C gender adapter, power cord clip
Display
Aspect Ratio32:9
BacklightEdge
Bezel SizeT/R/L/B 15.6 / 9.3 / 9.3 / 15.6 mm
Brightness700 nits
Color Depth8-bit (16.7 million colours)
Color GamutNTSC 72%
Contrast Ratio1,000:1
OrientationPortrait and landscape
Panel TechnologyIPS (ADS)
Refresh Rate60 Hz
Resolution1920 x 540 (FHD)
Response Time14 ms
Screen Size37 inch
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2 (daisy chain), DisplayPort In × 1, USB 2.0 × 1, RS232C In/Out, RJ45 (LAN) In, IR In, HDMI Out × 1, Audio Out × 1
Power
Standby Power0.5 W
Physical
ColorBlack
Dimensions922.3 x 288.3 x 43.5 mm (without IR)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Weight9 kg
TiltUp to 30° facedown
VESA Mount400 x 200 mm
Weight7 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC
