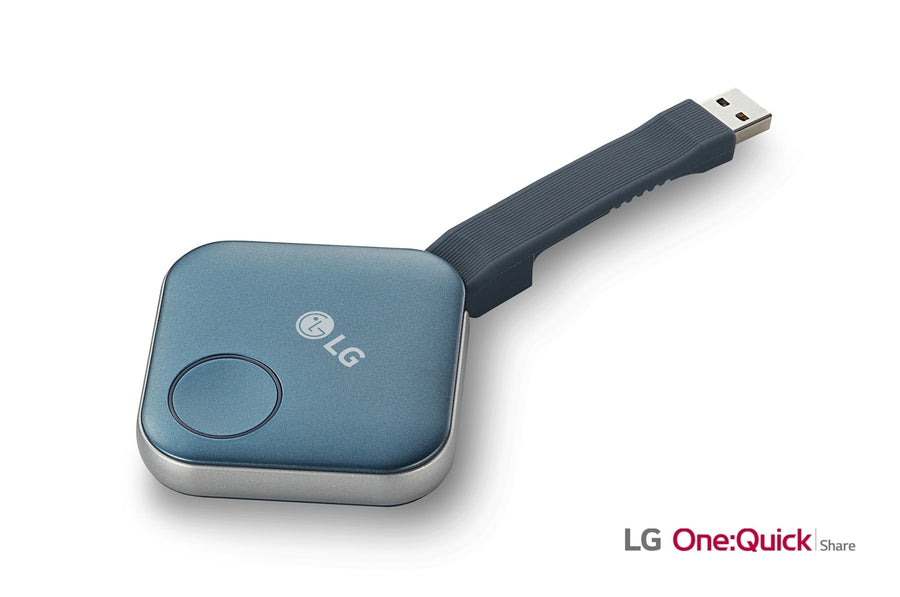

LG One:Quick Share Wireless Presentation System – SC-00DA

The LG One:Quick Share SC-00DA is a wireless presentation system that lets a Windows or macOS PC share its screen to a compatible LG signage display over 802.11ac Wi-Fi. It supports Split View for up to four screens, user switching and signage control. Procure.ae supplies the LG SC-00DA in the UAE, with delivery, installation and training.

The SC-00DA measures 63.8 x 63.8 x 13.5 mm and weighs 46 g, with one USB 2.0 Type-A connector. It uses IEEE 802.11 a/b/g/n/ac Wi-Fi with a maximum available range of 30 m. The unit runs an embedded Linux OS on a quad-core Cortex-A7 CPU with 4 GB eMMC storage and 512 MB DDR3 memory. Split View supports up to four screens, and user switching, admin mode and signage control are included. Power consumption is 2.0 W typical and 2.5 W maximum, and the unit operates from 0 to 40 °C.

The system is designed for LG signage displays in the 43-inch to 86-inch range, including the UH7F, UH5F, UM3DG and UL3G series listed by the manufacturer. Host PCs run Windows 7 SP1, 8, 8.1 or 10 (64-bit), or macOS 10.11 to 10.15 (64-bit). Sound output is supported on Windows only. The manufacturer specifies an Intel Sandy Bridge i3 or later, or an AMD Ryzen 1st Generation or later, with 8 GB memory or more for the host PC. Procure.ae can confirm the right configuration for a specific display.
