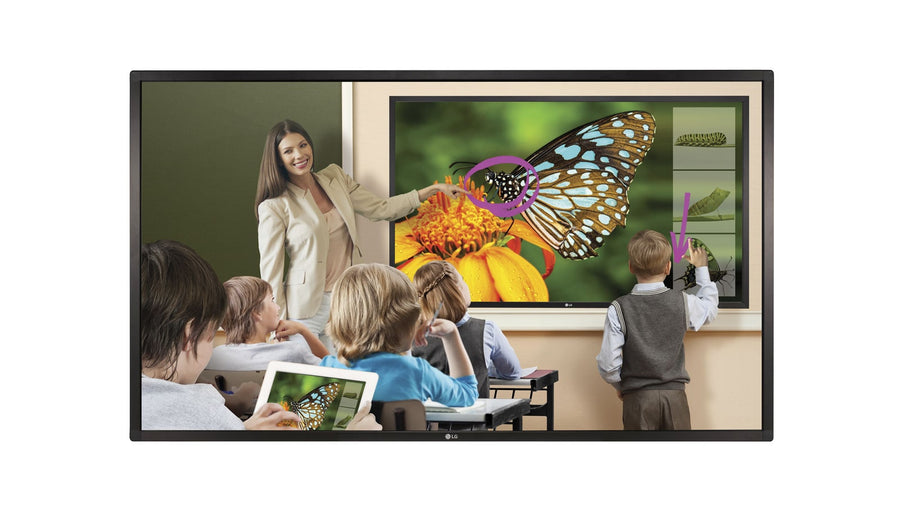

LG KT-T Series 65-inch Touch Overlay Kit – KT-T650

LG KT-T Series 65-inch Touch Overlay Kit – KT-T650

The LG KT-T650 is a discontinued 65-inch infrared touch overlay kit with IWB software that adds touch input to a 65-inch screen. It supports up to 10 touch points at 1 mm accuracy over USB 2.0 and works in landscape or portrait. Procure.ae supplies the LG KT-T650 in the UAE and can confirm current availability.

The overlay uses infrared sensing across the screen, with a touch resolution of 1428 x 803 and up to 10 touch points at 1 mm accuracy. It connects to a host computer over USB 2.0, drawing power from that connection. The manufacturer lists operating system support for Windows 7, Windows 8, Mac OS X 10.7 or later, Android and Linux (kernel 3.9 or later). The overlay head weighs 18.5 kg and has a 27.0 mm bezel width, and the rated operating range is 0 to 40 °C.

The KT-T650 is the 65-inch model in the KT-T series, alongside the KT-T430 for 43-inch and the KT-T490 for 49-inch screens. It is the only one of the three listed with IWB software, and its package includes a CD with writing software, two pens and a tray, plus installation accessories. It suits classrooms, boardrooms and presentation spaces that need touch on a 65-inch screen.

Screen Size
65 inch
Touch Technology
Infrared
Type
Touch Overlay Kit
Weight
18.5 kg

Key features

01
Infrared touch sensing
Uses infrared (IR) spread touch detection across a 1428 x 803 touch area.
02
10-point multi-touch
Detects up to 10 touch points at once.
03
1 mm touch accuracy
Rated at 1 mm accuracy for touch input.
04
Landscape and portrait
Supports both landscape and portrait orientation on a 65-inch screen.
05
USB 2.0 connection
Connects to the host over USB 2.0, with power drawn from the USB connection.
06
Multi-OS support
Lists Windows 7, Windows 8, Mac OS X 10.7 or later, Android and Linux (kernel 3.9 or later).
07
IWB software
Listed with IWB software, supplied on a CD with writing software, two pens and a tray.
08
Rated operating range
Operates from 0 to 40 °C at 10% to 80% humidity.

Specifications

General
Key FeaturesInfrared touch, 10-point multi-touch, 1 mm accuracy, landscape and portrait orientation, USB 2.0 interface, IWB software included
ModelKT-T650
TypeTouch Overlay Kit
What's in the BoxManual (overlay), CD with writing software, pens (2), tray, installation accessories
Display
Bezel Size27.0 mm
OrientationLandscape and portrait
Screen Size65 inch
Touch Accuracy1 mm
Touch Points10-point multi-touch
Touch Resolution1428 x 803
Touch TechnologyInfrared
Performance
Operating SystemWindows 7, Windows 8, Mac OS X 10.7 or later, Android, Linux (kernel 3.9 or later)
Connectivity
ConnectivityUSB 2.0
Power
Power SourceUSB
Physical
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight18.5 kg
