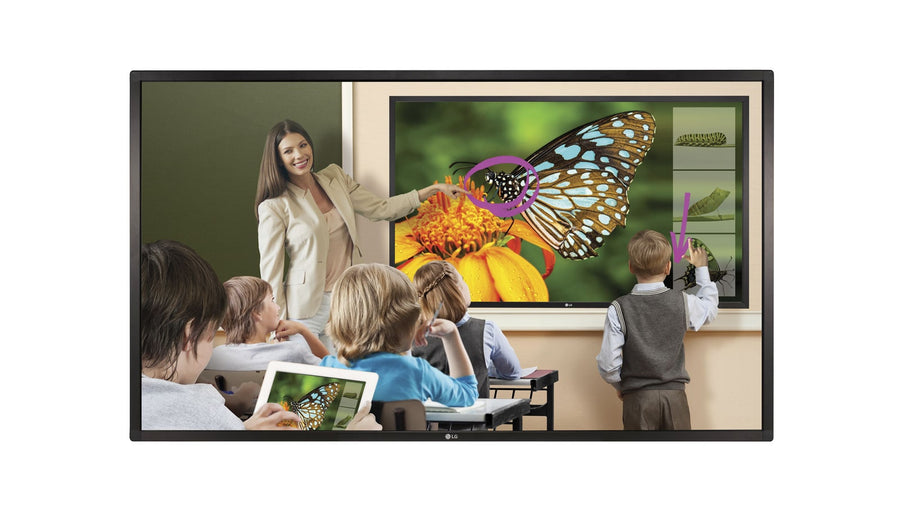

LG KT-T Series 49-inch Touch Overlay Kit – KT-T490

The LG KT-T490 is a discontinued 49-inch infrared touch overlay kit that adds touch input to a 49-inch screen. It supports up to 10 touch points at 1 mm accuracy over USB 2.0 and works in landscape or portrait. Procure.ae supplies the LG KT-T490 in the UAE and can confirm current availability.

The overlay uses infrared (IR) sensing across the screen, with a touch resolution of 1428 x 803 and up to 10 touch points. Touch accuracy is rated at 1 mm, and the kit connects to a host computer over a USB 2.0 interface, drawing its power from that USB connection. The manufacturer lists operating system support for Windows 7, Windows 8, Mac OS X 10.7 or later, Android and Linux (kernel 3.9 or later). The overlay head weighs 8 kg and has a 27.0 mm bezel width. The rated operating range is 0 to 40 °C with 10% to 80% humidity.

The KT-T490 is the 49-inch model in the KT-T series, alongside the KT-T430 for 43-inch screens and the KT-T650 for 65-inch screens. It does not include IWB software, and its package contains the manual and installation accessories. It suits classrooms, meeting rooms and signage installations that need touch on a 49-inch screen, and it works with Windows, macOS, Android and Linux hosts over USB.
