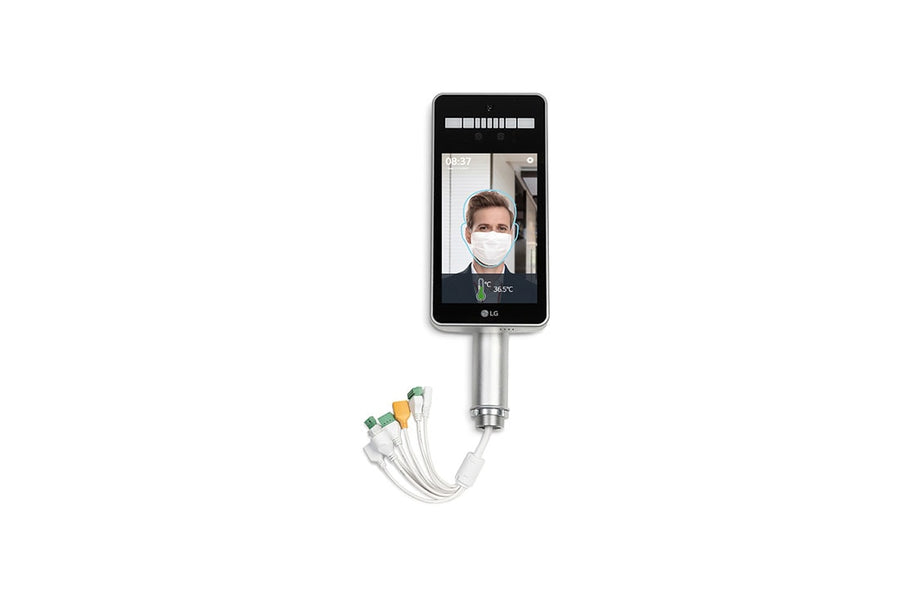

LG Kiosk Touch KC5PJ 8-inch Face Recognition Thermal Kiosk – 8KC5PJ-S

LG Kiosk Touch KC5PJ 8-inch Face Recognition Thermal Kiosk – 8KC5PJ-S

The LG Kiosk Touch KC5PJ 8-inch (model 8KC5PJ-S) is a face recognition thermal kiosk for access checkpoints, visitor screening and staff check-in. It detects faces within 0.3 m to 0.8 m, runs mask checks and raises fever alarms using a thermal sensor. Procure.ae can confirm current availability of the 8KC5PJ-S in the UAE.

The 8KC5PJ-S runs Android 7.1 on an RK3399 processor with 4 GB RAM and 16 GB eMMC storage. It has a 2-megapixel RGB camera, a 2-megapixel IR camera and a 32 x 32 (1,024-pixel) thermal sensor. Face recognition works at 0.3 m to 0.8 m and takes under 2 seconds. Body temperature detection covers 32 to 42 °C at a recommended distance of 0.5 m, with a fever alarm and a mask check.

The 8KC5PJ-S suits building entrances, visitor screening, staff check-in and access points. It has one relay output and a DC power jack, and it connects by RJ45 Ethernet or 2.4 GHz Wi-Fi. USB Type-A and OTG ports support storage in FAT32 or NTFS. The floor stand pole adjusts from 795 mm to 1,145 mm, and a table stand is also listed. Admin tools run on PC and mobile, and online updates are supported.

Screen Size
8 inch
Resolution
800 x 1280
Type
Face Recognition Thermal Kiosk
Weight
1.7 kg

Key features

01
Face Recognition
Detects faces at 0.3 m to 0.8 m in under 2 seconds.
02
Thermal Screening
32 x 32 thermal sensor with a 32 to 42 °C detection range.
03
Mask Check
Mask check support as part of the screening process.
04
Anti-Spoofing
Deep learning and infrared anti-spoofing, with data encryption.
05
Fever Alarm
Fever alarm with voice prompts and LED status lighting.
06
Relay Output
One relay output port and a DC power jack.
07
Connectivity
RJ45 Ethernet, 2.4 GHz Wi-Fi and USB Type-A or OTG ports.
08
Remote Administration
Online update support with PC and mobile admin tools.

Specifications

General
Key FeaturesFace recognition in under 2 seconds, 0.3 m to 0.8 m range, thermal sensor 32 x 32, 32 to 42 °C detection, mask check, fever alarm, anti-spoofing, data encryption
Model8KC5PJ-S
TypeFace Recognition Thermal Kiosk
Display
Camera2 MP RGB camera (1920 x 1080) and 2 MP IR camera
Resolution800 x 1280
Screen Size8 inch
Performance
Operating SystemAndroid 7.1
ProcessorRK3399 (2 x A72 + 4 x A53)
RAM4 GB
Storage16 GB eMMC
Audio
Speaker Output2.5 W, 4 Ω
Connectivity
Ethernet10/100 adaptive Ethernet (RJ45)
Input VoltageAC 220 V, 60 Hz
Output VoltageDC 12 V, 2 A
OutputsRelay × 1
USB PortsUSB 2.0 Type-A × 1, OTG × 1
Wi-Fi2.4 GHz
Power
Power Consumption12 W (typical)
Physical
Dimensions129.6 x 369.0 x 88.1 mm
Height Range795 to 1,145 mm (floor stand pole)
Weight1.7 kg
