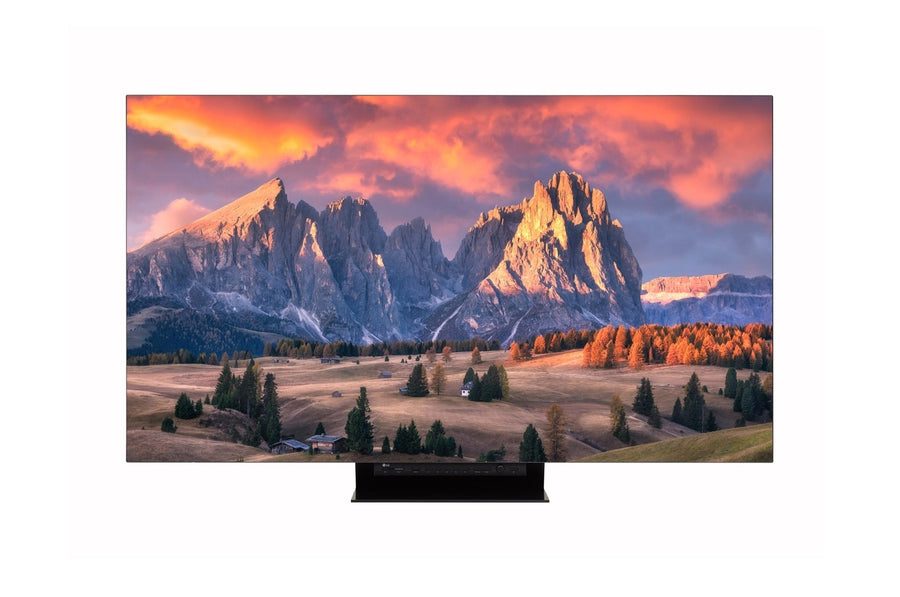

LG 65-inch 4K UHD OLED Pro Digital Signage Display – 65EP5G

LG 65-inch 4K UHD OLED Pro Digital Signage Display – 65EP5G

The LG 65EP5G is a 65-inch 4K UHD OLED Pro display with 120 Hz refresh, DCI-P3 99% colour and SDI, genlock and tally support. It suits production, monitoring and high-end signage that needs SDI connectivity. Procure.ae supplies the LG 65EP5G across the UAE.

The 65EP5G uses a 65-inch OLED panel at 3840 x 2160 with a 16:9 aspect ratio and a 120 Hz refresh rate. Brightness is 950 nits at 3% APL and 170 nits at 100% APL, with a 1,850,000:1 contrast ratio. The panel covers 99% of DCI-P3 colour gamut, displays 1.07 billion colours and has a 0.1 ms grey-to-grey response time. Colour temperature can be set to variable, 9300K, 6500K, 5400K, 3200K, D65, C or D-Cinema presets. The manufacturer also lists DeltaE below 2 and Eyesafe certification.

The display suits production monitoring and calibrated video work, with SDI inputs and outputs, genlock, tally, UMD and time code, plus a waveform and vector scope. Audio options include Dolby Atmos and an audio level meter. It runs webOS 5.0 with 8 GB of internal memory and works with SuperSign WB for calibration. The head weighs 31 kg, or 35 kg with the stand, and uses a 300 x 300 mm VESA interface. It is landscape only.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
950 nits (APL 3%) / 170 nits (APL 100%)
Type
OLED Pro Display
Weight
31 kg (head) / 35 kg (head with stand)

Key features

01
OLED Pro panel
65-inch, 3840 x 2160 4K UHD
02
Wide colour
DCI-P3 99% gamut, 1.07 billion colours
03
Fast response
120 Hz refresh, 0.1 ms grey-to-grey
04
SDI connectivity
four SDI in and four SDI out
05
Genlock and tally
genlock input, tally, UMD and time code
06
Calibration
SuperSign WB, DeltaE below 2, Eyesafe
07
Monitoring tools
waveform, vector scope and audio level meter

Specifications

General
Key FeaturesDolby Atmos audio, waveform and vector scope, genlock and tally, UMD and time code, DeltaE < 2, OLED panel protection (TPC, pixel refresher), SuperSign WB calibration, LG Connect, Web API
Model65EP5G
TypeOLED Pro Display
What's in the BoxRemote controller (2 batteries), installation guide, regulation book
Display
Aspect Ratio16:9
Bezel SizeOff-bezel 2.0 mm on all sides
Brightness950 nits (APL 3%) / 170 nits (APL 100%)
Color Depth1.07 billion colours
Color GamutDCI-P3 99%
Color TemperatureVariable, 9300K, 6500K, 5400K, 3200K, D65, C, D-Cinema
Contrast Ratio1,850,000:1
OrientationLandscape
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time0.1 ms (G to G)
Screen Size65 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 5.0
Storage8 GB (internal memory)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In x 2, SDI In x 4, SDI Out x 4, SFP+ In, Genlock (REF) In, RS232C In, RJ45 LAN In, RJ45 GPI In/Out, USB 2.0 x 1, Audio Out
Physical
Dimensions1446.3 x 823.8 x 49 mm (without control box)
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Weight45.5 kg (packed)
VESA Mount300 x 300 mm
Weight31 kg (head) / 35 kg (head with stand)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, Eyesafe
