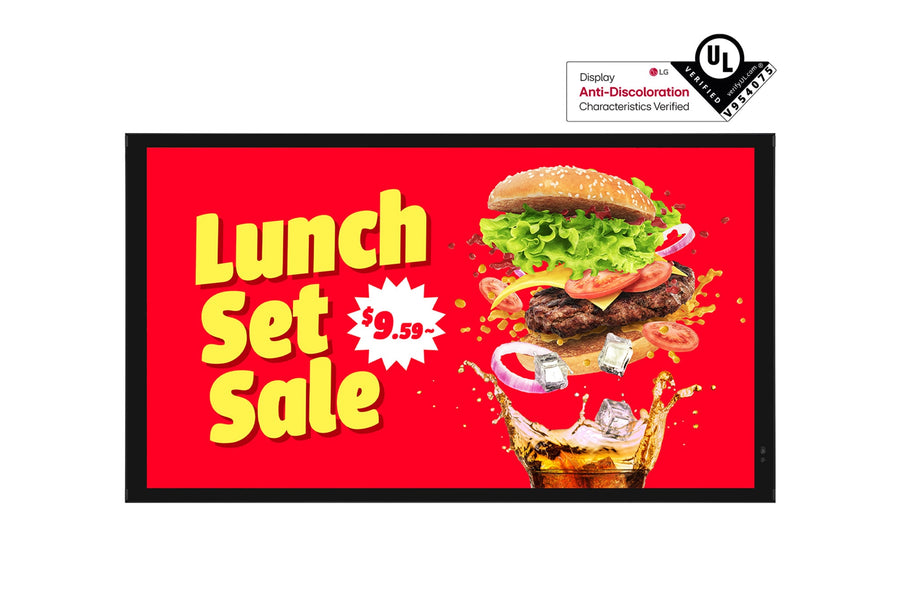

LG 55-inch Outdoor High-Brightness Digital Signage Display – 55XE4P-M

LG 55-inch Outdoor High-Brightness Digital Signage Display – 55XE4P-M

The LG 55XE4P-M is a 55-inch outdoor digital signage display for sunlit and high-ambient-light locations. It has a Full HD IPS panel with 4,000 nits typical brightness, IP56 rating, IK10 impact protection and built-in Wi-Fi. Procure.ae supplies the LG 55XE4P-M across the UAE.

The 55XE4P-M uses a 1920 x 1080 IPS panel with 4,000 nits typical brightness (3,200 nits minimum) and a 1,000:1 contrast ratio, with 500,000:1 dynamic contrast. Its 9 ms (G to G) response time and 60 Hz refresh rate suit video and motion graphics. The 16.7 million color depth and NTSC 72% gamut, with a 178° x 178° viewing angle, keep content readable from the side. The enclosure is IP56 and IK10 rated, and the tempered glass is shatter-proof, anti-reflective and supports direct sunlight viewing.

Procure.ae can supply the 55XE4P-M for outdoor screens, storefront and entrance displays, and sunlit indoor lobbies. It runs webOS 6.0 (6.1) with SuperSign CMS, SuperSign Control+, SuperSign Cloud and Connected Care for remote management. Playback features include local content scheduling, video tag (4), play via URL, PIP and PBP (2), and tile mode setting. Compared with the 55XE4P, it lists 16.7 million colors and a 9 ms response time, against 10-bit color and 8 ms on that model.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
4,000 nits (typical), 3,200 nits (minimum)
Type
Digital Signage Display
Weight
38 kg

Key features

01
High brightness
4,000 nits typical and 3,200 nits minimum for sunlit and outdoor spaces.
02
Weather-sealed build
IP56 rating with IK10 impact protection and conformal-coated power board.
03
Anti-reflective glass
Tempered, shatter-proof glass that reduces glare in bright light.
04
Full HD IPS panel
1920 x 1080 resolution, 16.7 million colors and NTSC 72% gamut.
05
Built-in Wi-Fi and Bluetooth
Wireless connectivity alongside RJ45 LAN in and out.
06
Remote management
SuperSign CMS, SuperSign Control+, SuperSign Cloud and Connected Care.
07
Video wall support
Tile mode setting, PIP and PBP (2) with portrait or landscape orientation.
08
Ports
HDMI In × 2, DisplayPort In × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 Type A × 2.

Specifications

General
Key Features4,000-nit typical brightness, IP56 and IK10 rating, Anti-reflective glass, Built-in Wi-Fi and Bluetooth, SuperSign CMS, Connected Care, 24/7 operation, Tile mode setting
Model55XE4P-M
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size38.4 mm top and bottom, 26 mm sides
Brightness4,000 nits (typical), 3,200 nits (minimum)
Color Depth16.7 million colors
Color GamutNTSC 72%
Contrast Ratio1,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time9 ms (G to G)
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.0 (6.1)
Storage16 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, RJ45 LAN In × 2, RJ45 LAN Out × 1, RS232C In/Out, USB 2.0 Type A × 2, External Speaker Out
Power
Standby Power0.5 W
Physical
Dimensions1292.5 x 737.4 x 88.0 mm
Operating Humidity5% to 100%
Operating Temperature-30 to 50 °C
Weight38 kg
Compliance
IP RatingIP56
