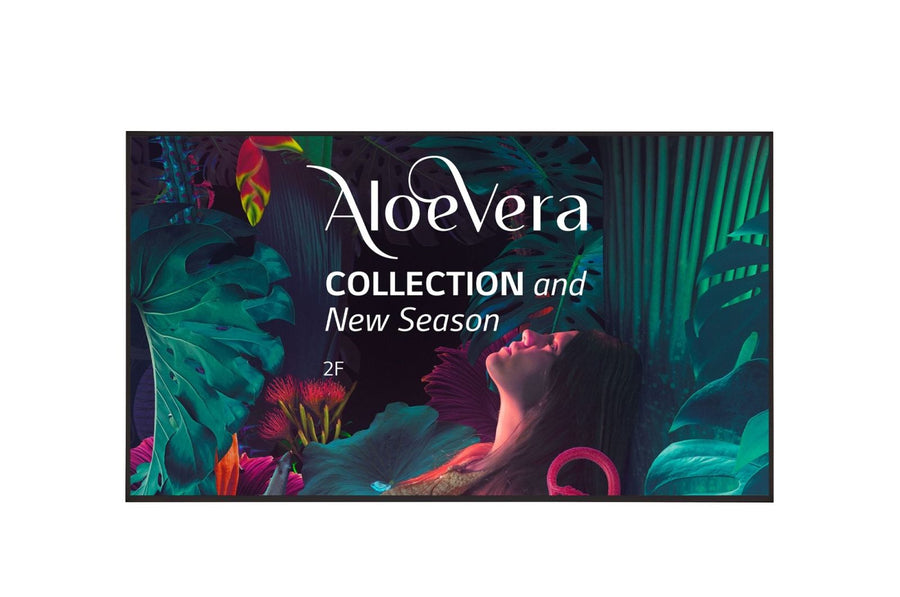

LG 49-inch UHD Signage Display 49UH5N-E

LG 49-inch UHD Signage Display 49UH5N-E

The LG 49UH5N-E is a discontinued 49-inch 4K UHD (3840 x 2160) digital signage display with an IPS panel, 500 nits typical brightness and webOS 6.0. It was built for continuous operation in lobbies, retail areas and meeting spaces. Procure.ae can confirm current availability in the UAE or recommend the current successor model.

The 49UH5N-E uses a 49-inch IPS panel with a native resolution of 3840 x 2160 and 500 nits typical brightness. Its contrast ratio is 1,100:1, and the panel covers 95% of the BT.709 colour gamut with 10-bit colour depth. The 60 Hz refresh rate and 6 ms rise / 9 ms fall response time suit video content, and the 178° viewing angle keeps images readable from the side. The display is rated for 24/7 operation in portrait or landscape orientation.

The 49UH5N-E runs webOS 6.0 with Local Contents Scheduling, Group Manager, Tile Mode Setting for up to 15 x 15 screens and Crestron and SNMP support. Its inputs include three HDMI ports, a DisplayPort input, RJ45 LAN, RS232C and IR, and it offers HDMI and DisplayPort daisy chaining. The VESA 300 x 300 mm interface and IP5X rating suit wall or stand installation.

Screen Size
49 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage Display
Weight
13.6 kg (without stand)

Key features

01
4K UHD resolution
3840 x 2160 IPS panel with 95% BT.709 colour gamut
02
Brightness
500 nits typical with a 1,100:1 contrast ratio
03
Built-in webOS
webOS 6.0 with local contents scheduling and group management
04
Tile mode
Tile Mode Setting for up to 15 x 15 screens
05
Daisy chain
HDMI and DisplayPort daisy chaining via RS232C and IR
06
Remote management
SuperSign CMS, SuperSign Cloud and Mobile CMS support
07
Connectivity
Three HDMI inputs, DisplayPort, RJ45 LAN and RS232C
08
Mounting
VESA 300 x 300 mm with IP5X dust resistance

Specifications

General
Key FeaturesIP5X dust resistance, HDMI and DisplayPort daisy chain, SuperSign CMS, SuperSign Cloud, Mobile CMS, Connected Care, Wi-Fi, auto brightness sensor, 24/7 operation
Model49UH5N-E
TypeDigital Signage Display
What's in the BoxRemote controller with batteries, power cord, quick setup guide, regulation book, phone-to-RS232C adapter, cable holder × 2, AC cord holder
Display
Aspect Ratio16:9
Brightness500 nits (typical)
Color Depth1.07 billion colours (10-bit)
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6 ms rise / 9 ms fall
Screen Size49 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.0
Storage16 GB internal
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3 (HDCP 2.2/1.4), DisplayPort In × 1, RJ45 LAN In, RS232C In/Out, IR In, USB 2.0 × 1, Audio Out
Wi-FiBuilt-in
Power
Power Consumption100 W typical, 140 W maximum
Physical
Dimensions1095.6 x 630.8 x 29.7 mm (without IR sensor)
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight13.6 kg (without stand)
Compliance
IP RatingIP5X
