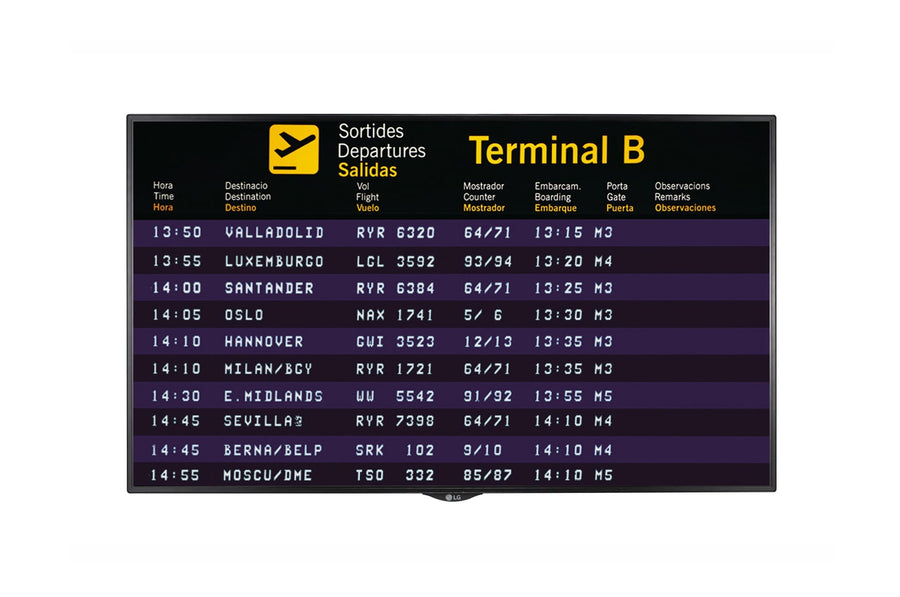

LG 42-inch High-Brightness FHD Digital Signage Display – 42SH7DB-M

LG 42-inch High-Brightness FHD Digital Signage Display – 42SH7DB-M

The LG 42SH7DB-M is a 42-inch Full HD (1920 x 1080) high-brightness digital signage display with a 700 nits module brightness rating. It has DisplayPort, DVI and analog RGB inputs, a 400 x 400 mm VESA mount interface and SuperSign-c and SuperSign-w lite software support. Procure.ae can confirm its availability in the UAE.

The 42SH7DB-M is a 42-inch Full HD signage display with a 700 nits module brightness rating, intended for bright venues and open spaces where messages must stay visible. It has DisplayPort, DVI and analog RGB inputs and a DisplayPort output for passing the signal on. Control is available over RS-232C and RJ45, and an IR receiver is supplied. The display can take an OPS module or an external media player, including the MP500 and MP700.

The display suits lobbies, open halls and retail spaces that run information or promotional loops. It uses a 400 x 400 mm VESA mount interface and has a 7.4 mm bezel. SuperSign-c and SuperSign-w lite software support content management. The manufacturer lists this model as discontinued, so buyers should confirm availability with Procure.ae before specifying it.

Screen Size
42 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits (module, typical)
Type
High-Brightness Digital Signage Display
Weight
12.5 kg

Key features

01
700 nits module brightness
rated for visible messages in bright venues and open spaces.
02
Full HD resolution
1920 x 1080 native resolution on a 42-inch panel.
03
OPS and media player support
OPS type compatible and attachable to the MP500 or MP700.
04
Multiple inputs
DisplayPort, DVI, analog RGB and USB connections.
05
RS-232C and RJ45 control
external control over serial and network ports, with an IR receiver.
06
VESA mounting
400 x 400 mm mount interface with a 7.4 mm bezel.
07
SuperSign software
SuperSign-c and SuperSign-w lite for content and control.

Specifications

General
ControlsRS-232C, RJ45, IR receiver, optional pixel sensor
Key FeaturesFull HD, 700 nits module brightness, OPS compatible, external media player support, SuperSign-c and SuperSign-w lite, RS-232C and RJ45 control
Model42SH7DB-M
TypeHigh-Brightness Digital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone to RS-232C gender adapter, IR receiver
Display
Bezel Size7.4 mm
Brightness700 nits (module, typical)
Resolution1920 x 1080 (Full HD)
Screen Size42 inch
Connectivity
OPS SlotOPS type compatible
PortsDisplayPort in × 1, DisplayPort out × 1, DVI × 1, Analog RGB × 1, USB × 1, audio out, external speaker out (L/R), RS-232C in and out, RJ45 control
Physical
Dimensions949 x 555 x 32 mm
VESA Mount400 x 400 mm
Weight12.5 kg
