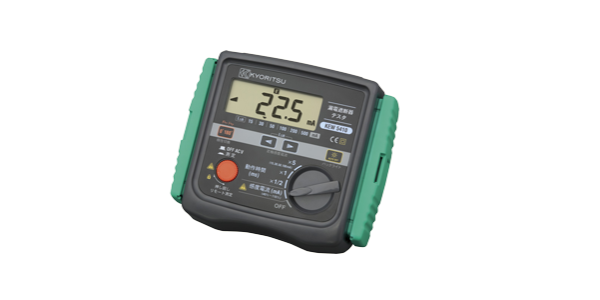

Kyoritsu Model 5410 RCD Tester

The Kyoritsu Model 5410 RCD Tester is a industrial tool available in the UAE from Procure.ae.

The Kyoritsu Model 5410 RCD Tester is a cutting-edge electrical testing device designed to ensure the safety and compliance of electrical installations. This versatile tester is essential for electricians and maintenance professionals who need to accurately measure and test residual current devices (RCDs) in various settings.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Weight

408.2 kg

Key features

Large LCD Display

Provides clear and easy-to-read measurement results.

Auto Ranging

Automatically adjusts the measurement range for enhanced accuracy.

Phase Switch Selection

Allows for testing of both single-phase and three-phase RCDs.

Tripping Time Measurement

Precisely measures the tripping time of RCDs for safety assessment.

Auto Start Function

Streamlines testing processes for improved efficiency.

Memory Function

Stores test results for convenient reference and analysis.

Adjustable Test Current

Offers flexibility in testing different types of RCDs.

USB Interface

Enables data transfer and analysis on external devices.

Specifications

Display
Display	Digital display

Performance
Accuracy	±3% ±3 dgt (50/60 Hz)
Measurement Range	Current: 10 to 500 mA (30 to 300 mA for Type B)

Power
Power Source	6xAA Alkaline Batteries or AC adapter (Optional)

Physical
Dimensions	192 x 140 x 72 mm
Operating Temperature	0°C to 40°C (32°F to 104°F)
Weight	408.2 kg

Compliance
Country of Origin	Japan
IP Rating	IP40 (Case closed), IP20 (Terminals accessible)
Warranty	1 year
