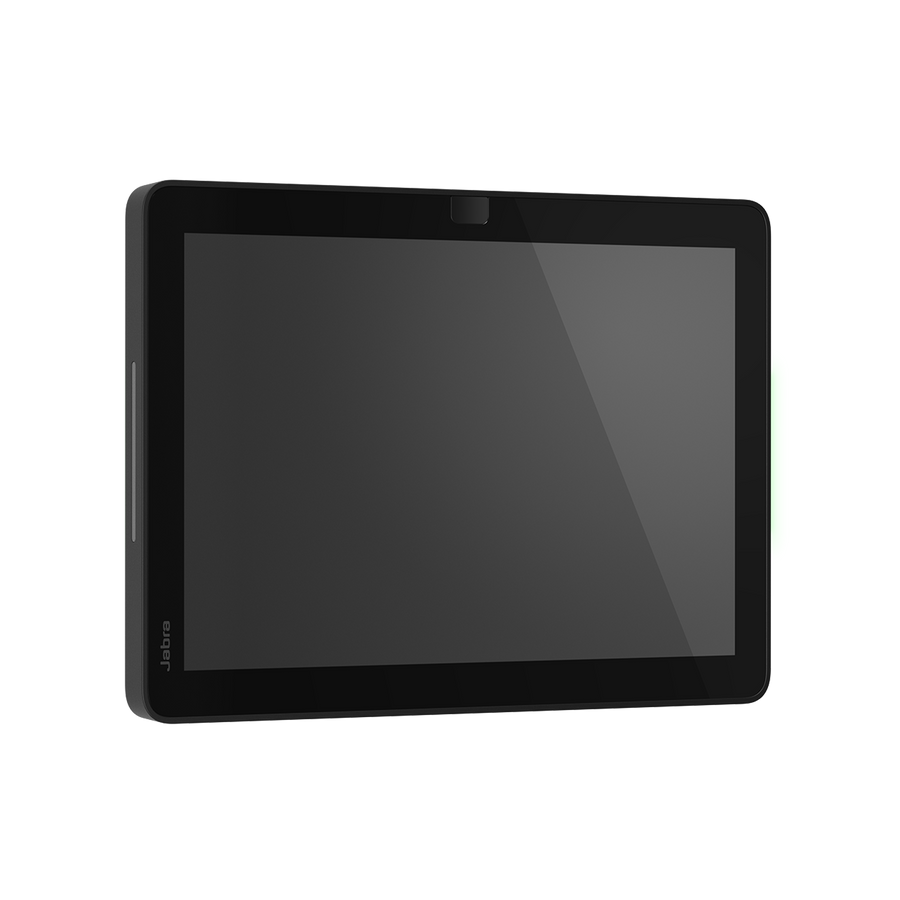

Jabra Scheduler Room Booking Panel – 8020-239

Jabra Scheduler Room Booking Panel – 8020-239

The Jabra Scheduler (8020-239) is a 10.1-inch room booking panel that shows whether a meeting room is free or reserved. It works with Microsoft Teams and Zoom Rooms scheduling and runs Android 13, powered over PoE. It mounts on a wall, mullion, glass or at an angle. Procure.ae supplies the Jabra Scheduler across the UAE.

The 1920 x 1200 touchscreen shows the current room status and what comes next. The lightbar is green when the room is available and red when it is reserved, and it is visible from a distance. Rooms can be booked in advance or on demand, and the panel shows availability at a glance. The manufacturer's specifications list Bluetooth 5.2 for future use and a 2-year warranty.

The Jabra Scheduler suits offices, meeting rooms and shared spaces that need a clear booking status beside each room. It works with Microsoft Teams and Zoom Rooms scheduling, and it supports log retrieval through the Jabra Web Console and Microsoft and Zoom based account authentication. Appliance mode and schedule view are included. Procure.ae supplies the Jabra Scheduler across the UAE and the wider Middle East and Africa, with delivery and installation available.

Screen Size
10.1 inch
Resolution
1920 x 1200
Brightness
300 nits
Type
Room Booking Panel
Weight
670.72 g

Key features

01
Room status lightbar
A color-coded lightbar shows room availability from a distance.
02
Touchscreen schedule
The 10.1-inch touchscreen shows the current room status and what is coming up next.
03
Teams and Zoom scheduling
Works with Microsoft Teams and Zoom Rooms scheduling.
04
Flexible mounting
Wall, mullion, 25-degree angled and glass mounting, with the mount included in the box.
05
Integrated cable management
Cable management keeps the installation tidy.
06
Secure boot
Lockdown with secure boot, OS verified boot and vendor lock.
07
Log retrieval
Logs can be retrieved through the Jabra Web Console.

Specifications

General
CompatibilityMicrosoft Teams, Zoom Rooms
Key FeaturesColor-coded room status lightbar, touchscreen schedule view, Teams and Zoom scheduling, appliance mode, flexible mounting, integrated cable management
ModelScheduler
TypeRoom Booking Panel
What's in the BoxJabra Scheduler, integral wall/table mount, mullion mount, glass mounting adhesive, screw tool
Display
Brightness300 nits
OrientationLandscape
Resolution1920 x 1200
Screen Size10.1 inch
TouchscreenYes
Performance
Operating SystemAndroid 13
Connectivity
BluetoothBluetooth 5.2 (for future use)
PoEIEEE 802.3af (PoE)
Wi-FiWi-Fi 802.11a/b/g/n/ac
Physical
Dimensions248.2 x 169.2 x 50.3 mm
MountingWall, mullion, 25-degree angled, glass
Weight670.72 g
Compliance
CertificationsMicrosoft Teams panel, Zoom Rooms scheduling display, ADA
Security FeaturesKensington lock, secure boot, OS verified boot, vendor lock, Simple Certificate Enrollment Protocol
Warranty2 years
