Jabra PanaCast 50 Video Bar System – PanaCast 50 VBS — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Jabra · PanaCast 50 VBS · Video Conferencing

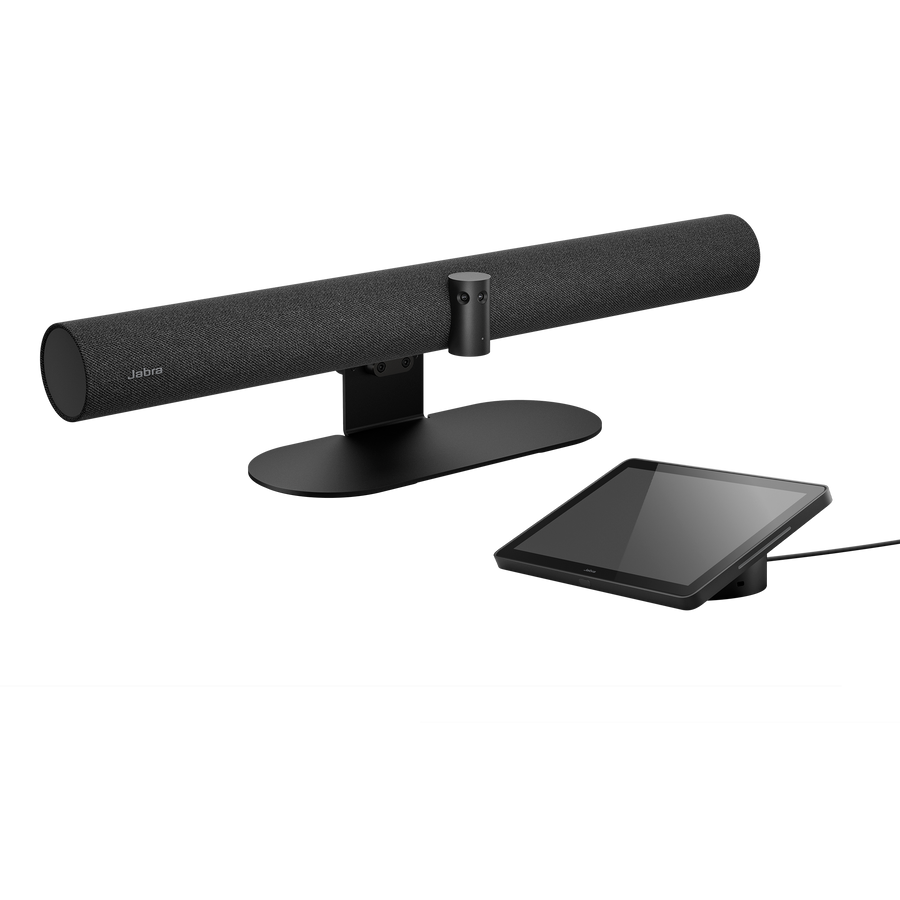

Jabra PanaCast 50 Video Bar System – PanaCast 50 VBS

Jabra PanaCast 50 Video Bar System – PanaCast 50 VBS

The Jabra PanaCast 50 VBS is an all-in-one video bar system for meeting rooms, with three 13-megapixel cameras, a 180° horizontal field of view and an eight-microphone array. It includes the PanaCast Control touchscreen and is certified for Microsoft Teams Rooms and Zoom Rooms. Procure.ae supplies the PanaCast 50 VBS across the UAE.

Three 13-megapixel cameras in a multi-camera array, with real-time AI video stitching, give a 180° horizontal and 54° vertical field of view. Intelligent Zoom and Virtual Director follow the speaker, and Dynamic Composition offers close-up views of people in the room with a full room view. Lossless digital zoom reaches 6x. Audio comes from an 8-microphone beamforming array with -37 dBFS sensitivity and four speakers with an 80 Hz to 20 kHz range, supported by precision voice detection and enhanced noise suppression. The system supports Vivid HDR and includes onboard AI.

The microphone array is certified for rooms up to 4.5 m x 6 m, and the system suits meeting rooms with a touch display. It is connected by USB-A, USB-C, Ethernet (RJ45) and Wi-Fi, with an HDMI input, and a PoE power injector is included. The PanaCast Control touchscreen tablet has a PIR motion sensor that wakes the system when someone enters the room. Remote management is available through Jabra WebConsole and the VaaS Admin Portal, and the system is certified for Microsoft Teams Rooms and Zoom Rooms.

Type
Video Bar System
Weight
2.26 kg (base unit)

Key features

01
180° field of view
Three 13 MP cameras with a 180° horizontal field of view.
02
Dynamic Composition
Close-up views of the most recent speakers with a full room view.
03
Intelligent Zoom
Up to 6x lossless digital zoom.
04
8-microphone array
Beamforming audio with -37 dBFS sensitivity.
05
Four speakers
Two 2-inch woofers and two 3/4-inch tweeters.
06
Onboard AI
Virtual Director and AI-based video features.
07
Touch control
PanaCast Control touchscreen with a PIR motion sensor.
08
Remote management
Jabra WebConsole and VaaS Admin Portal.

Specifications

General
CompatibilityMicrosoft Teams Rooms, Zoom Rooms; Jabra WebConsole, Jabra Plus; Microsoft Teams Admin Center, Zoom Device Management
Key FeaturesThree 13 MP cameras, 180° field of view, Virtual Director, Dynamic Composition, Intelligent Zoom, 8-microphone array, 4 speakers, onboard AI
ModelPanaCast 50 VBS
TypeVideo Bar System
What's in the BoxPanaCast 50 VBS base unit, power supply, wall mount, privacy cover with sensor, cable compartment cover and tool, PanaCast Control, PoE power injector, Ethernet and HDMI cables, regional power cable
Display
Camera3 cameras, panoramic multi-camera array, up to 3 x 13 MP
DisplaySupports up to 4K, touch display compatible
Viewing Angle180° horizontal, 54° vertical
ZoomUp to 6x lossless digital zoom
Performance
Storage Conditions-20 to 60 °C
Audio
Frequency Response80 Hz - 20 kHz (speakers)
Microphone8-microphone beamforming array, -37 dBFS sensitivity, 100 Hz - 16 kHz, certified for rooms up to 4.5 x 6 m
Microphone Type8-microphone beamforming array
Speaker Configuration4 speakers
Speaker Type2 x 2-inch (50 mm) woofers, 2 x 3/4-inch (20 mm) tweeters
Connectivity
BluetoothBluetooth 5.1
Ethernet10/100/1000 Mbps (RJ45), Auto-MDIX
Input Voltage100-240 V, 12 V, 5 A
InputsHDMI in × 1
PortsUSB-A, USB-C, Ethernet (RJ45), HDMI, Wi-Fi
ProtocolsUSB 2.0, USB 3.0; IPv4
USB PortsUSB-A, USB-C
Wi-FiWi-Fi
Physical
Dimensions730 x 77 x 146 mm (W x H x D, main unit)
Operating Temperature5 to 35 °C
Weight2.26 kg (base unit)
Compliance
CertificationsMicrosoft Teams Rooms, Zoom Rooms
Warranty2 years
