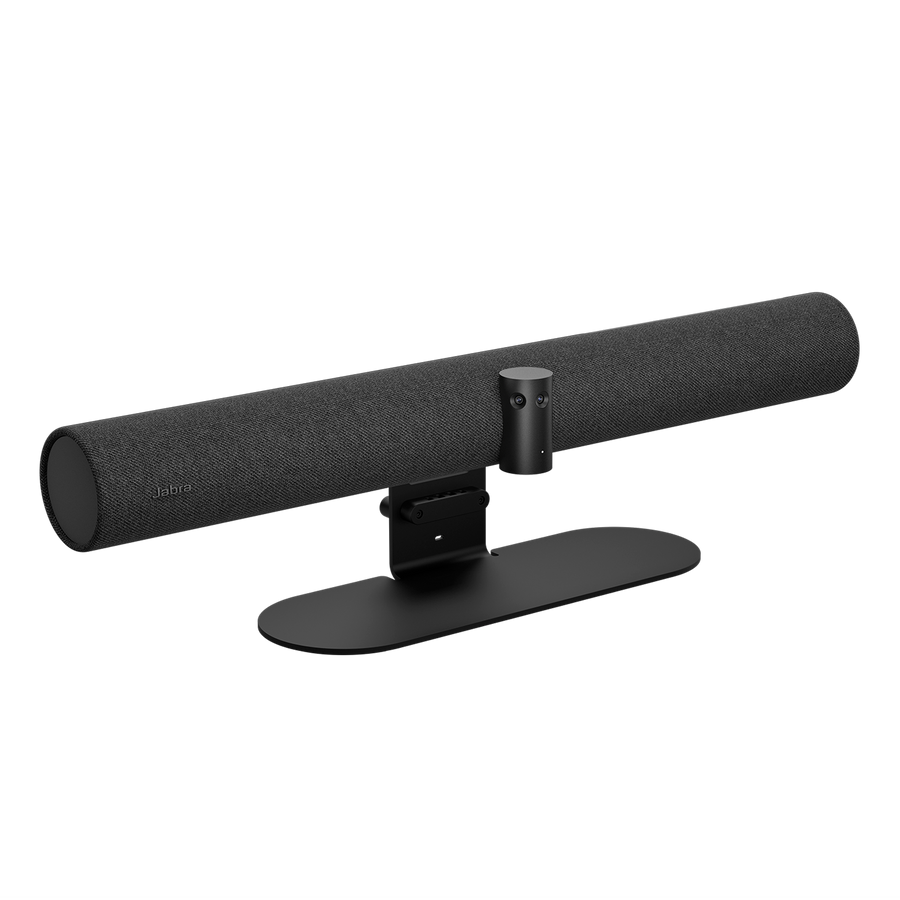

Jabra PanaCast 50 180° Video Bar – PanaCast 50

Jabra PanaCast 50 180° Video Bar – PanaCast 50

The Jabra PanaCast 50 is a video bar for meeting rooms that combines three 13-megapixel cameras, a 180° horizontal field of view and panoramic 4K video. Its eight-microphone beamforming array and four speakers support clear audio, and it is certified for Microsoft Teams Rooms and Zoom Rooms. Procure.ae supplies the PanaCast 50 across the UAE.

The PanaCast 50 uses three cameras in a multi-camera array with real-time AI video stitching, producing a panoramic 4K stream at 3840 x 1080 at 30 fps with a 180° horizontal and 54° vertical field of view. Intelligent Zoom and Virtual Director follow the people and the speaker, and Dynamic Composition offers a choice of room views. Lossless digital zoom goes up to 6x. The audio side uses an 8-microphone beamforming array with a sensitivity of -37 dBFS and four speakers with an 80 Hz to 20 kHz range, supported by full duplex and precision voice detection.

The bar connects by USB-A, USB-C and Ethernet (RJ45), with USB 2.0 and USB 3.0 support, and it is supplied with a wall mount and power supply. It works with Microsoft Teams Rooms, Zoom Rooms, Microsoft Teams and Zoom. Jabra Direct, Jabra Sound+ and Jabra Xpress are listed as compatible software, and the Software Development Kit (SDK) is available. Its 3.5 mm Aux-Out lets hearing aid users stream meeting audio directly to their hearing aids.

Resolution
3840 x 1080 (panoramic 4K) at 30 fps
Type
Video Bar
Weight
2.2 kg

Key features

01
180° panoramic 4K
Three 13 MP cameras with a 180° horizontal field of view.
02
Intelligent Zoom
Up to 6x lossless digital zoom.
03
Virtual Director
AI-based framing that follows the active speaker.
04
8-microphone beamforming
Sensitivity of -37 dBFS for clear pickup from across the room.
05
Four speakers
Two 2-inch woofers and two 3/4-inch tweeters with an 80 Hz to 20 kHz range.
06
Aux-Out
3.5 mm output for assistive listening devices.
07
People count
Integrated PeopleCount and whiteboard sharing.
08
Connectivity
USB-A, USB-C and Ethernet (RJ45), with USB 3.0 support.

Specifications

General
CompatibilityMicrosoft Teams, Microsoft Teams Rooms, Zoom Rooms, Zoom; Jabra Direct, Jabra Sound+, Jabra Xpress
Key FeaturesThree 13 MP cameras, 180° panoramic 4K, 6x lossless zoom, Virtual Director, 8-microphone beamforming, 4 speakers, Vivid HDR, PeopleCount
ModelPanaCast 50
TypeVideo Bar
What's in the BoxPanaCast 50, power supply, wall mount, USB-C to USB-A cable (2 m, USB 3.0)
Display
Camera3 cameras, 13 MP each, multi-camera array with real-time AI video stitching
Resolution3840 x 1080 (panoramic 4K) at 30 fps
Viewing Angle180° horizontal, 54° vertical
ZoomUp to 6x lossless digital zoom
Performance
DuplexFull duplex
Storage Conditions-20 to 60 °C
Audio
Frequency Response80 Hz - 20 kHz (speakers)
Microphone8-microphone beamforming array, -37 dBFS sensitivity, 100 Hz - 8 kHz
Microphone Type8-microphone beamforming array
Speaker Configuration4 speakers, zero-vibration stereo setup
Speaker Type2 x 2-inch (50 mm) woofers, 2 x 3/4-inch (20 mm) tweeters, 4 speakers
Connectivity
ConnectivityUSB-A, USB-C, Ethernet (RJ45); Bluetooth Low Energy (remote control and Sound+ access)
Ethernet10/100/1000 Mbps (RJ45)
PortsUSB-A, USB-C, Ethernet (RJ45)
ProtocolsUSB 2.0, USB 3.0
USB PortsUSB-A, USB-C
Physical
Dimensions650 x 80 x 125 mm (W x H x D)
Operating Temperature5 to 35 °C
Weight2.2 kg
Compliance
CertificationsMicrosoft Teams, Microsoft Teams Rooms (MTR), Zoom Rooms, Zoom
Warranty2 years
