Jabra PanaCast 40 Android Video Bar System – PanaCast 40 VBS — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Jabra · PanaCast 40 VBS · Video Conferencing

Jabra PanaCast 40 Android Video Bar System – PanaCast 40 VBS

Jabra PanaCast 40 Android Video Bar System – PanaCast 40 VBS

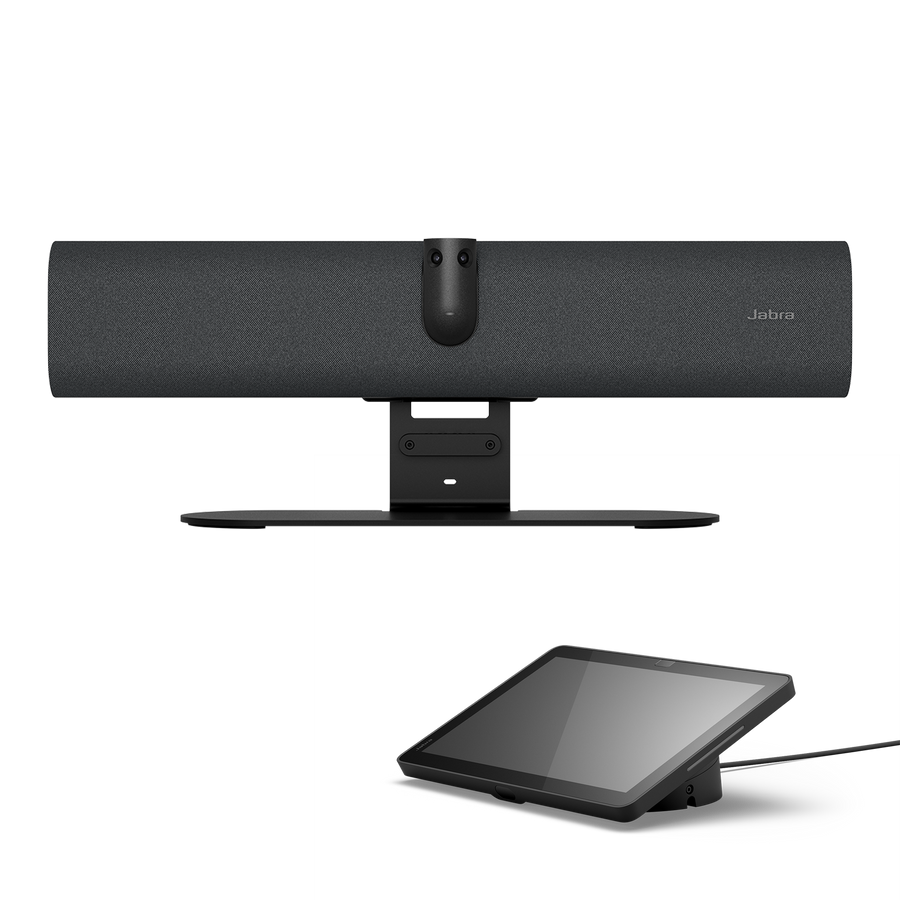

The Jabra PanaCast 40 VBS is an all-in-one Android video bar system for small meeting rooms and huddle spaces. Its dual panoramic camera gives a 180° horizontal field of view with up to 4x digital zoom, and it runs Android 13 with Microsoft Teams Rooms and Zoom Rooms support. Procure.ae supplies the PanaCast 40 VBS across the UAE.

The PanaCast 40 VBS uses two panoramic cameras with a 180° horizontal and 50° vertical field of view, and captures up to 3840 x 1080 px. Dynamic Composition shows close-up views of up to four people in the room alongside a full room view. Six microphones with -37 dBFS sensitivity and a 100 Hz to 16 kHz range feed a single speaker with an 80 Hz to 20 kHz range. Automatic speaker detection, full duplex and noise reduction with echo cancellation support natural conversation, and Virtual Director uses onboard AI to switch to the active speaker.

The bar is designed for rooms up to 4.5 m x 4.5 m. It connects through one HDMI input for content sharing, with USB-A, USB-C, Ethernet and Wi-Fi, and it supports Power over Ethernet (IEEE 802.3af). It can be mounted on a wall, on a VESA mount, on a table stand or on a tripod. Jabra Plus and the Jabra WebConsole provide remote device management, and the bar also supports native third-party apps. It is intended for Microsoft Teams Rooms and Zoom Rooms deployments.

Resolution
Up to 3840 x 1080 px (camera)
Type
Video Bar System
Weight
1.8 kg (base unit)

Key features

01
180° panoramic view
Dual cameras with a 180° horizontal field of view and 50° vertical.
02
Dynamic Composition
Close-up views of up to four people plus a full room view.
03
Virtual Director
AI-based video and audio streams detect and frame the current speaker.
04
Six microphones
Sensitivity of -37 dBFS with a 100 Hz to 16 kHz range.
05
Digital zoom
Up to 4x digital zoom.
06
Android 13
Runs Microsoft Teams Rooms for Android and Zoom Rooms.
07
Power over Ethernet
IEEE 802.3af, with 10/100/1000 Mbps Ethernet.
08
Remote management
Jabra Plus and Jabra WebConsole for admin control.

Specifications

General
CompatibilityMicrosoft Teams Rooms, Zoom Rooms; Jabra Plus, Jabra WebConsole
Key FeaturesDual panoramic camera, 180° field of view, Virtual Director, Dynamic Composition, Intelligent Meeting Space, Android 13, 6 microphones, PoE
ModelPanaCast 40 VBS
TypeVideo Bar System
What's in the BoxPanaCast 40 VBS, Jabra Control IP, USB-C to USB-C cable (3 m), power supply, privacy cover, HDMI cable (1.83 m), regional power cable
Display
CameraDual panoramic camera (2 cameras), 180° horizontal and 50° vertical field of view
Display10.1-inch control display, 1920 x 1200
ResolutionUp to 3840 x 1080 px (camera)
Viewing Angle180° horizontal, 50° vertical
ZoomUp to 4x digital zoom
Performance
Operating SystemAndroid 13
Audio
Frequency Response80 Hz - 20 kHz (speaker)
Microphone6 microphones, -37 dBFS sensitivity, 100 Hz - 16 kHz
Connectivity
BluetoothBluetooth 5.2
Ethernet10/100/1000 Mbps (RJ45)
Input Voltage100–240 V
InputsHDMI In × 1
PoEYes, IEEE 802.3af
PortsHDMI In × 1, USB-A, USB-C, Ethernet (RJ45), Wi-Fi, 3.5 mm jack
USB PortsUSB-A, USB-C
Wi-FiWi-Fi
Physical
Dimensions530 x 105 x 60 mm (W x H x D)
MountingWall mount, VESA mount, table stand or tripod
Weight1.8 kg (base unit)
Compliance
CertificationsMicrosoft Teams Rooms, Zoom Rooms, ADA
