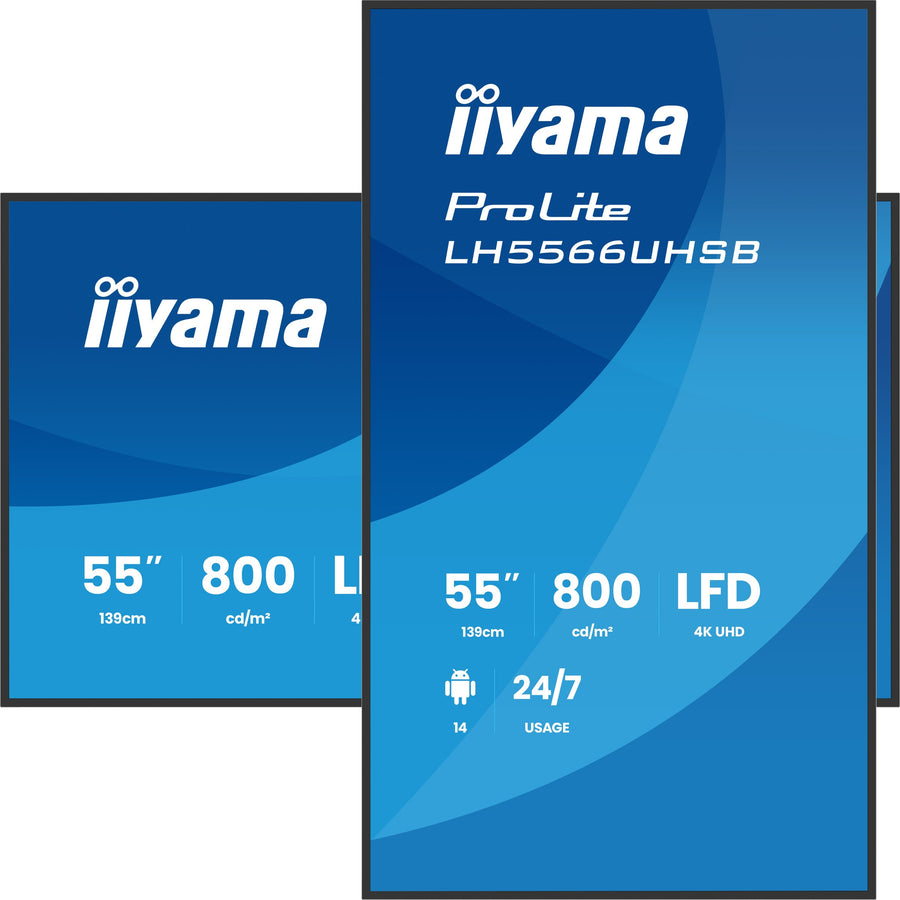

iiyama ProLite 55-inch 4K UHD Digital Signage Display – LH5566UHSB-B1AG

The iiyama ProLite LH5566UHSB-B1AG is a 55-inch 4K UHD digital signage display with an 800 cd/m² VA panel, Android 14 and built-in WiFi. It suits retail, corporate, hospitality and restaurant spaces that run content 24/7 in landscape or portrait. Procure.ae supplies the LH5566UHSB-B1AG across the UAE.

The 3840 x 2160 VA panel delivers 800 cd/m² brightness, 5000:1 static contrast and a 6.5 ms response time, with viewing angles of 178 degrees horizontally and vertically. Android 14 runs on the display, so apps install directly on it. iiSignage² manages content remotely, iiControl handles device management and iiShare supports wireless presentation. FailOver switches to the next available input when the default source has no signal, and anti image retention is included.

The display takes two HDMI 2.0 inputs and a USB-C input with DisplayPort Alt mode and 15 W power delivery. It has RS-232C control input and two RS-232C outputs, plus an IR loop-through for controlling several displays from one source. It mounts on a 400 x 400 mm VESA pattern and supports landscape and portrait orientation. The IP5X front rating covers dust protection, and the design is fanless.

Screen Size

55 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

800 nits

Type

Professional Digital Signage Display

Weight

13.09 kg

Key features

Android 14 platform

install apps directly on the display.

800 cd/m² VA panel

high-brightness panel for well-lit spaces.

4K UHD resolution

3840 x 2160 pixels on a 55-inch screen.

iiSignage² CMS

remote management of messages and advertising.

FailOver input switching

moves to the next available input when no signal is detected.

Landscape and portrait

orientation support for flexible placement.

IP5X front protection

dust protection rating on the front of the display.

Built-in WiFi

2.4 GHz and 5 GHz connectivity for remote content delivery.

Specifications

General
Application	Retail, corporate, hospitality, restaurants
Key Features	Android 14, 800 cd/m² VA panel, iiSignage² CMS, iiControl and iiShare, FailOver input switching, built-in WiFi, IP5X front protection, 24/7 operation
Model	LH5566UHSB-B1AG
Type	Professional Digital Signage Display

Display
Aspect Ratio	16:9
Bezel Size	12.8 mm (sides, top and bottom)
Brightness	800 nits
Color Depth	8-bit + FRC
Color Gamut	NTSC 72%
Contrast Ratio	5,000:1
Orientation	Landscape, portrait
Panel Technology	VA
Refresh Rate	60 Hz
Resolution	3840 x 2160 (4K UHD)
Response Time	6.5 ms
Screen Size	55 inch
Viewing Angle	178° horizontal / 178° vertical

Performance
Operating System	Android 14

Audio
Speaker Output	2 x 10 W

Connectivity
Input Voltage	100–240 V AC, 50/60 Hz
Ports	HDMI 2.0 x2, USB-C x1 (DP Alt, 15 W PD), RS-232C in x1, RS-232C out x2, RJ45 LAN x1, IR in x1, IR loop-through x1, USB 2.0 x2, 3.5 mm audio out
Wi-Fi	Wi-Fi 5, 2.4 GHz / 5 GHz

Power
Power Consumption	144 W (typical)

Physical
Color	Black
Dimensions	1238.5 x 709.2 x 70 mm
Duty Cycle	24/7
Operating Temperature	0 to 40 °C
VESA Mount	400 x 400 mm
Weight	13.09 kg

Compliance
Certifications	CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
IP Rating	IP5X (front)
