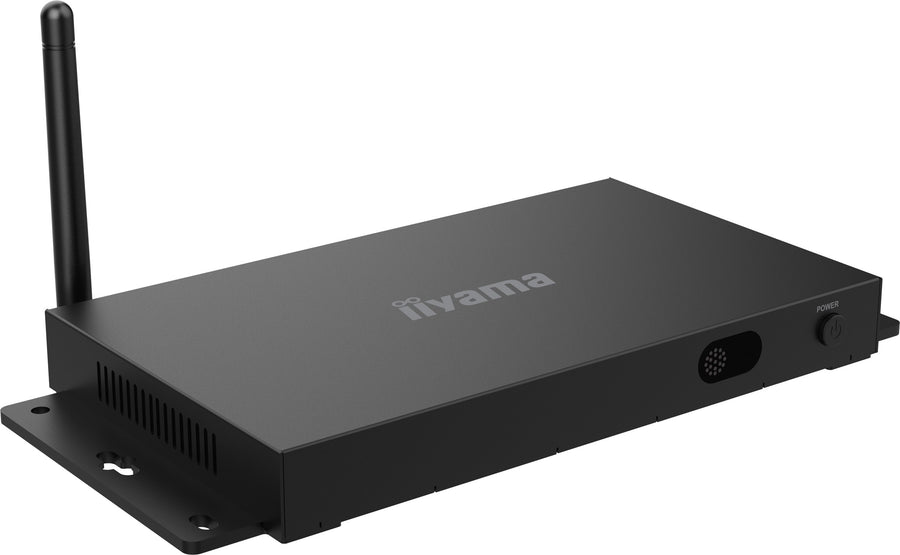

iiyama iiSignage Box Android Media Player – IISIGNAGEBOX-1

The iiyama IISIGNAGEBOX-1 is a compact Android signage media player that connects to a compatible large-format display. It has an octa-core RK3576 processor, 4 GB of RAM and Wi-Fi, and runs iiSignage² content managed through a secure cloud platform. Procure.ae is an authorised reseller of iiyama and supplies the IISIGNAGEBOX-1 across the UAE.

The IISIGNAGEBOX-1 uses an octa-core RK3576 processor with four Cortex-A53 and four Cortex-A72 cores, paired with 4 GB of RAM. Wi-Fi supports IEEE 802.11 a/b/g/n/ac/ax, and a 10/100 Mbps RJ45 port provides wired networking. Its HDMI output supports CEC, so compatible displays can be controlled through the HDMI connection. At 216 x 105 x 21.8 mm and 0.66 kg, the box mounts with a VESA pattern of up to 200 x 75 mm.

The player connects to a compatible large-format display and runs iiSignage² right away, so it suits sites that already have displays but need a managed Android player. It draws 1.2 W typical and uses an external power supply. The operating range is 0 to 40 °C with 10% to 80% humidity. For a Windows-based player with more processing power, the SDM51201BC-1L is the alternative in this range.
