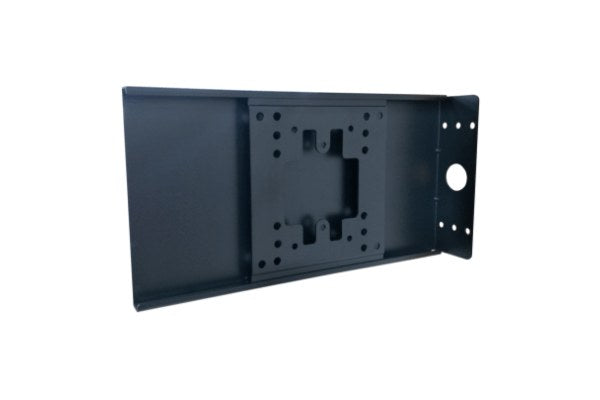

IAdea Window Mount Kit for 10-inch and 15-inch Signboards – PWM-041

The IAdea PWM-041 is a metal window mount kit for 10-inch and 15-inch IAdea signboards, with a 40 mm L-shape mount and a 608 g net weight. It routes the power or Ethernet cable through the window frame and fits the XDS-1078, XDS-1088, XDS-1588 and WRP-1000 series. Procure.ae supplies it in the UAE.

The PWM-041 kit includes a metal L-shape mount measuring 258.5 x 133.8 x 40 mm and a 115 x 128 x 7.5 mm VESA plate, with a net weight of 608 g. The box holds a split nylon snap bush, four M3 x 6L screws, four M4 x 8L screws and four window frame screws. The L-shape mount is fixed to the window frame with adhesive tape and at least two window frame screws. The signboard is then fixed to the VESA plate with M4 x 8L screws, and M3 x 6L screws lock the plate to the bracket rails.

The PWM-041 suits 10-inch and 15-inch signboards in the XDS-1078, XDS-1088, XDS-1588 and WRP-1000 series. VESA plate alignment is 75 x 75 mm for XDS-1078, XDS-1088 and WRP-1000 units and 100 x 100 mm for XDS-1588 units, and WRP-1000 units use M4 x 12L screws. The guide assumes PoE from the signboard over an Ethernet cable, and a signboard that needs a power cord needs a second cord routed the same way. The PWM-011 is the 10 mm L-shape version of this kit.
