IAdea Window Mount Kit for 10-inch and 15-inch Signboards – PWM-011

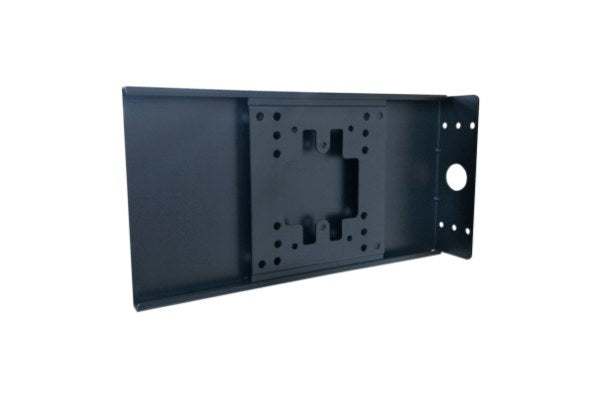

The IAdea PWM-011 is a metal window mount kit for 10-inch and 15-inch IAdea signboards. It uses an L-shape bracket and a VESA plate, with the power or Ethernet cable routed through the window frame. The kit fits the XDS-1078, XDS-1088, XDS-1588 and WRP-1000 series, and Procure.ae supplies it in the UAE.

The PWM-011 kit includes a metal L-shape mount measuring 258.5 x 133.8 x 10 mm and a 115 x 128 x 7.5 mm VESA plate, with a net weight of 533 g. The box holds four M3 x 6L screws, four M4 x 8L screws and four window frame screws. The L-shape mount is fixed to the window frame with adhesive tape and at least two window frame screws. The signboard is fixed to the VESA plate with M4 x 8L screws, the plate slides along the bracket rails, and M3 x 6L screws secure it.

The PWM-011 suits 10-inch and 15-inch signboards in the XDS-1078, XDS-1088, XDS-1588 and WRP-1000 series. The VESA plate alignment differs by series, at 75 x 75 mm for XDS-1078, XDS-1088 and WRP-1000 units and 100 x 100 mm for XDS-1588 units, so follow the colour-coded guide before drilling. The guide assumes PoE from the signboard over an Ethernet cable, and a signboard that needs a power cord needs a second cord routed the same way. The PWM-041 uses a 40 mm L-shape mount instead.
