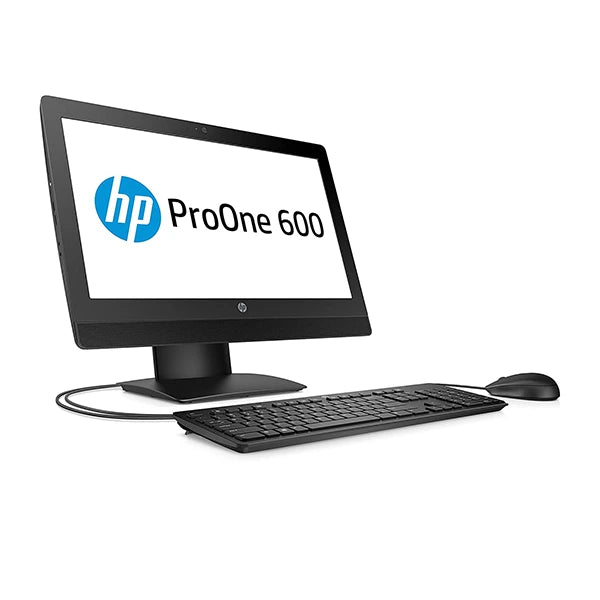

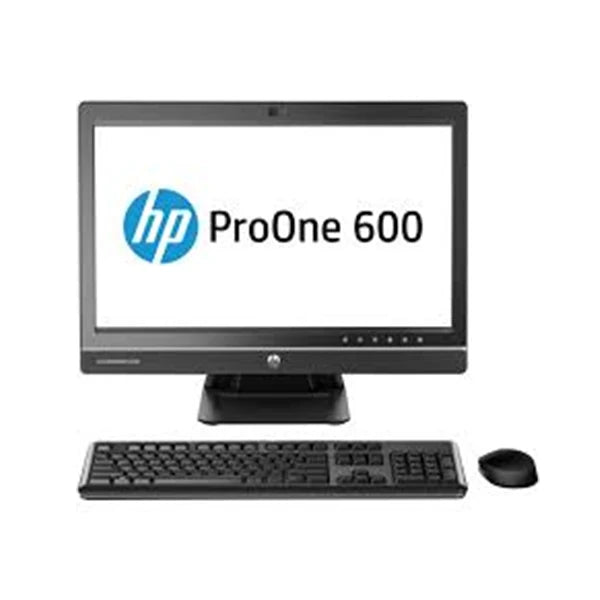

HP ProOne 600 G3 54.61 cm (21.5″) Non-Touch All-in-One PC

Specification

System features

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
Windows 10 Pro 64 (National Academic License) 2
Windows 10 Home Single Language 64 1
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) 2
FreeDOS 2.0

Processor family

6th Generation Intel® Core™ i3 processor
7th Generation Intel® Core™ i3 processor
6th Generation Intel® Core™ i5 processor
7th Generation Intel® Core™ i5 processor
6th Generation Intel® Core™ i7 processor
7th Generation Intel® Core™ i7 processor
Intel® Pentium® processor (G4600, G4440. Please refer to Microsoft support disclaimer)
Intel® Celeron® processor (G3930. Please refer to Microsoft support disclaimer) 22

Processor

Intel® Core™ i3-6100 with Intel® HD Graphics 530 (3.7 GHz, 3 MB cache, 2 cores)
Intel® Core™ i3-7100 with Intel® HD Graphics 630 (3.9 GHz, 3 MB cache, 2 cores)
Intel® Core™ i5-6500 with Intel® HD Graphics 530 (3.2 GHz base frequency, up to 3.6 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i5-6600 with Intel® HD Graphics 530 (3.3 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i5-7500 with Intel® HD Graphics 630 (3.4 GHz base frequency, up to 3.8 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i5-7600 with Intel® HD Graphics 630 (3.5 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost, 6 MB cache, 4 cores)
Intel® Core™ i7-6700 with Intel® HD Graphics 530 (3.4 GHz base frequency, up to 4 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i7-7700 with Intel® HD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Pentium® G4440 with Intel® HD Graphics 510 (3.3 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G4600 with Intel® HD Graphics 630 (3.6 GHz, 3 MB cache, 2 cores)
Intel® Celeron® G3930 with Intel® HD Graphics 610 (2.9 GHz, 2 MB cache, 2 cores) 3

Chipset

Intel® Q270

Form factor

All-in-one

Management features

HP Client Catalog; LANDESK Management; HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Manageability Integration Kit (MIK) for Microsoft SCCM; HP SoftPaq Download Manager (SDM) 19,21

Environmental

Low halogen 16

Memory

Maximum memory

32 GB DDR4-2400 SDRAM
(Transfer rates up to 2400 MT/s )

Memory Slots

2 SODIMM

Storage

Internal drive bays

One 2.5"

External drive bays

One slim ODD (optional); One SD 3 card reader (optional)

Internal drive

500 GB up to 1 TB SATA (7200 rpm) 4
500 GB up to 1 TB SATA SSHD 4
256 GB up to 512 GB SATA TLC SSD 4
256 GB up to 512 GB SATA SED SSD 4
256 GB up to 512 GB NVMe SSD (M.2 PCIe) 4
256 GB up to 1 TB NVMeTLC SSD (M.2 PCIe) 4

Optical drive

HP 9.5 mm Slim DVD-ROM (optional)
HP 9.5 mm Slim DVD-Writer (optional) 5,6

Expansion features

Ports

Left:
1 headphone/microphone combo
2 USB 3.1 25
Back:
2 USB 2.0
1 RJ-45
1 serial
2 PS/2 (keyboard and mouse)
2 USB 3.1
1 DisplayPort™ 1.2 24,25

Expansion slots

2 M.2
(1 M.2 slot for WLAN and 1 M.2 slot for storage)

Media devices

Audio

Audio Controls with Conexant CX5001 codec, microphone/headphone side port (3.5 mm), high performance integrated stereo speakers (2W internal speaker)

Communications

Network interface

LANIntel® I219LM GbE
WLANIntel® 8265 802.11ac (2x2) wireless and Bluetooth® Combo, card vPro™
Intel® 8265 802.11ac (2x2) wireless and Bluetooth® Combo, card non-vPro™
Intel® Dual Band Wireless-AC 7265 802.11ac (2x2) and Bluetooth® 4.0 Combo, non-vPro™ 7

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® registered configurations available 15

Power supply

• 160 W internal, up to 90% efficient, active PFC

Dimensions and weight

Dimensions (W x D x H)

531.39 x 371.68 x 51.69 mm
(System outling dimension (without stand))

Weight

6.38 kg
(Weight without stand. Exact weight depends on configuration.)
