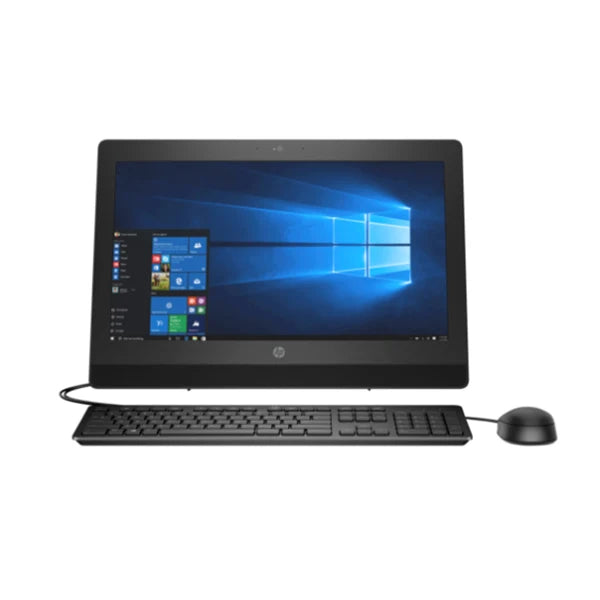

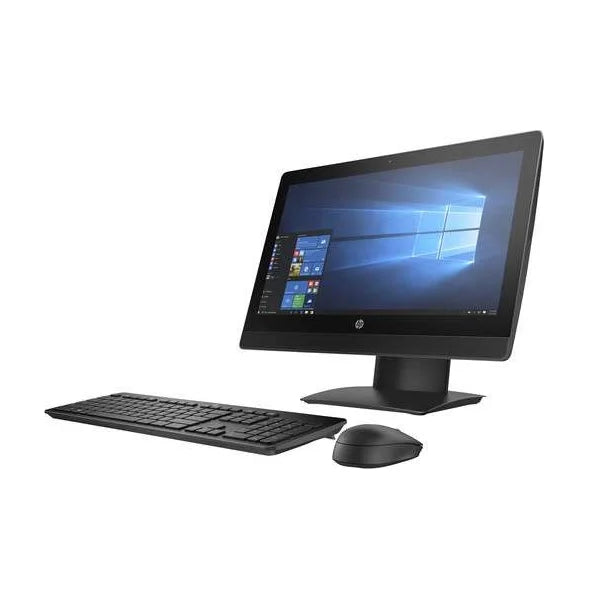

HP ProOne 400 G3 50.8 cm (20”) Non-Touch All-in-One PC

Specification

System features

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
Windows 10 Home Single Language 64 1
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) 16
FreeDOS 2.0

Processor family

6th Generation Intel® Core™ i3 processor
6th Generation Intel® Core™ i5 processor
6th Generation Intel® Core™ i7 processor
7th Generation Intel® Core™ i3 processor (i3-7100T)
7th Generation Intel® Core™ i5 processor (i5-7500T)
7th Generation Intel® Core™ i7 processor (i7-7700T)
Intel® Celeron® processor (G3900T is Windows 10 only)
Intel® Celeron® processor (G3930T is Windows 10 only)
Intel® Pentium® processor (G4400T is Windows 10 only)
Intel® Pentium® processor (G4560T is Windows 10 only) 3

Processor

Intel® Celeron® G3900T with Intel® HD Graphics 510 (2.6 GHz, 2 MB cache, 2 cores)
Intel® Celeron® G3930T with Intel® HD Graphics 610 (2.7 GHz, 2 MB cache, 2 cores)
Intel® Core™ i3-6100T with Intel® HD Graphics 530 (3.2 GHz, 3 MB cache, 2 cores)
Intel® Core™ i3-7100T with Intel® HD Graphics 630 (3.4 GHz, 3 MB cache, 2 cores)
Intel® Core™ i5-6500T with Intel® HD Graphics 530 (2.5 GHz base frequency, up to 3.1 GHz with Intel® Turbo Boost, 6 MB cache, 4 cores)
Intel® Core™ i5-7500T with Intel® HD Graphics 630 (2.7 GHz base frequency, up to 3.3 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i7-6700T with Intel® HD Graphics 530 (2.8 GHz base frequency, up to 3.6 GHz with Intel® Turbo Boost, 8 MB cache, 4 cores)
Intel® Core™ i7-7700T with Intel® HD Graphics 630 (2.9 GHz base frequency, up to 3.8 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Pentium® G4400T with Intel® HD Graphics 510 (2.9 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G4560 with Intel® HD Graphics 610 (3.5 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G4560T with Intel® HD Graphics 610 (2.9 GHz, 3 MB cache, 2 cores) 2

Chipset

Intel® H270

Form factor

All-in-one

Management features

HP Client Catalog; LANDESK Management; HP SoftPaq Download Manager (SDM); HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP MIK for Microsoft SCCM 13,14

Environmental

Low halogen 12

Memory

Maximum memory

32 GB DDR4-2400 SDRAM
(Transfer rates up to 2400 MT/s )

Memory Slots

2 SODIMM

Storage

Internal drive bays

One 2.5"

External drive bays

One slim ODD; One SD 3 card reader (optional)

Internal drive

500 GB up to 1 TB SATA (7200 rpm) 4
256 GB up to SATA TLC SSD 4
256 GB up to M.2 PCIe SSD 4
16 GB NVMe TLC SSD (M.2 PCIe) 4

Optical drive

HP 9.5 mm Slim DVD-Writer 5,20

Display and graphics

Display

• 20" diagonal HD+ anti-glare WLED-backlit (1600 x 900)

15,20

Graphics

Integrated:
Intel® HD Graphics 7
(Intel® HD Graphics integrated on processor)

Webcam

1 MP webcam with integrated dual array digital microphone, maximum resolution of 1280 x 720 8,19

Expansion features

Ports

Left:
1 headphone/microphone combo
2 USB 3.1 Gen 1 (1 charging) 22
Back:
1 RJ-45
2 USB 2.0
1 DisplayPort™ 1.2
1 serial and PS/2 ports combination
2 PS/2 (keyboard and mouse)
2 USB 3.1 Gen 1 (2 charging) 22,23
(1 serial and PS/2 ports combination and 2 PS/2 (keyboard and mouse) are optional.)

Expansion slots

2 M.2
1 SD 3 media card reader 18
(1 M.2 slot for WLAN and 1 M.2 slot for storage)

Media devices

Audio

Audio Controls with Conexant CX5001 codec, microphone/headphone side port (3.5 mm), high performance integrated stereo speakers (2W internal speaker)

Communications

Network interface

LANRealtek RTL8111HSH-CG GbE Ethernet Controller
WLANIntel® Dual Band Wireless-AC 7265 802.11ac (2x2) and Bluetooth® 4.0 Combo 6

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® registered configurations available 11

Power supply

• 90 W, up to 89% efficient, active PFC (external)

Dimensions and weight

Dimensions (W x D x H)

49.77 x 34.7 x 5.8 cm
(Without stand)

Weight

5.51 kg
(Without stand. Exact weight depends on configuration)
