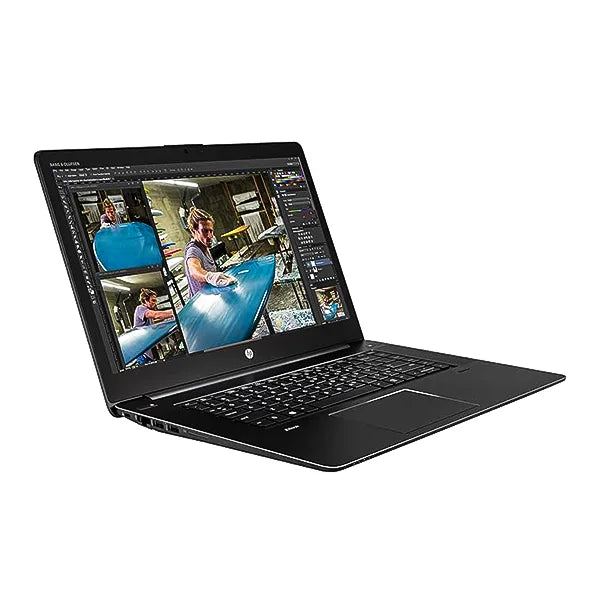

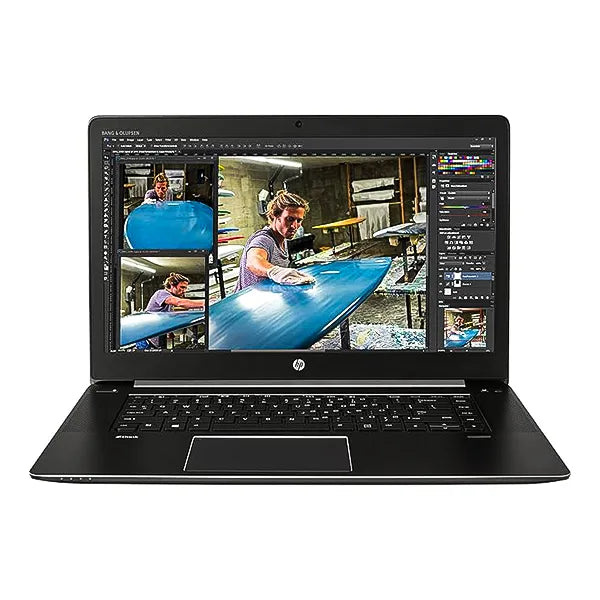

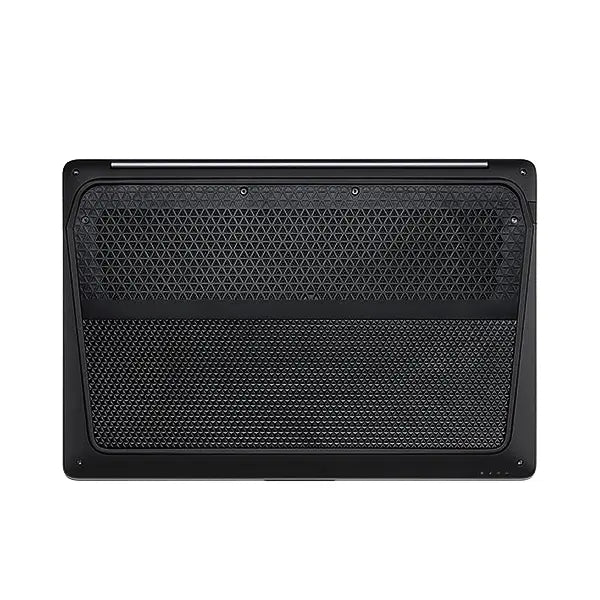

HP Mobile Workstation ZBook Studio G3

Specification

System features

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
Windows 7 Professional 64 1
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro 64) 2
FreeDOS 2.0
Red Hat® Enterprise Linux® 6 & 7 (web support only)
(No Linux preloaded. Customer is responsible to obtain their own distribution.)

Processor family

Intel® Xeon® processor
6th Generation Intel® Core™ i7 processor 3

Processor

Intel® Xeon® E3-1545M v5 with Intel® Iris™ Pro Graphics P580 (2.9 GHz, up to 3.8 GHz with Intel Turbo Boost Technology, 8 MB L3 cache, 4 cores)
Intel® Xeon® E3-1505M v5 with Intel HD graphics P530 (2.80 GHz, up to 3.70 GHz with Intel Turbo Boost Technology, 8 MB L3 cache, 4 cores)
Intel® Core™ i7-6820HQ with Intel HD graphics 530 (2.70 GHz, up to 3.60 GHz with Intel Turbo Boost Technology, 8 MB L3 cache, 4 cores)
Intel® Core™ i7-6700HQ with Intel HD graphics 530 (2.60 GHz, up to 3.50 GHz with Intel Turbo Boost Technology, 6 MB L3 cache, 4 cores) 3

Chipset

Mobile Intel® CM236

Environmental

Low halogen 15

Memory

Maximum memory

32 GB DDR4-2133 ECC or non-ECC SDRAM
(Transfer rates up to 2133 MT/s. Non-ECC memory only available with Intel® Core™ procesors. ECC memory only available with Intel® Xeon® processors. )

Memory Slots

2 SODIMM

Storage

Internal drive

128 GB up to 512 GB M.2 SATA SSD 5
256 GB up to 512 GB M.2 SATA SED SSD 5
256 GB up to 1 TB HP Z Turbo Drive G2 (NVMe PCIe SSD) 5

Display and graphics

Display

• 39.6 cm (15.6") diagonal FHD UWVA IPS anti-glare LED-backlit (1920 x 1080)
• 39.6 cm (15.6") diagonal FHD Touch UWVA IPS LED-backlit (1920 x 1080)
• 39.6 cm (15.6") diagonal UHD UWVA IPS anti-glare LED-backlit (3840 x 2160)
• 39.6 cm (15.6") diagonal UHD DreamColor UWVA IPS anti-glare LED-backlit (3840 x 2160)

Graphics

Discrete:
HP ZBook Studio special edition NVIDIA® Quadro® M1000M (4 GB dedicated GDDR5)
(Extra 2 GB of graphics memory provides enhanced application performance with larger graphics datasets.)

Expansion features

Ports

Left side:
1 RJ-45
1 USB 3.0
1 USB 3.0 (charging)
Right side:
1 power connector
2 Thunderbolt™ 3
1 HDMI 1.4
1 USB 3.0
1 stereo microphone-in/headphone-out combo 6

Expansion slots

1 SD UHS-II flash media
(SD supports next generation secure digital and is backward compatible to SDHC, SDXC)

Audio

• Bang & Olufsen HD audio. Integrated stereo speakers and microphone (dual-microphone array when equipped with optional webcam). Button for volume mute, functions keys for volume up and down. Combo microphone-in/stereo headphone-out jack.

Camera

720p HD webcam 8

Keyboard

HP Spill Resistant Keyboard (backlit with function key control)

Pointing device

Image sensor clickpad with on/off button, two-way scroll, gestures, two buttons

Communications

Network interface

Integrated Intel® I219-LM Gigabit Network Connection

Dimensions and weight

Dimensions (W x D x H)

375 x 255 x 18 mm

Weight

Starting at 2 kg
(Weight varies by configuration and components)
