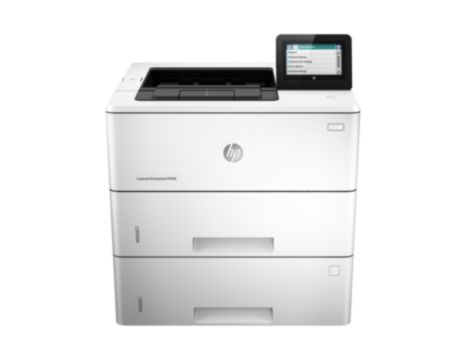

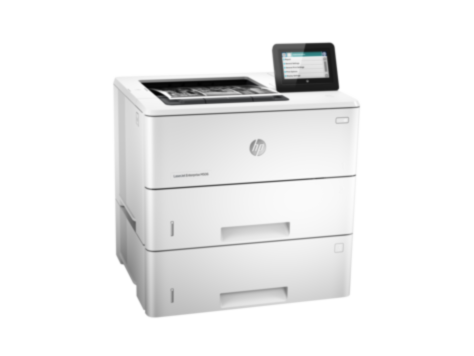

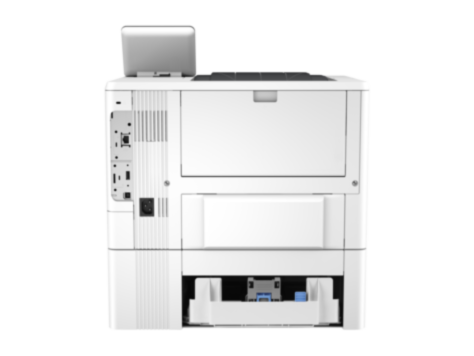

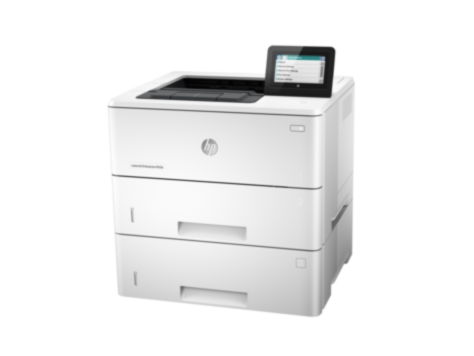

HP LaserJet Enterprise M506x

Specification

Printing Specifications

Print speed black:

Normal: Up to 43 ppm 1

First page out (ready)

Black: As fast as 5.9 sec 2

Print quality black (best)

• Up to 1200 x 1200 dpi

Print Resolution Technologies

300 dpi, 600 dpi, HP FastRes 1200, HP ProRes 1200

Duty cycle (monthly, A4)

Up to 150,000 pages 3

Recommended monthly page volume

2,000 to 7,500 4

Print technology

• Laser

Processor speed

1.2 GHz

Print languages

HP PCL 6, HP PCL 5 (HP PCL 5 driver available from the Web only), HP Postscript Level 3 emulation, native PDF printing (v1.7)

Display

• 10.9 cm (4.3") colour touchscreen

Replacement cartridges

HP 87A Black Original LaserJet Toner Cartridge (9,000 pages) CF287A
HP 87X Black Original LaserJet Toner Cartridge (18,000 pages) CF287X 9

Connectivity

HP ePrint capability

Yes

Mobile printing capability

HP ePrint
Apple AirPrint™
Mopria™-certified
NFC Touch-to-print
Wireless Direct Printing 4

Wireless capability

• Yes, built-in NFC Touch-to-Print
• Wireless direct printing

Connectivity, standard

• Hi-Speed USB 2.0 port
• Built-in Fast Ethernet 10Base-T/100Base-Tx, Gigabit Ethernet 1000Base-T

Connectivity, optional

• HP Jetdirect 2900nw Print Server J8031A

Network ready

Standard (built-in Gigabit Ethernet)

Minimum system requirements

• Windows 10 all 32 & 64-bit editions (excluding RT OS for tablets), Windows 8/8.1 all 32 & 64-bit editions (excluding RT OS for tablets), Windows 7 all 32 & 64-bit editions, Windows Vista all 32-bit editions (Home Basic, Premium, Professional, etc)
• CD-ROM, DVD drive or Internet connection
• Dedicated USB, network or wireless connection
• 200 MB available hard disk space
• OS compatible hardware (for OS hardware requirements, see http://www.microsoft.com)

• Mac OS X 10.8 Mountain Lion, OS X 10.9 Mavericks, OS X 10.10 Yosemite
• Internet
• USB
• 1 GB available hard disk space
• OS compatible hardware (for OS hardware requirements, see http://www.apple.com)

Memory specifications

Memory

512 MB

Maximum memory

1.5 GB

Internal Storage

• Optional, 500 GB minimum encrypted hard disk drive

Paper handling

Paper handling input, standard

• 100-sheet multipurpose Tray 1
• 550-sheet input Trays 2 and 3
• automatic duplex printing

Paper handling input, optional

Up to 2 optional 550-sheet paper feeders 17

Paper handling output, standard

• 250-sheet output bin

Maximum output capacity (sheets)

Up to 250 sheets

Duplex printing

• Automatic (standard)

Media sizes supported

• Tray 1: A4, A5, A6, B5, 10 x 15 cm, post cards (JIS single and double), envelopes (DL, C5, C6, B5)
• Tray 2: A4, A5, B5, double postcard
• Optional trays 3+: A4, B5, double postcard
• Optional Automatic Duplexer: A4

Media sizes, custom

Tray 1: 76 x 127 to 216 x 356 mm; 550-sheet input Tray 2: 105 x 148 to 216 x 356 mm; Optional 550-sheet input Tray 3+: 105 x 148 to 216 x 356 mm

Media types

Paper (bond, colour, letterhead, plain, preprinted, prepunched, recycled, rough), envelopes, labels, cardstock, transparencies, user-defined

Supported media weight

Tray 1: 60 to 200 g/m²; Tray 2+: 60 to 120 g/m²

Power and operating requirements

Power

Input voltage: 200 to 240 VAC, 50 Hz

Power consumption

741.98 watts (printing), 13.72 watts (ready), 2.51 watts (sleep), 0.08 watts (auto-off), 0.08 watts (off) 7

Energy efficiency

• ENERGY STAR® qualified
• EPEAT® Silver
• CECP
• Blue Angel RAL-UZ 205

Operating temperature range

15 to 32.5°C

Operating humidity range

30 to 70% RH

Acoustic power emissions (ready)

4.0 B(A) 6

Acoustic pressure emissions bystander (active, printing)

54 dB(A) 6

Dimensions and weight

Minimum dimensions (W x D x H)

418 x 376 x 481 mm 14

Maximum dimensions (W x D x H)

418 x 639 x 481 mm 14

Weight

15.8 kg

Package dimensions (W x D x H)

564 x 498 x 713 mm

Package weight

22.1 kg
