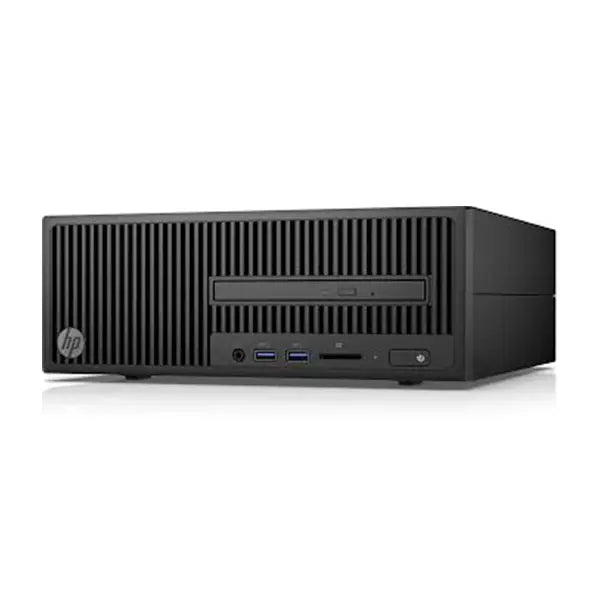

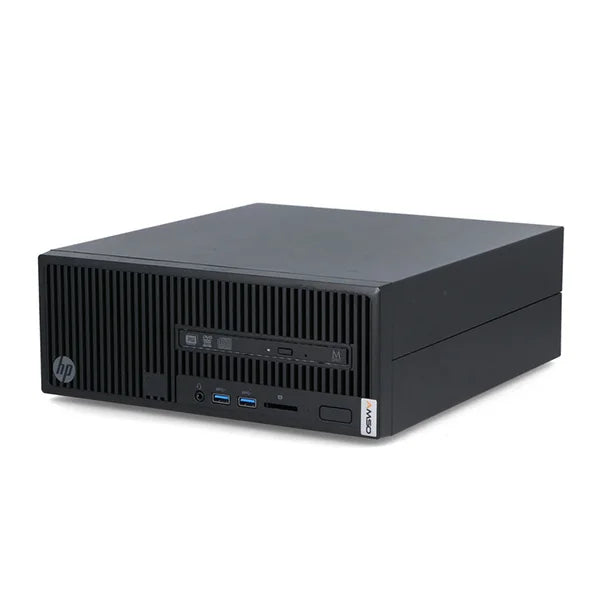

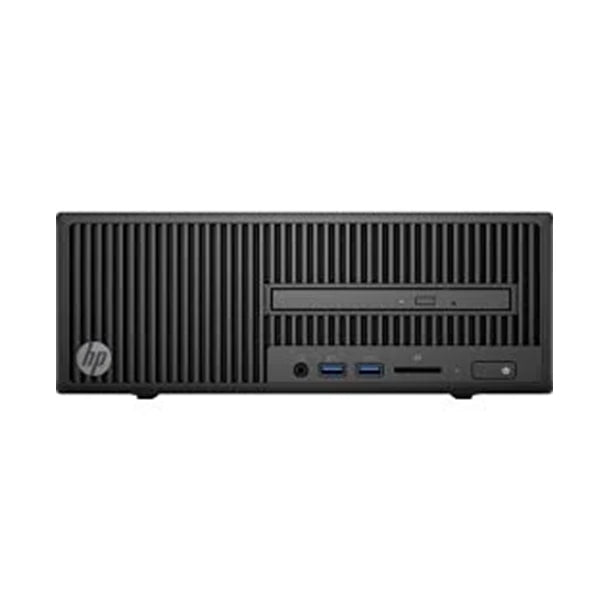

HP 280 G2 Small Form Factor PC

Specification

System features

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
FreeDOS 2.0

Processor family

Intel® Pentium® processor
Intel® Celeron® processor
7th Generation Intel® Core™ i3 processor (i3-7100)
7th Generation Intel® Core™ i5 processor (i5-7500)
7th Generation Intel® Core™ i7 processor (i7-7700)
Intel® Celeron® processor (G3900 is Windows 10 only)
Intel® Celeron® processor (G3930 is Windows 10 only)
Intel® Pentium® processor (G4440 is Windows 10 only)
Intel® Pentium® processor (G4560 is Windows 10 only) 11

Processor

Intel® Celeron® G3900 with Intel® HD Graphics 510 (2.8 GHz, 2 MB cache, 2 cores)
Intel® Celeron® G3930 with Intel® HD Graphics 610 (2.9 GHz, 2 MB cache, 2 cores)
Intel® Core™ i3-6100 with Intel® HD Graphics 530 (3.7 GHz, 3 MB cache, 2 cores)
Intel® Core™ i3-7100 with Intel® HD Graphics 630 (3.9 GHz, 3 MB cache, 2 cores)
Intel® Core™ i5-6500 with Intel® HD Graphics 530 (3.2 GHz base frequency, up to 3.6 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i5-7500 with Intel® HD Graphics 630 (3.4 GHz base frequency, up to 3.8 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i7-7700 with Intel® HD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Pentium® G4400 with Intel® HD Graphics 510 (3.3 GHz, 3 MB cache, 2 cores)
Intel® Pentium® Gold G4560 with Intel® HD Graphics 610 (3.5 GHz, 3 MB cache, 2 cores) 2

Chipset

Intel® H110

Form factor

Small form factor

Memory

Maximum memory

32 GB DDR4-2400 SDRAM
(Transfer rates up to 2400 MT/s. )

Memory Slots

2 DIMM

Storage

Internal drive bays

One 3,5 cm (2.5") HDD; One 8,9 cm (3.5") HDD

External drive bays

One Slim ODD (optional); 1 SD reader

Internal drive

500 GB up to 1 TB SATA (7200 rpm) 4
128 GB SATA SSD 4

Optical drive

Slim SATA DVD-ROM
Slim SATA DVD-Writer 5

Display and graphics

Graphics

Integrated:
Intel® HD GraphicsDiscrete:

NVIDIA® GeForce® GT 730 (2 GB)(Integrated graphics will depend on processor)

Expansion features

Ports

Front:
2 USB 3.0
1 microphone/headphone combo
Back:
6 USB 2.0
1 audio line in
1 audio line out
1 HDMI
1 VGA
1 RJ-45

Expansion slots

1 PCIe x1
1 PCIe x16

Media devices

Audio

HD audio with Realtek ALC3252 codec, combo microphone/headphone jack and 3.5 mm line-out and line-in ports

Communications

Network interface

LANIntegrated Realtek RTL8111HSH-CG GbE
WLANIntel® 3168 802.11ac wireless with PCIe caddy card and Bluetooth®
Intel® 3168 802.11ac wireless with PCIe caddy card 6

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® registered configurations available 9

Power supply

• 180 W, up to 85% efficient, active PFC

Dimensions and weight

Dimensions (W x D x H)

270 x 290 x 100 mm

Weight

3.66 kg
(Configured with 1 HDD and 1 ODD. Exact weight depends on configuration)
