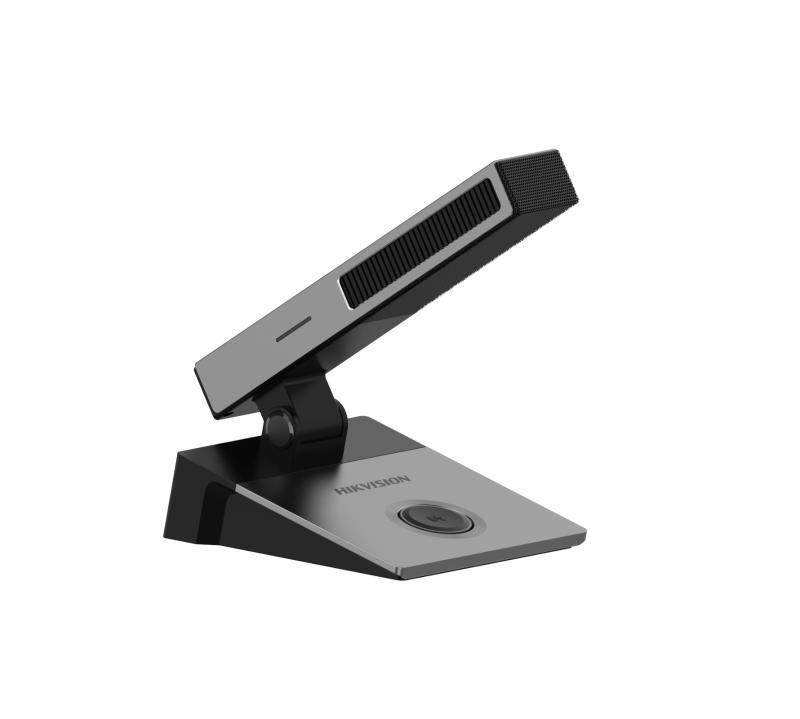

Hikvision Pro Desktop Conference Microphone – DS-QAPMDR

The Hikvision DS-QAPMDR is a desktop conference microphone with a 20 mm condenser capsule and hypercardioid pickup. It picks up voices up to 70 cm away over a 20 Hz to 20 kHz range, and connects by balanced XLR with 48 V phantom power. Procure.ae supplies the Hikvision DS-QAPMDR across the UAE.

The microphone uses a 20 mm single-point condenser capsule with a hypercardioid pattern and high dynamic range. Its specifications include a 78 dB A-weighted signal-to-noise ratio, a 110 dB dynamic range, sensitivity of -32 dB (0 dB = 1 V/Pa at 1 kHz) and a 126 dB SPL maximum. The balanced output has an impedance of 150 Ω and requires 48 V phantom power drawing 10 mA or less. Shielded lines and a built-in anti-spray sponge help reduce interference and spray noise.

The DS-QAPMDR suits meetings, speeches and recitations where the microphone sits on a desk. The square-tube body adjusts for height and angle through 0–45 degrees of elevation. It connects with XLR, and the box includes a 1.5 m XLR cable. The base is not detachable, and the manufacturer's specifications do not state a network connection, so it works with a mixer or audio interface that supplies 48 V phantom power.
