Hikvision Mirror Series 46-inch LCD Video Wall Display – DS-D2046TL-2B
The Hikvision DS-D2046TL-2B is a 46-inch LCD video wall display with a 2.5 mm bezel and 500 nits brightness. It suits control rooms, lobbies and meeting spaces that need a narrow-bezel wall.Its 600 x 400 mm VESA mount and 24-hour operation suit commercial video walls. Procure.ae supplies it in the UAE as an authorised reseller of Hikvision.
The panel has 1920 x 1080 (Full HD) resolution, 500 nits brightness, a 1,200:1 contrast ratio and 178° horizontal and vertical viewing angles. It uses a VA panel with a direct-lit LED backlight and an anti-glare surface with 25% haze. Factory calibration keeps colour and brightness uniform across the screen, and the 8.5 ms response time suits video content. The display accepts 4K signal input and can auto-loop it through HDMI to up to 30 screens. Its metal casing helps prevent radiation and magnetic and electric field interference, and it is designed for 24-hour continuous working.
The DS-D2046TL-2B suits multi-screen video wall installations that need a metal casing and wall-mount or modular brackets. Its ports include VGA, HDMI, DVI, DisplayPort and USB inputs, an HDMI output, and RS232 in and out for control, with an IR remote and receiver in the box. The 600 x 400 mm VESA pattern and 10.5 kg net weight help with planning the wall structure. Procure.ae can advise on mounting and layout when you request a quote, and provides delivery and installation across the UAE.
Key features
Specifications
| Controls | IR remote control, RS232 control |
| Key Features | 4K signal input with auto loop up to 30 screens, three picture modes, factory calibration, direct-lit LED backlight, 2.5 mm bezel, metal casing |
| Model | DS-D2046TL-2B |
| Type | Video Wall Display |
| What's in the Box | LCD display × 1, power cable × 1, network cable × 1, 2 m HDMI cable × 1, screws × 4, remote control × 1, IR receiver × 1, quick start guides × 2, LCD maintenance notice × 1 |
| Backlight | Direct-lit LED |
| Bezel Size | 2.5 mm |
| Brightness | 500 nits |
| Color Depth | 8-bit (16.7 M colours) |
| Color Gamut | 72% NTSC |
| Color Temperature | 10,000 K ± 1,000 K |
| Contrast Ratio | 1,200:1 |
| Panel Technology | VA |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 8.5 ms |
| Screen Size | 46 inch |
| Viewing Angle | 178° horizontal, 178° vertical |
| Duty Cycle | 24-hour continuous operation |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH (non-condensing) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | VGA × 1, HDMI In × 1, DVI × 1, DisplayPort × 1, USB × 1, HDMI Out × 1 |
| Serial Port | RS232 In × 1, RS232 Out × 1 |
| Power Consumption | 200 W (maximum) |
| Standby Power | 0.5 W (maximum) |
| Body Construction | Metal casing |

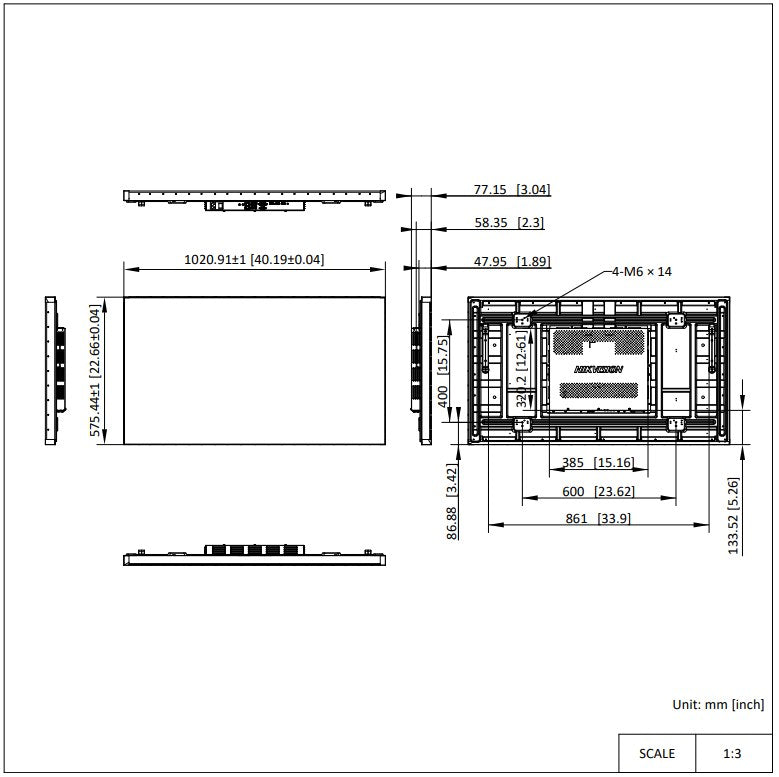

| Dimensions | 1020.91 x 575.44 x 47.95 mm |
| Mounting | Wall mount and modular brackets available |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1159 x 725 x 310 mm |
| Shipping Weight | 15.0 kg |
| Surface Protection | Anti-glare, 25% haze |
| VESA Mount | 600 x 400 mm |
| Weight | 10.5 kg |
