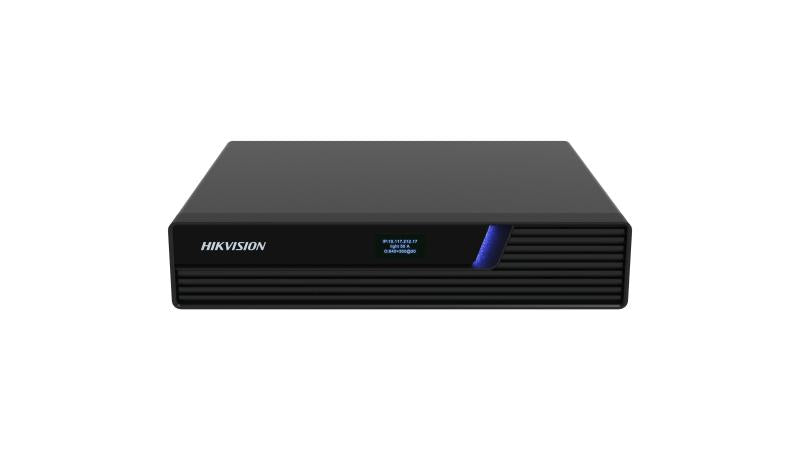

Hikvision Distributed 4K Video Wall Controller Node – DS-C80N-01HO/4K

The Hikvision DS-C80N-01HO/4K is a distributed video wall node with one HDMI 2.0 output at up to 4K 60 Hz. It runs on 802.3at PoE or 110 to 240 V AC power, has a 1000 Mbps Ethernet port and an OLED status screen, and works with centralized controllers in command centers. Procure.ae supplies the DS-C80N-01HO/4K across the UAE.

The DS-C80N-01HO/4K outputs one HDMI 2.0 signal at up to 4096 x 2160 at 60 Hz, including 3840 x 2160 at 60 Hz and 1920 x 1080 at 60 Hz. It uses YUV 4:4:4 for sampling, transmission and processing, for high-quality color restoration. A signal from one input can be copied to several outputs, and a video wall can scale to 320 output nodes. Because each node works independently, one node failure does not affect the rest of the system.

Use the 4K node for 4K 60 Hz displays in command centers and control rooms that need a distributed layout. It works with centralized video wall controllers, multi-functional video centers and decoders, and it supports unicast and multicast protocols. Mount it magnetically (optional), on a flat surface or in a standard rack, since two nodes fit the width of one rack. The 1080p model, DS-C80N-01HO, has an HDMI 1.4 output if 4K is not required.

Resolution

3840 x 2160 (4K UHD)

Type

Video Wall Output Node

Weight

1.09 kg

Key features

4K60 HDMI 2.0 output

One output at up to 4K at 60 Hz, with 3840 x 2160 and 4096 x 2160 supported.

Distributed architecture

No central server is required, and a single node failure does not affect the whole system.

Scalable video walls

Up to 32 video walls and 320 output nodes per wall.

YUV 4:4:4 processing

Image sampling, transmission and processing use YUV 4:4:4 color.

PoE or AC power

Supports 802.3at PoE and 110 to 240 V AC, with dual power supply support.

Half-width design

Two nodes fit the width of one standard rack, with magnetic, planar or rack mounting.

Ethernet and serial control

One 1000 Mbps Ethernet port, plus RS-232, RS-485 and a debugging console port.

OLED status display

Each node shows its device configuration and running status.

Specifications

General
Key Features	Distributed design with no central server, HDMI 2.0 output up to 4K60, up to 32 video walls and 320 nodes per wall, YUV 4:4:4 processing, unicast and multicast support, half-width rack design
Model	DS-C80N-01HO/4K
Type	Video Wall Output Node
What's in the Box	Node, regulatory and safety manual, power cord, mounting bracket, connecting bracket

Display
Display	OLED 128 x 64 dot-matrix
Refresh Rate	60 Hz
Resolution	3840 x 2160 (4K UHD)

Audio
Audio In	3.5 mm audio jack × 1
Audio Out	3.5 mm audio jack × 1

Connectivity
Ethernet	1000 Mbps × 1
HDMI Outputs	1 × HDMI 2.0 (max 4K60)
Input Voltage	110–240 V AC, 0.7 A
PoE	802.3at
Ports	HDMI Out × 1, Ethernet × 1, RS-232 × 1, RS-485 × 1, USB 2.0 × 1, Console × 1, Audio In × 1, Audio Out × 1
Serial Port	RS-232 × 1, RS-485 × 1 (Phoenix terminal)
USB Ports	USB 2.0 × 1

Power
Power Consumption	30 W (maximum)

Physical
Dimensions	210 x 42 x 180 mm
Mounting	Magnetic (optional), planar, rack
Operating Humidity	0% to 95% RH
Operating Temperature	0 to 50 °C
Weight	1.09 kg
