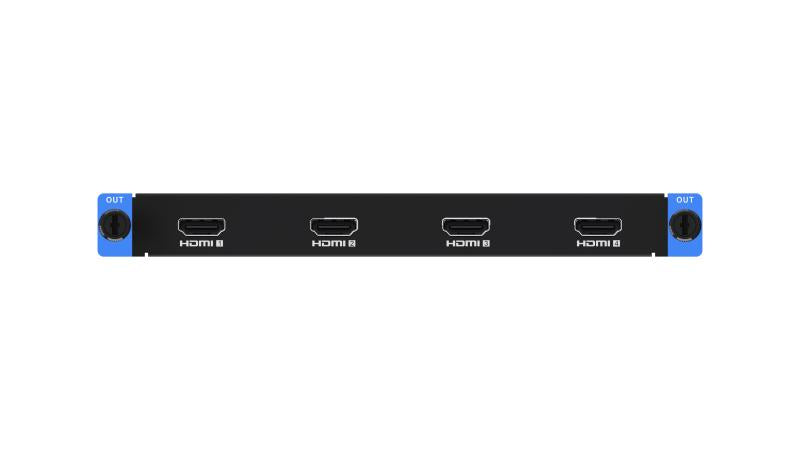

Hikvision C66S 4-Channel HDMI Output Board – DS-C66S-04HO

The Hikvision DS-C66S-04HO is a 4-channel HDMI output board for the C66S video wall controller range. It drives four HDMI 1.4 outputs at up to 1080P, supports LED screens and custom output resolutions, and carries composite audio. Procure.ae supplies the DS-C66S-04HO in the UAE.

The board provides four HDMI 1.4 outputs with a maximum output resolution of 1080P. Listed output modes include 1920 x 1200 at 60 Hz, 1920 x 1080 at 60 Hz, 1680 x 1050 at 60 Hz, 1280 x 1024 at 60 Hz and 1024 x 768 at 60 Hz. The board supports LED screens, custom resolution output and 60 Hz loading output. Its 2.6 MP loading mode covers widths from 144 to 3840 pixels and heights from 144 to 2160 pixels. Four in-band audio outputs carry HDMI composite audio with the video.

Install the output board in a C66S chassis alongside input boards, so the controller can route signals to several HDMI outputs. The DS-C66S-S12 12-slot chassis takes up to six output boards, and the DS-C66S-S6 6-slot chassis supports mixed input and output boards. Chassis control runs over 1000 Mbps Ethernet with SDK, RTSP and ONVIF protocols. Unlike the DS-C66S-04HI and DS-C66S-04SDI/4K input boards, this model is for outputs only.
