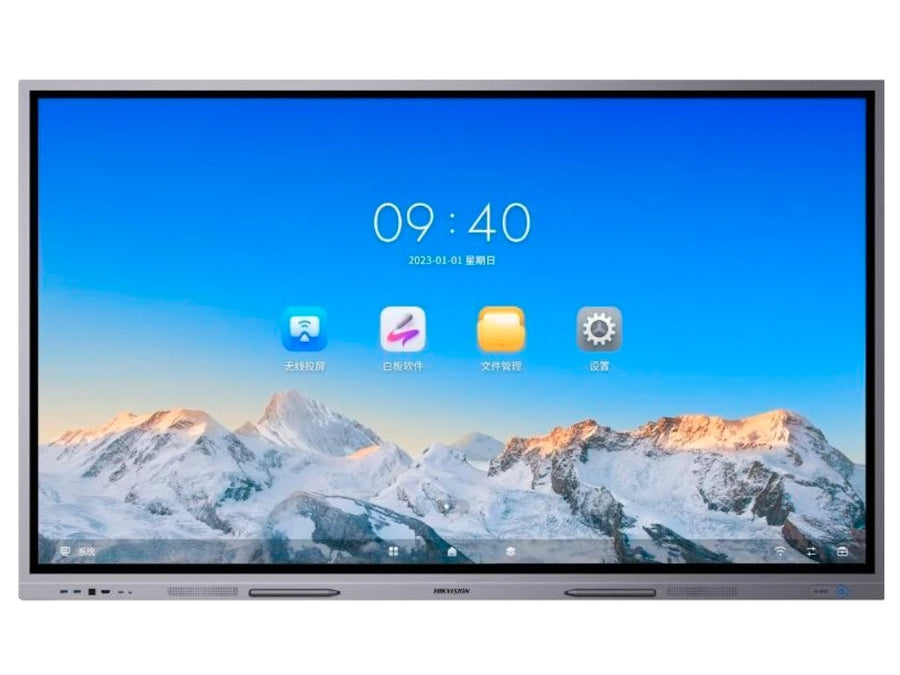

Hikvision 86” Ultra HD Interactive LED Panel – DS-D5C86RB/B2L
The Hikvision 86” Ultra HD Interactive LED Panel – DS-D5C86RB/B2L is a interactive flat panel available in the UAE from Procure.ae.
Experience the next level of interactive display technology with the Hikvision 86” Ultra HD Interactive LED Panel – DS-D5C86RB/B2L . Designed for seamless collaboration in educational and business environments , this advanced 86-inch touch screen panel delivers breathtaking 4K Ultra HD resolution for crystal-clear visuals and engaging presentations. The intuitive multi-touch interface enhances teamwork and streamlines meetings , making it an ideal solution for classrooms , conference rooms , and digital signage. With robust connectivity, an integrated Android system, and superior audio-visual.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key features
Specifications
| Key Features | NFC card reader, Sensors: Ambient light, Humidity, Temperature |
| What's in the Box | Wall mount bracket, Hook, User manual, Touch writing pen, Packing list, Remote control, Screen cleaning cloth, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable |
| Backlight | Direct LED |
| Brightness | 480 nits |
| Color Depth | 10-bit (1.07 billion colours) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Accuracy | ±0.5 mm |
| Touch Points | 50-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | 2 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° (H) / 178° (V) |
| Graphics | Arm Mali-G610 MC4 |
| Operating System | Android 14 |
| Processor | ARM 4x Cortex-A76 + 4x Cortex-A55, 2.4 GHz + 1.8 GHz |
| RAM | 8 GB |
| Storage | 128 GB |
| Audio In | Audio in × 1 |
| Audio Out | Audio out × 1 |
| Speaker Output | 2 × 20 W + 25 W |
| Speaker Type | Built-in |
| Bluetooth | Bluetooth 5.4 |
| Ethernet | RJ45 (Gigabit) × 2 |
| HDMI Inputs | HDMI In (HDMI 2.0) × 3 |
| HDMI Outputs | HDMI Out × 1 |
| OPS Slot | Optional |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | Touch USB 3.0 × 1, Touch USB 2.0 × 2 |
| USB Ports | USB 3.0 × 4, USB 2.0 × 1 |
| USB-C Ports | USB-C (USB 2.0, DP 1.2 in, 100 W charging) |
| VGA Input | VGA × 1 (Rear) |
| Wi-Fi | Wi-Fi 6 (802.11ax), 2.4/5 GHz |
| Power Consumption | < 274 W |
| Standby Power | 0.5 W |
| Dimensions | 1960.4 x 1158.2 x 82.5 mm |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0°C to 40°C |
| Shipping Dimensions | 2157 x 1345 x 223 mm |
| Surface Protection | Anti-glare smooth glass |
| VESA Mount | 800 x 600 mm |
| Weight | 0.5 kg |
