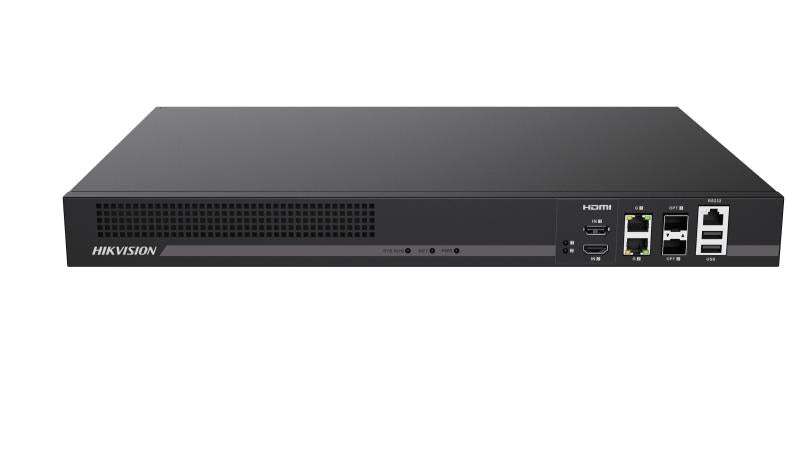

Hikvision 4K Video Wall Decoder – DS-6908UDI(C)

The Hikvision DS-6908UDI(C) is a 4K video wall decoder with eight HDMI 1.4 outputs and two HDMI inputs. It decodes 64 channels of 1080p in real time with H.264 and H.265, and it supports a video wall scale of up to 8. It suits large control rooms and multi-screen monitoring walls. Procure.ae supplies it in the UAE.

The DS-6908UDI(C) drives eight HDMI 1.4 outputs, each up to 4K (3840 × 2160 at 30 Hz), plus two CVBS BNC outputs. It decodes 64 channels of 1080p or 128 channels of 720p in real time in H.264 and H.265, and it can show 64 channels of 2 MP video on the wall at the same time. Outputs 1 to 4 and 5 to 8 form two groups that share decoding capacity. Eight audio outputs carry embedded HDMI audio or independent DB15-to-BNC audio.

The decoder accepts network cameras, NVRs and other network sources, plus HDMI input from computers and video conference terminals. Its two HDMI inputs take 2 channels of 1080p@50/60 Hz or 1 channel of 4K@30 Hz, and it can encode one 4K@30 Hz or two 1080p@60 Hz channels. Connectivity includes two RJ-45 Ethernet ports, two optical 100BASE-FX/1000BASE-X ports, RS-232, RS-485 and USB 2.0. Compared with the DS-6904UDI(C), this model adds four outputs and doubles the 1080p decoding channels.
