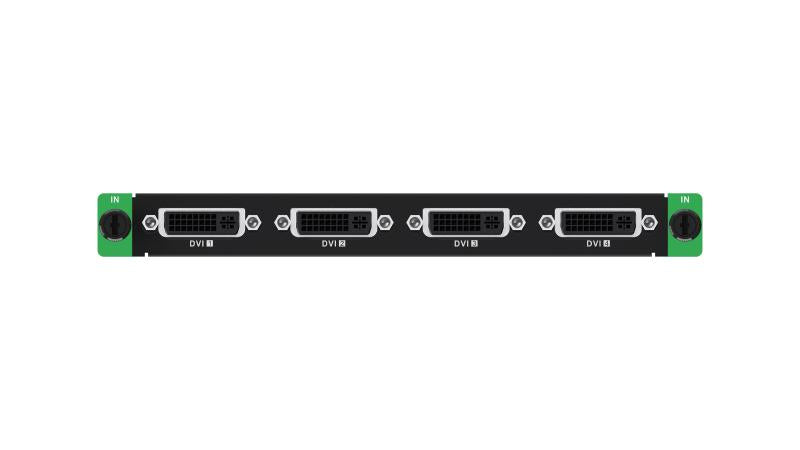

Hikvision 4-Channel DVI Input Board for Video Walls – DS-C66S-04DI

The Hikvision DS-C66S-04DI is a four-channel DVI-D input board for Hikvision video wall controllers, accepting four video sources up to 1920 x 1080 at 60 Hz. It supports HDCP 1.4 and custom input resolutions from 800 to 2560 pixels wide. Procure.ae supplies the DS-C66S-04DI across the UAE.

The DS-C66S-04DI is an input board with four DVI-D video inputs and a maximum input resolution of 1080p. Supported modes include 1920 x 1200, 1920 x 1080 and 1280 x 720 at 50 Hz and 60 Hz, plus 1600 x 1200, 1680 x 1050 and 1024 x 768 at 60 Hz. Custom input resolutions cover widths from 800 to 2560 pixels and heights from 600 to 2560 pixels. The board supports HDCP 1.4, with backward compatibility to HDCP 1.3.

Use the DS-C66S-04DI when video sources are DVI, such as computers with DVI-D output. For 4K sources, the DS-C66S-02HI/4K and DS-C66S-02DPI/4K input boards in the same range are the alternatives. The matching DVI output board is the DS-C66S-04DO. Procure.ae can advise on board selection for your video wall project, including the chassis and source devices.
