Hikvision 32-Output Multi-Functional Video Center – DS-6932UDI-U(D)

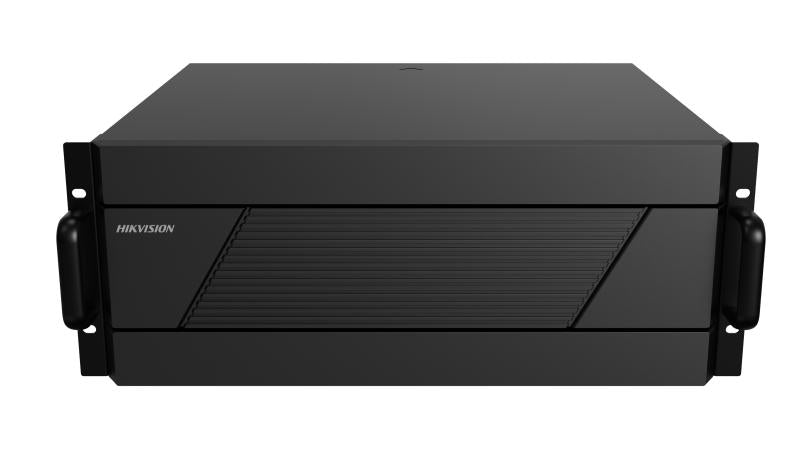

The Hikvision DS-6932UDI-U(D) is a 4U multi-functional video center that drives video walls and decodes network camera streams. It provides 32 HDMI 1.4 outputs, 4K maximum output and up to 576 decoding channels at 720p. It suits small to medium-scale surveillance systems. Procure.ae supplies the DS-6932UDI-U(D) across the UAE, with delivery and installation.

The DS-6932UDI-U(D) drives up to 8 video walls with a video wall scale of up to 32 outputs and 576 layers per device. Window division of 1, 4, 6, 8, 9, 16, 25 or 36 can be set on each output port, and the unit supports up to 128 scenes with customisable video wall layouts. Four HDMI 1.4 inputs accept sources, with 4K input on the odd-numbered ports only. Video encodes in H.265 by default or H.264, and decoding covers 288 channels at 1080p or 576 channels at 720p. Live view of video walls runs on four channels, and up to 12 subtitles are supported, with a maximum of four per video wall.

The unit mounts in a 4U rack chassis and runs on two 100 to 240 V AC power inputs, drawing 550 W. It is managed through a PC client or a web client that requires Chrome 45 or later, and it works with devices accessed through the ONVIF protocol. Compared with the 24-output DS-6924UDI-U(D), this model has 32 outputs and decodes 576 channels at 720p rather than 432.
