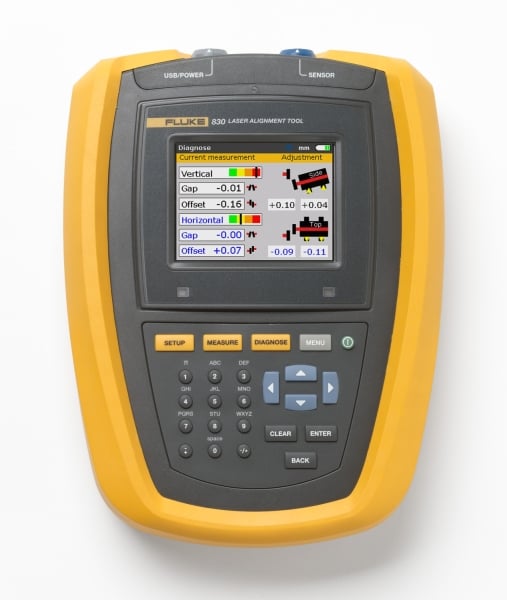

Fluke 830 Laser Shaft Alignment Tool

The Fluke 830 Laser Shaft Alignment Tool is a industrial tool available in the UAE from Procure.ae.

It's a known fact - all rotating machinery is susceptible to misalignment. If you're still using rulers and dial indicators to ensure your rotating machinery is properly aligned, you could be losing thousands of dollars per year in replacement bearing costs, hours of unnecessary repair time, and crippling unplanned downtime, not to mention taking years off your machine's useful life.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Weight

0.3 kg

Key features

Single laser measurement technology means reduced errors from backlash resulting in better data accuracy

Intuitive guided user interface quickly and easily complete machine alignments

Compass measurement mode enables flexible, reliable and repeatable measurements using an activated electronic inclinometer

Dynamic machine tolerance check provides continuous evaluation of alignment adjustments so you know when your machine in acceptable range

Unique extend mode handles gross misalignment by virtually increasing laser detector size

Data protection ensures your data is there when you need it with auto save and resume capability

Specifications

Display
Display	TFT LCD, 320 x 240

Performance
Accuracy	Alignment measurement accuracy >98%
Storage	64 MB RAM, 64 MB flash

Connectivity
Connectivity	Integrated wireless (Class 1, 100 mW), USB, RS-232

Power
Battery	Li-polymer, 7.4 V
Battery Life	17 hours typical mixed use

Physical
Color	Black
Dimensions	220 x 165 x 45 mm (computer unit)
Operating Temperature	-10°C to 50°C
Weight	0.3 kg

Compliance
Country of Origin	United States
IP Rating	IP65 (computer unit), IP67 (sensor)
