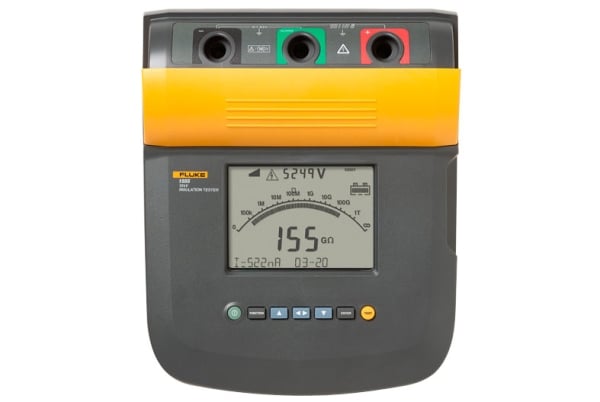

Fluke 1555 Insulation Resistance Tester (10kV)

  • SKU: Fluke-1555

Actual Stock & Price Can Be Confirmed After Placing the Order.

PRODUCT OVERVIEW The Fluke 1555 insulation resistance tester offers digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.Fluke insulation testers can now conduct the entire range of test... See More

  • Incl. Vat: AED. 24,035 Excl. Tax: AED. 22890
Whatsapp Us
TELEPHONE (+971) 454 65041
WHATSAPP (+971) 454 65041
FREE SHIPPING All orders over AED1999/-

PRODUCT OVERVIEW

The Fluke 1555 insulation resistance tester offers digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 is the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur.

  • Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

Product Name: Fluke 1555 Insulation Resistance Tester (10kV)

Weight: 1.68 Kg

Battery: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12

Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Certificates: IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III IEC 61557-1, IEC 61557-2

Dimensions (WxHxD) mm: 269 x 277 x 160 mm

Manufacturer: Fluke

Country of Origin: United States

No datasheet available.
