ELO · 22-inch I-Series 5 Steel for Android · Digital Signage

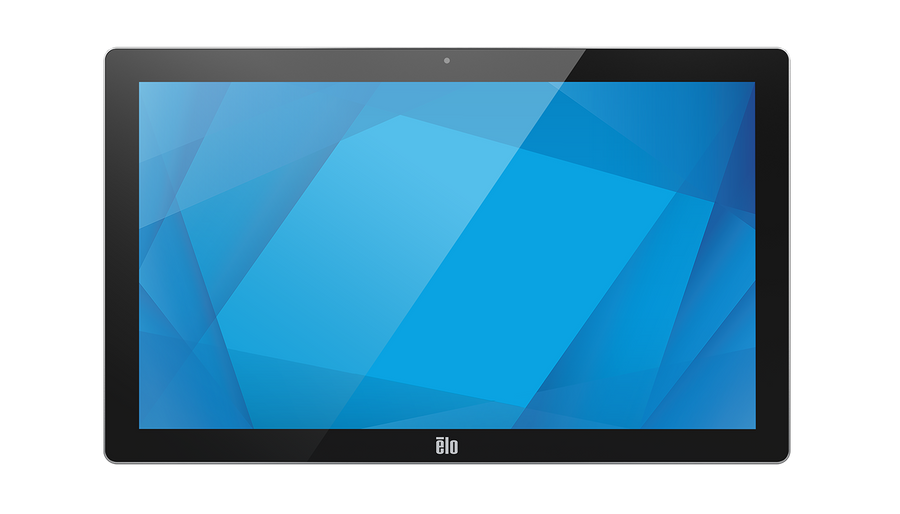

Elo I-Series 5 Steel 22-inch Android Signage Media Player – E176640

Elo I-Series 5 Steel 22-inch Android Signage Media Player – E176640

The Elo I-Series 5 Steel 22-inch is a stainless-steel interactive signage media player running Android 14, with a 10-point PCAP touchscreen. The manufacturer designs it for industrial environments and commercial kitchens, with IP65 front-side protection and an optional PoE connection. Procure.ae supplies the Elo I-Series 5 Steel in the UAE.

The I-Series 5 Steel uses a Qualcomm QCS6490 processor with 8 GB RAM and 64 GB storage. Its active matrix LCD has 1920 x 1080 Full HD resolution at 60 Hz, 250 nits typical brightness and a 1,000:1 contrast ratio. The PCAP touch layer supports 10 simultaneous touches. Two built-in digital microphones and an 8 MP autofocus webcam support video calls, and two 1.5 W speakers provide audio. Wi-Fi covers 802.11a/b/g/n/ac/ax with Bluetooth 5.2.

Android 14 with Google Play Services lets the unit run Android-based signage and touch applications. Gigabit Ethernet with optional PoE up to 51 W covers network and power on one cable. The USB-C output supports up to 15 W with the standard 65 W power brick and up to 27 W with the optional 90 W brick. The unit mounts on VESA 75 mm and 100 mm patterns, and the manufacturer lists floor and pole mount accessories for it.

Screen Size
21.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
250 nits
Touch Technology
PCAP
Type
Interactive Signage Media Player
Weight
5.2 kg

Key features

01
Stainless steel chassis
stainless-steel enclosure with IP65 front-side and IP54 back-side ingress protection.
02
Android 14 platform
Android 14 with Google Play Services on a Qualcomm QCS6490 processor, 8 GB RAM and 64 GB storage.
03
10-point touch
PCAP TouchPro projected capacitive touchscreen supporting 10 simultaneous touches.
04
Full HD display
21.5-inch 1920 x 1080 LCD at 60 Hz with 250 nits typical brightness.
05
Built-in camera and mics
an 8 MP autofocus webcam and two built-in digital microphones.
06
Power over Ethernet
Gigabit Ethernet with optional PoE up to 51 W on PoE models.
07
Wireless connectivity
802.11a/b/g/n/ac/ax Wi-Fi and Bluetooth 5.2.
08
VESA mounting
VESA 75 mm and 100 mm mounting options.

Specifications

General
Key FeaturesStainless-steel chassis, Android 14, 10-point PCAP touch, PoE option up to 51 W, IP65 front, 8 MP camera, 2 digital microphones, VESA 75 and 100 mm
Model22-inch I-Series 5 Steel for Android
TypeInteractive Signage Media Player
Display
Aspect Ratio16:9
Brightness250 nits
Camera8 MP, autofocus
Contrast Ratio1,000:1
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time14 ms
Screen Size21.5 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (horizontal and vertical)
Performance
Operating SystemAndroid 14 with Google Play Services
ProcessorQualcomm QCS6490
RAM8 GB
Storage64 GB
Audio
Microphone2 built-in digital microphones
Speaker Output2 × 1.5 W
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC, 50/60 Hz
PoEUp to 51 W (PoE models)
PortsUSB-A 3.0 × 1, RJ45 Gigabit Ethernet × 1, USB-C output × 1, DC input × 1
Wi-Fi802.11a/b/g/n/ac/ax
Power
Power Consumption15.2 W (typical, on)
Physical
ColorStainless steel
Dimensions533 x 324 x 38.7 mm
Operating Humidity20% to 80% RH
Operating Temperature0 to 45 °C
VESA Mount75 x 75 mm and 100 x 100 mm
Weight5.2 kg
Compliance
CertificationsUL/cUL, FCC, IC, CE, CB, VCCI, MIC, RCM
IP RatingIP65 (front), IP54 (back)
Warranty2 years
